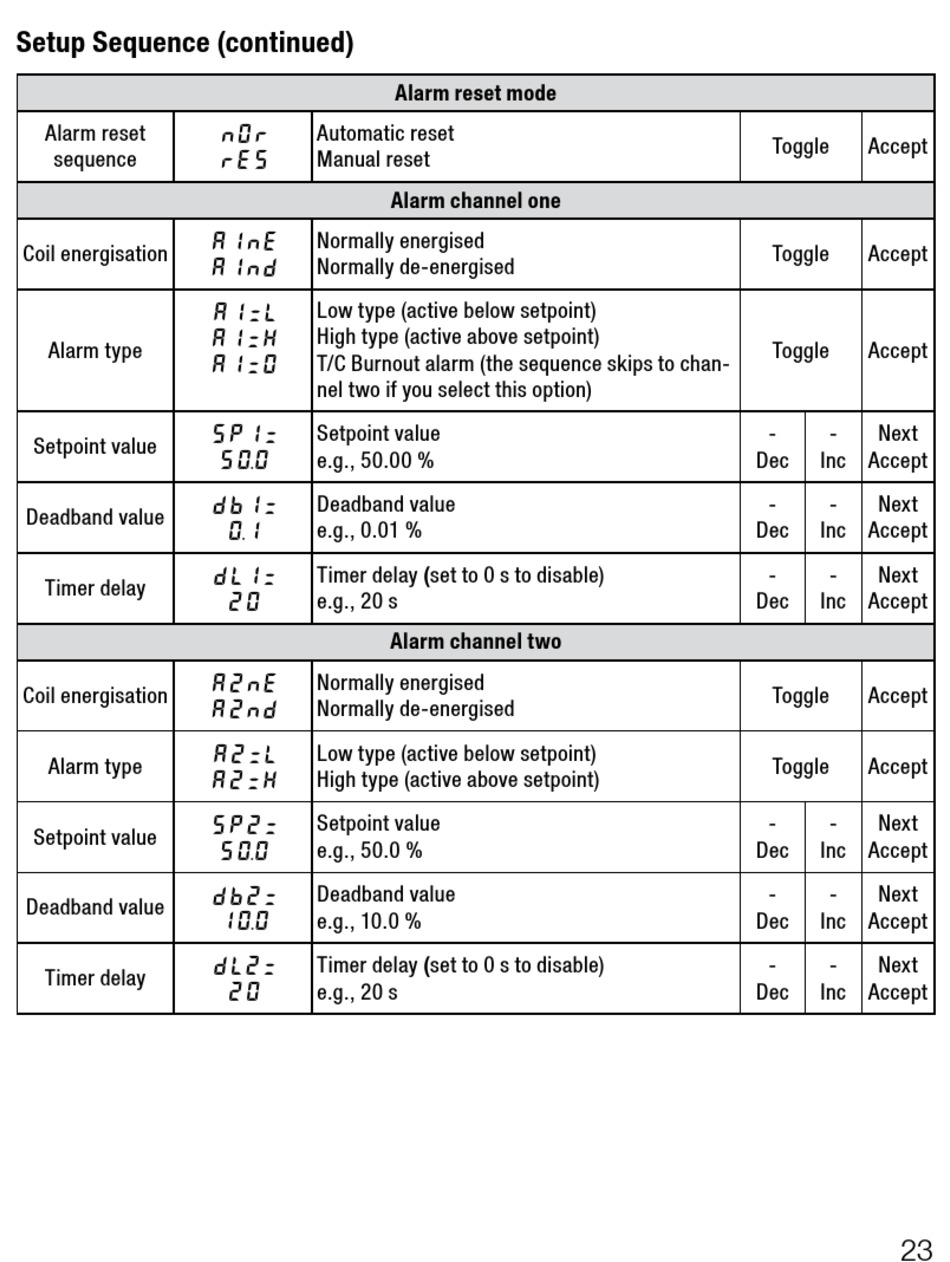

SetupSequence(continued)
Alarm reset
sequence
Coil energisation
Alarm type
Setpoint value
Deadband value
Timer delay
Coil energisation
Alarm type
Setpoint value
Deadband value
Timer delay
Automatic reset
nOr
Manual reset
rES
Normally energised
A1nE
Normally de-energised
A1nd
Low type (active below setpoint)
A1=L
High type (active above setpoint)
A1=H
T/C Burnout alarm (the sequence skips to chan-
A1=0
nel two if you select this option)
Setpoint value
SP1=
e.g., 50.00 %
50. 0
Deadband value
db1=
e.g., 0.01 %
0. 1
Timer delay (set to 0 s to disable)
dL1=
e.g., 20 s
20
Normally energised
A2nE
Normally de-energised
A2nd
Low type (active below setpoint)
A2=L
High type (active above setpoint)
A2=H
Setpoint value
SP2=
e.g., 50.0 %
50. 0
Deadband value
db2=
e.g., 10.0 %
10. 0
Timer delay (set to 0 s to disable)
dL2=
e.g., 20 s
20
Alarmresetmode
Alarmchannelone
Alarmchanneltwo
Toggle Accept
Toggle Accept
Toggle Accept
- - Next
Dec Inc Accept
- - Next
Dec Inc Accept
- - Next
Dec Inc Accept
Toggle Accept
Toggle Accept
- - Next
Dec Inc Accept
- - Next
Dec Inc Accept
- - Next
Dec Inc Accept
