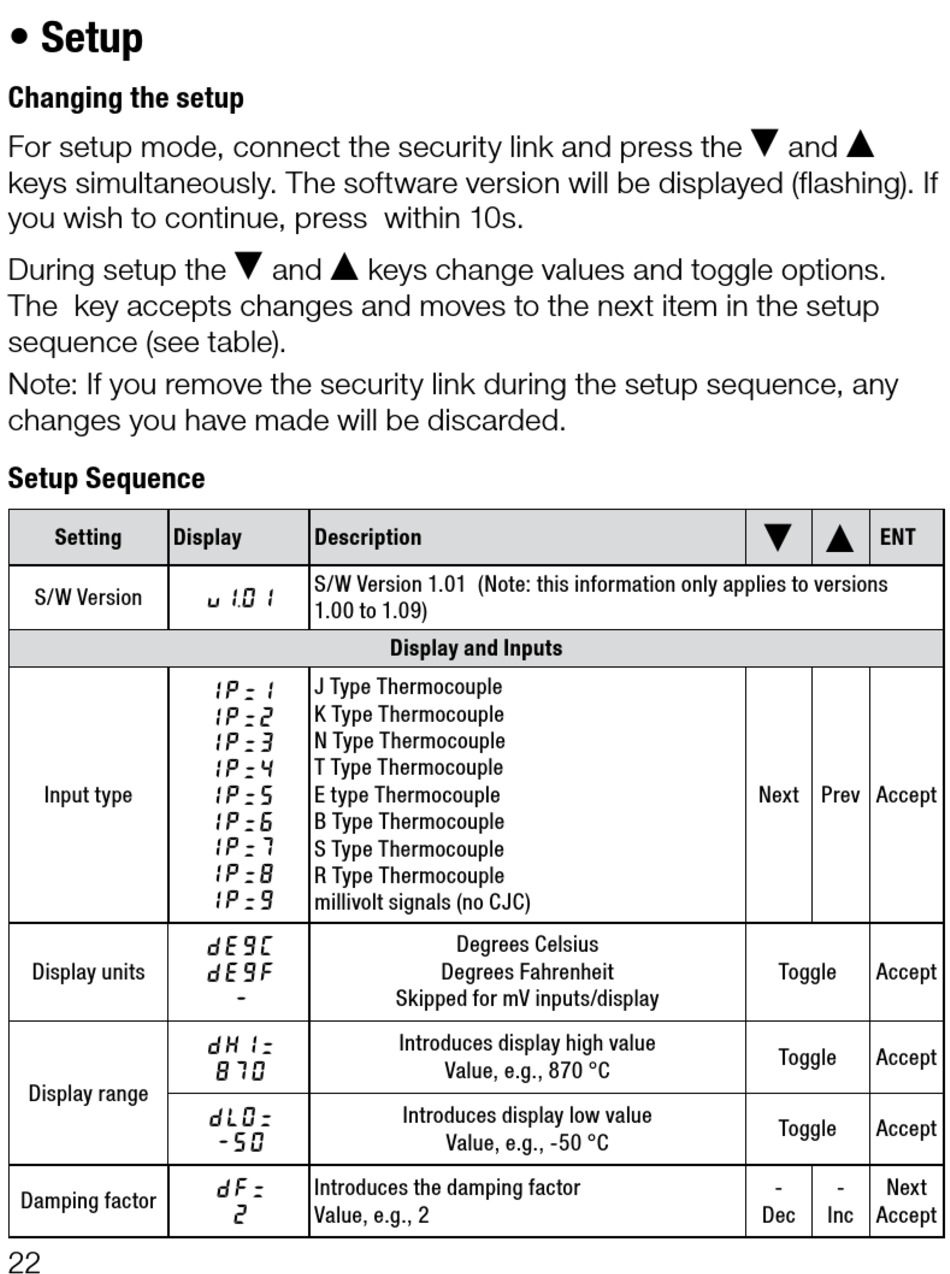

•Setup
Changingthesetup
For setup mode, connect the security link and press the
keys simultaneously. The software version will be displayed (flashing). If
you wish to continue, press within 10s.
During setup the
The key accepts changes and moves to the next item in the setup
sequence (see table).
Note: If you remove the security link during the setup sequence, any
changes you have made will be discarded.

SetupSequence

Setting Display
S/W Version
Input type
Display units
Display range
Damping factor
22
Å ì
and keys change values and toggle options.
Description
S/W Version 1.01 (Note: this information only applies to versions
v1. 0 1
1.00 to 1.09)
J Type Thermocouple
IP=1
K Type Thermocouple
IP=2
N Type Thermocouple
IP=3
T Type Thermocouple
IP=4
E type Thermocouple
IP=5
B Type Thermocouple
IP=6
S Type Thermocouple
IP=7
IP=8 R Type Thermocouple
IP=9 millivolt signals (no CJC)
dEgC
dEgF
-
dHI=
870
dLO=
-50
Introduces the damping factor
dF=
Value, e.g., 2
2
DisplayandInputs
Degrees Celsius
Degrees Fahrenheit
Skipped for mV inputs/display
Introduces display high value
Value, e.g., 870 °C
Introduces display low value
Value, e.g., -50 °C
Å and ì
Å ì ENT
Next Prev Accept
Toggle Accept
Toggle Accept
Toggle Accept
- - Next
Dec Inc Accept
