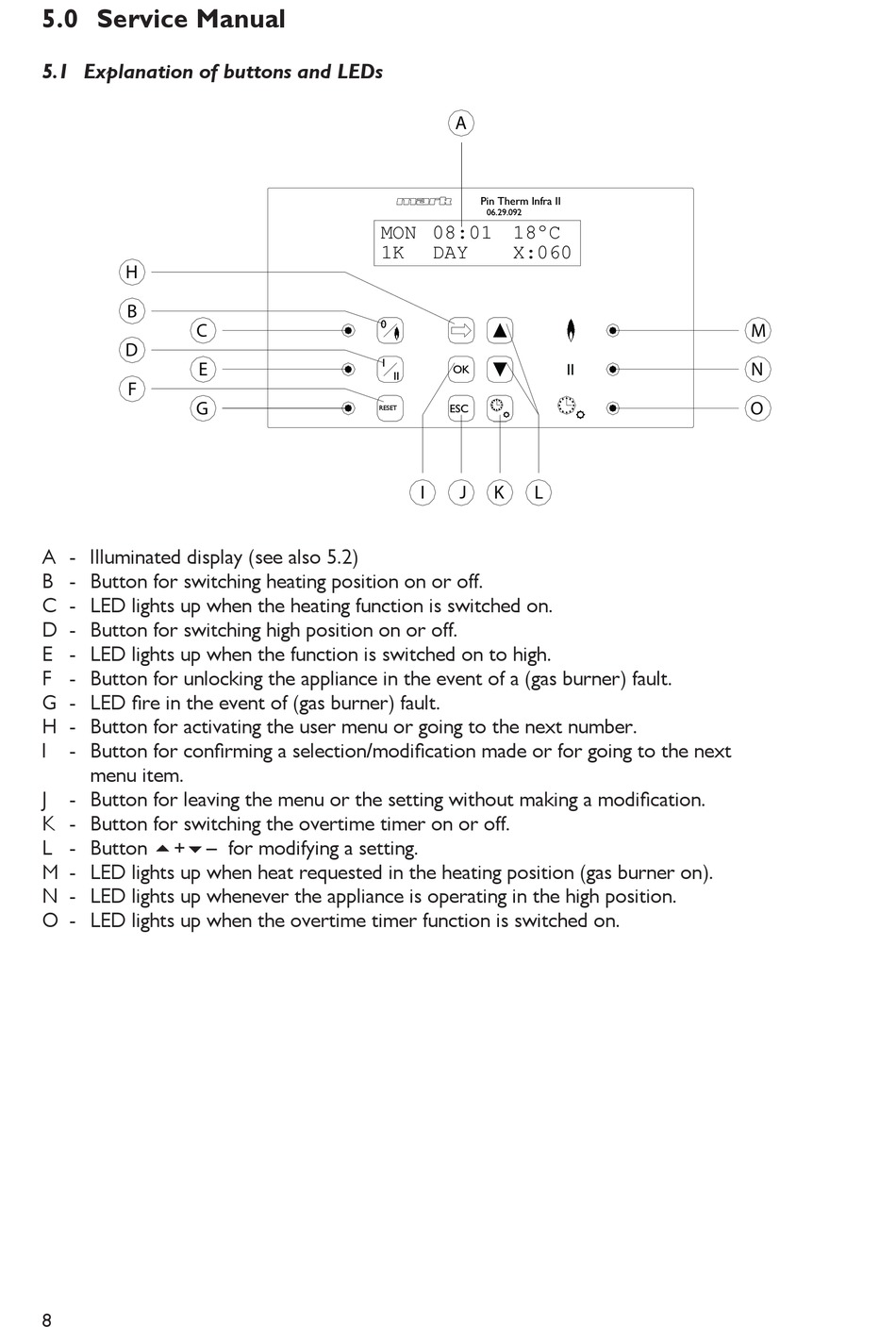

5.0 Service Manual

5.1 Explanation of buttons and LEDs
H
B
C
D
E
F
G
A - Illuminated display (see also 5.2)
B - Button for switching heating position on or off.
C - LED lights up when the heating function is switched on.
D - Button for switching high position on or off.
E - LED lights up when the function is switched on to high.
F - Button for unlocking the appliance in the event of a (gas burner) fault.
G - LED fire in the event of (gas burner) fault.
H - Button for activating the user menu or going to the next number.
I - Button for confirming a selection/modification made or for going to the next
menu item.
J - Button for leaving the menu or the setting without making a modification.
K - Button for switching the overtime timer on or off.
L - Button + – for modifying a setting.
M - LED lights up when heat requested in the heating position (gas burner on).
N - LED lights up whenever the appliance is operating in the high position.
O - LED lights up when the overtime timer function is switched on.
