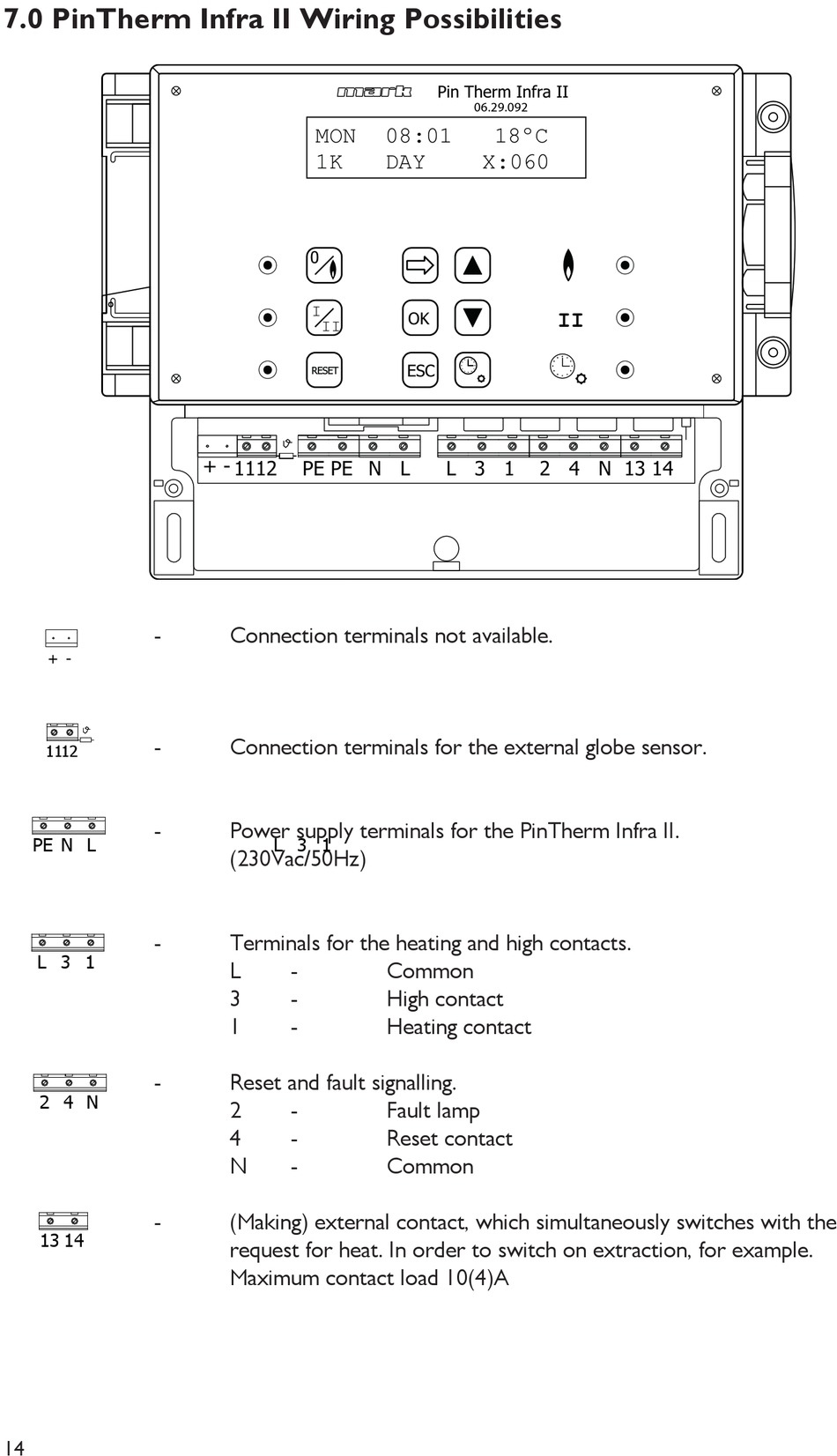

7.0 PinTherm Infra II Wiring Possibilities

 
  
  
 

  
 

  
  
  
  
 
  
 

14

MON
1K
0
  
I


RESET
  
  
+ - 1112
 
PE PE N L




  


- Connection terminals not available.
  
          

- Connection terminals for the external globe sensor.
  
 
- Power supply terminals for the PinTherm Infra II.
  
(230Vac/50Hz)
 
- Terminals for the heating and high contacts.
  
L -
3 -
1 -

- Reset and fault signalling.
 
2 -
4 -
N -
- (Making) external contact, which simultaneously switches with the

request for heat. In order to switch on extraction, for example.

Maximum contact load 10(4)A
Pin Therm Infra II
06.29.092
08:01 18ºC
DAY X:060
  
OK
II
ESC
  
L 3 1

 
  
  
  
 
Common
High contact
Heating contact
Fault lamp
Reset contact
Common


 
II
  
2 4 N 13 14
  
 
  
 
  
 



  
  
  
  
  
  
 


  
 






 



 

