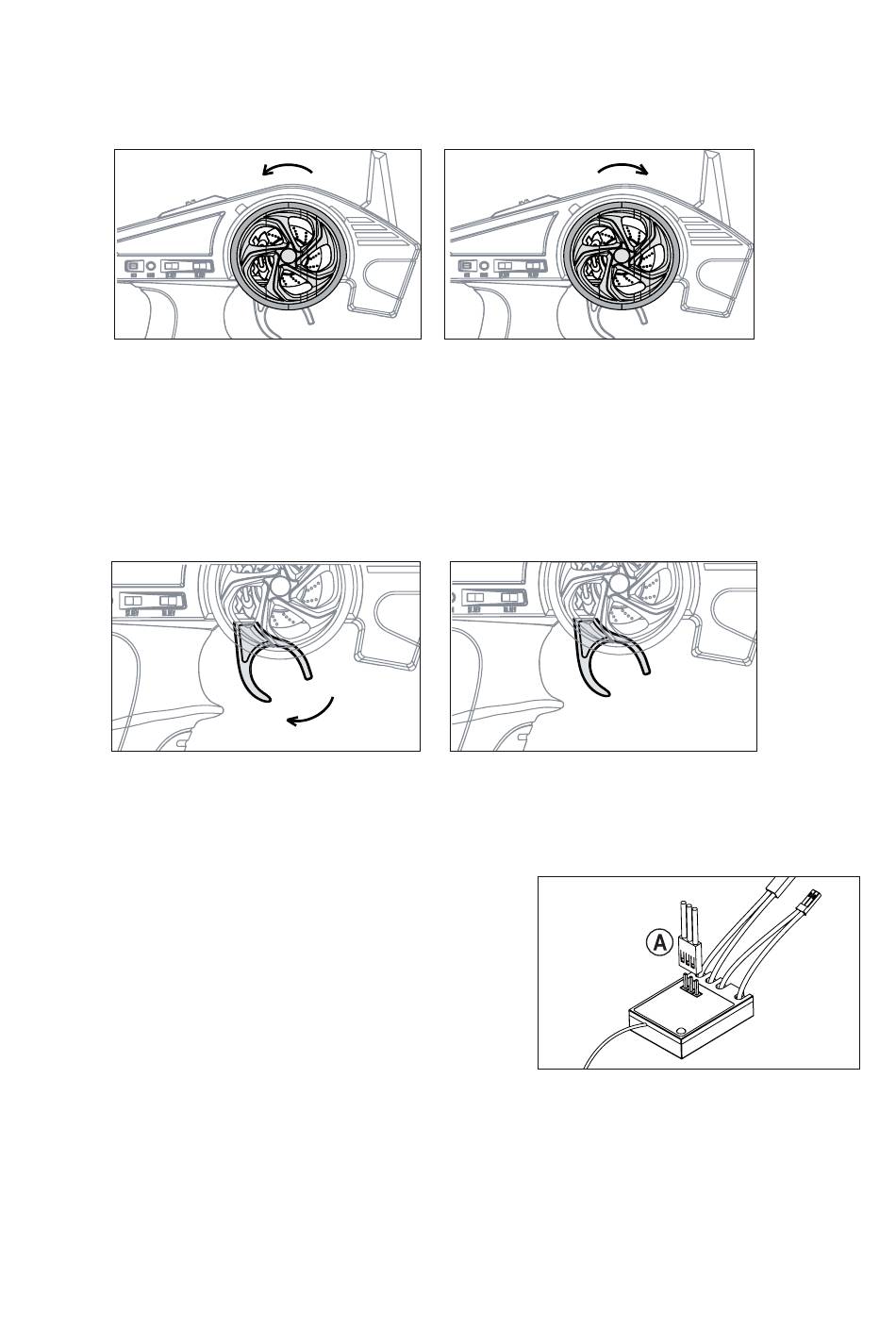

Move the steering wheel to the left (anticlockwise, see fig. 4). The rear edge of the rudder (viewed from behind) should
move to the left.
Move the steering wheel to the right (clockwise, see fig. 4). The rear edge of the rudder (viewed from behind) should
move to the right.
Check the forward throttle. Move the throttle on the remote control (see fig. 5) to adjust the speed of the ship. The more
you pull the trigger towards the handle, the faster the propeller will spin and the faster the boat will move. The propeller
rotates in an anticlockwise direction (when viewed from behind). The motor is off when the lever is the central position.
It is not possible to reverse the boat, as this would cause water to enter the hull via the shaft and the water cooling
system would not work.
c) Speed controller
The speed controller is built into the receiver. It is not possible to config-
ure or program the speed controller.
If the speed controller does not receive a signal from the receiver, or
the signal is weak, the motor will switch off completely and the receiver
LED will start to flash.
The steering servo connector is shown in figure 6. It can only be insert-
ed into the receiver in two positions. The servo connector is plugged in
correctly when the brown (or black) cable is inserted into the "-" socket
(indicated on the receiver).
Figure 4
Figure 5
Figure 6
41
