5.5

Replacing air filter

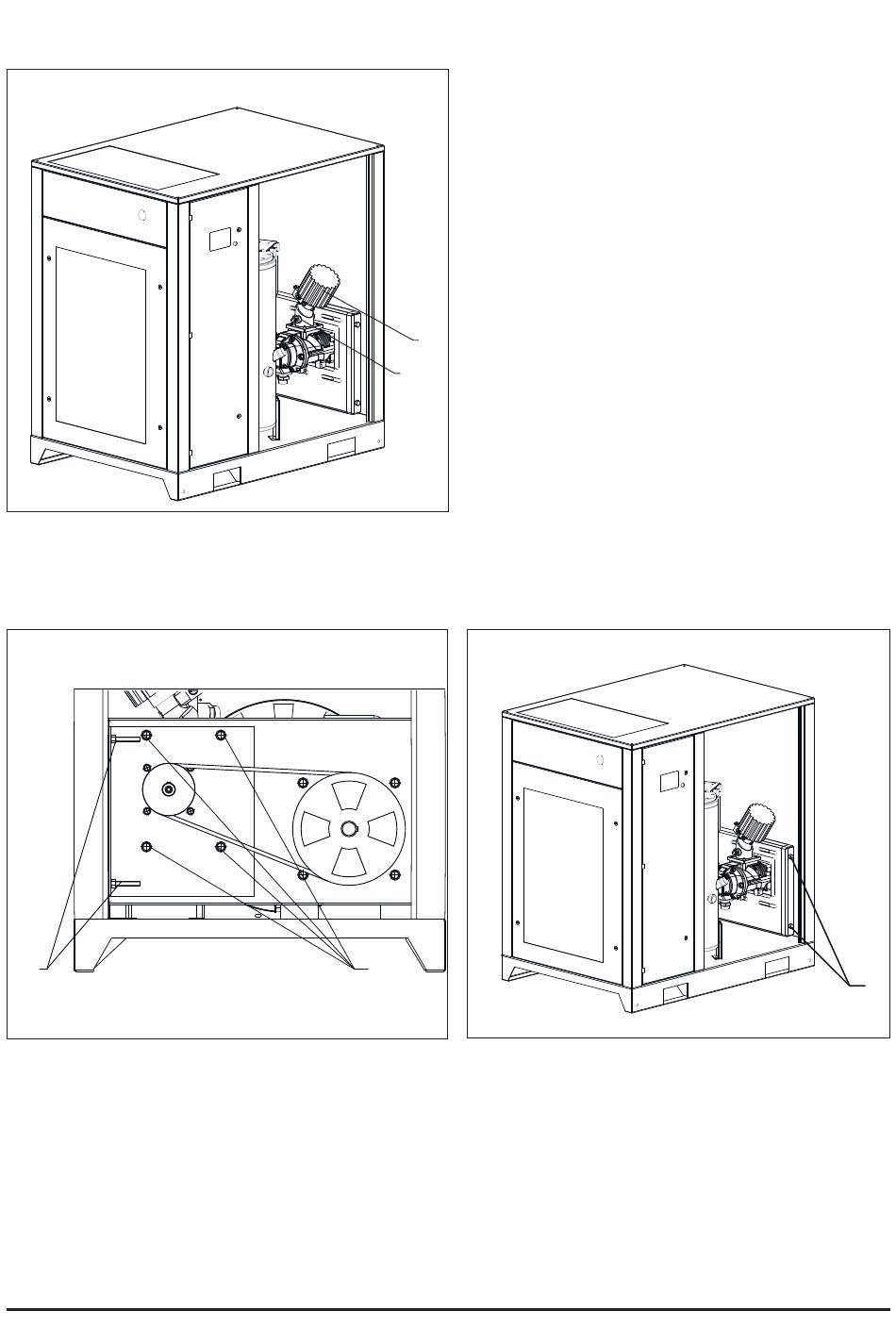

Fig. 5.5 Air filter replacing
5.6

Changing drive belt

1
Fig. 5.6 Changing drive belt
Open the front and right side panel, loosen the 4 screws (3) securing the bracket of the air
end by turning them 2 revolutions. Loosen the 2 bolts of the support (2) and the 2 correspond-
ing nuts (1) on the tensioner using a wrench. Remove the old belts from the pulleys and install
the new belts. After installing the new belt, tighten the belt with the appropriate tensile force
(see section 5.3 Checking Drive Belt). Tighten the 2 bolts of the support (2) and the 2 corre-
sponding nuts on the tensioner. Tighten the 4 screws of the bracket of the air end. Check the
belt tension within four hours of the compressor's operation in accordance with section
28
The air filter (1) is attached to the compres-
sor's intake valve. In order to replace it,
open the front side panel, loosen the clamp
(2) securing the filter. Remove the contam-
inated filter, and detach the clamp from it.
Set the new filter in its place and fit into
place with the clamp.
1
2
3
2
5.3.
