2.3

Function diagram and main components

1

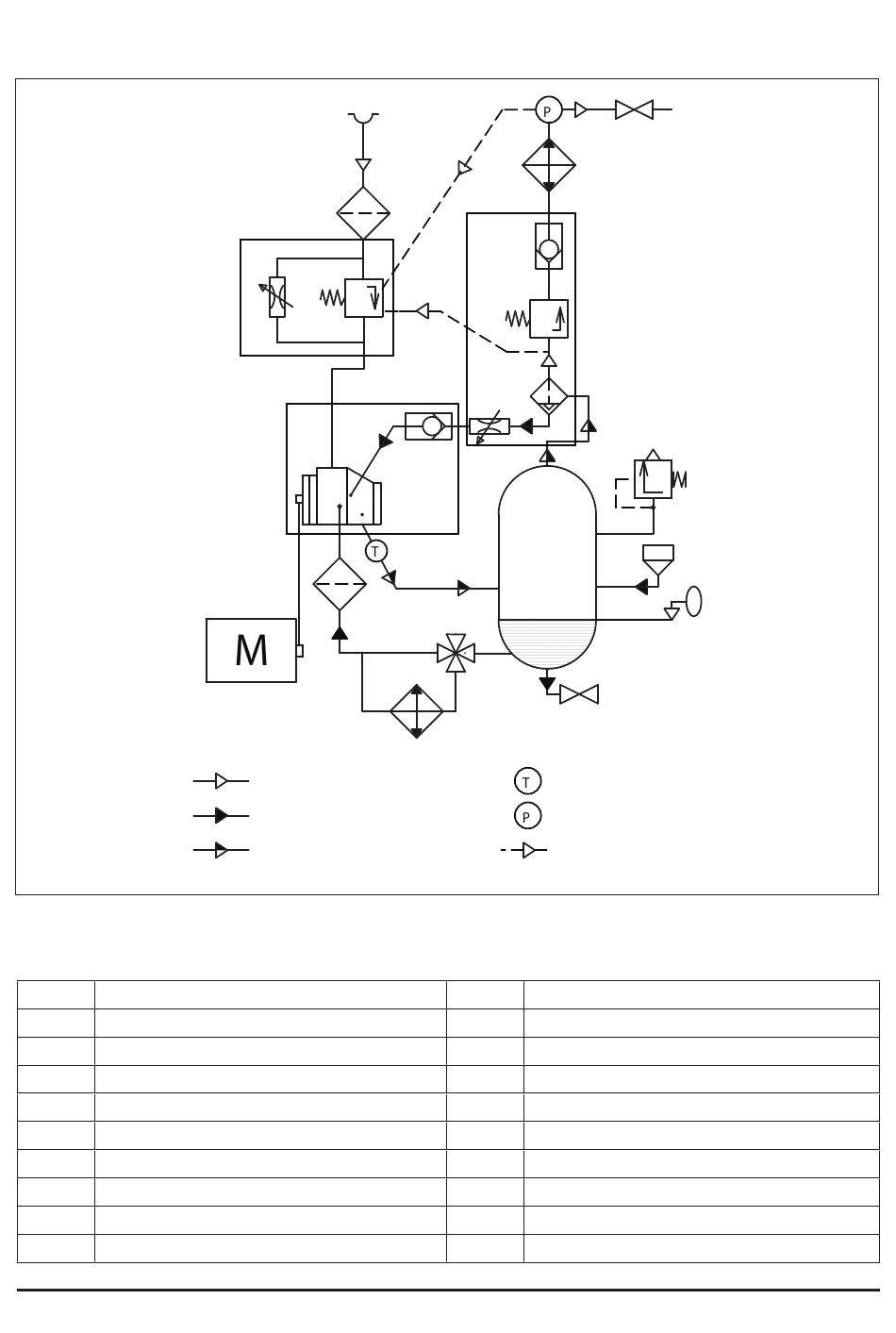

Fig. Function diagram FV30-55
2.3
Main components
1 Electric motor
2 Belt drive
3 Air end
4 Air filter
5 Intake valve
6 Air-Oil separation tank
7 Safety valve
8 Air-Oil separator
9 Throttle valve
10 Non-return valve
10
4
5
3
2
16
14
Air flow
Oil flow
Air/Oil mix flow
13
12
11
8
10
9
6
15
17
Temperature sensor
Pressure sensor
Pneumatic control line
11 Min. Pressure valve
12 Non-return valve
13 Heat-exchanger, Air section
14 Heat-exchanger, Oil section
15 Thermostatic valve
16 Oil filter
17 Drain valve
18 Oil filling plug
19 Oil level sight glass
20 Air outlet valve
20
7
18
19
Version 1.5
