3.3 Requirements on installation facility

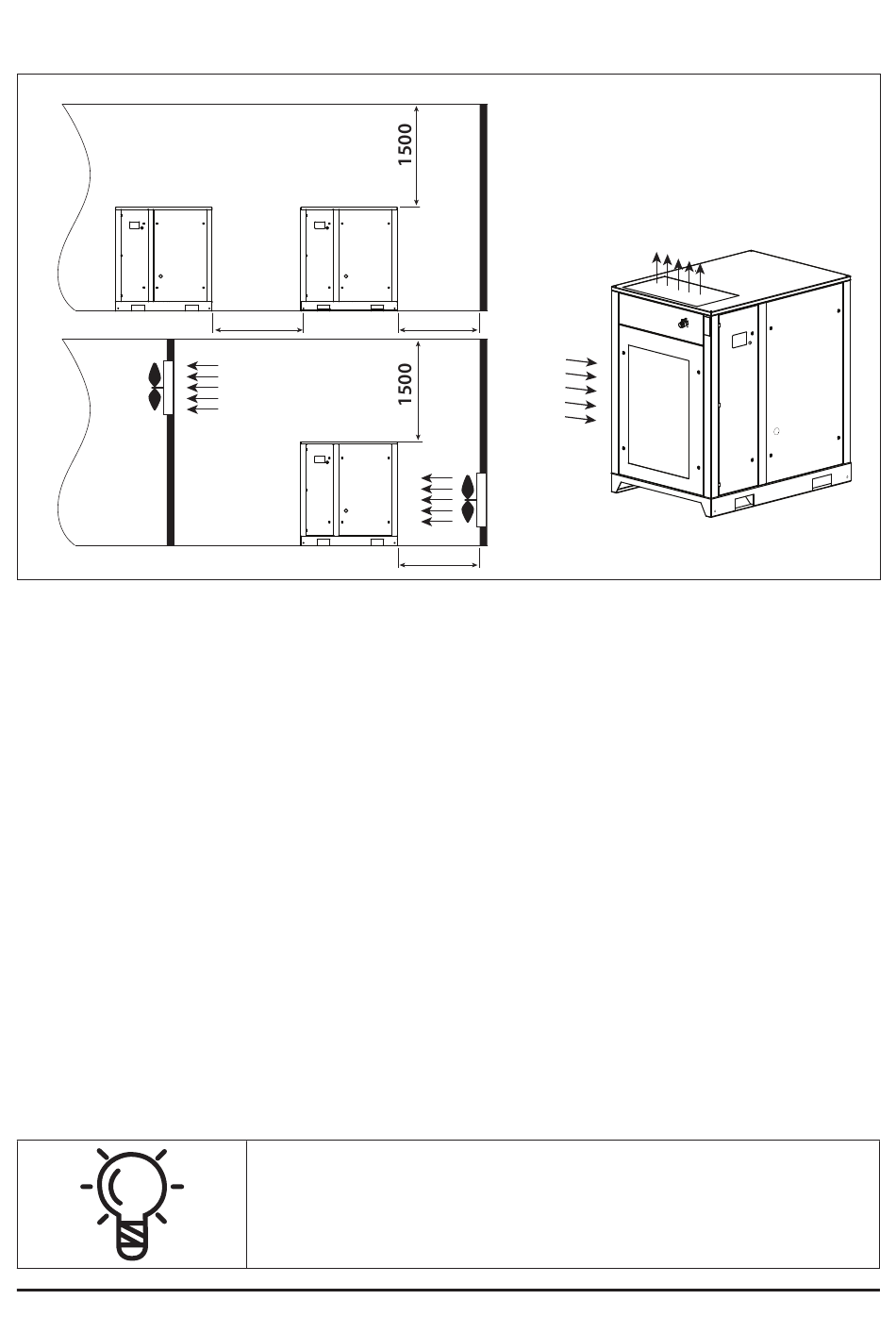

Fig. 3.3 Installation facility proposal FV30-55.
1. Air inflow
2. Air outflow
Ensure that the floor of the facility can withstand the weight of the compressor. Install the compressor on
a level surface that is able to bear its weight. Adjust the horizontal axis of the compressor using a levelling
instrument. If the compressor is not anchored to the base on which it is installed, the tilt angle with respect
to the horizontal surface must not exceed 3°.
If the compressor is anchored to the base on which it is installed, the tilt angle with respect to
the horizontal surface must not exceed 7°. Install the compressor in a facility where precip-
itation cannot reach. Choose a facility for installing the compressor with a minimum level of
dust. Install the compressor at least 1,5 m from walls.
If multiple compressors are installed, there should be a 1,5 m minimum distance between
each compressor. There should be a 4 m safety distance from the area of the operated equip-
ment connected to the compressor. The facility in which the compressor is installed must be
fitted with a combined extract-and- input ventilation system.
COMPRAG Screw air compressor FV-Series
1500
The facility where the compressor is installed should be provided
with air inflow equivalent to twice the compressor's capacity.
1500
1
1500
2
