2.3 Function diagram and main components

4
5
3
2
1

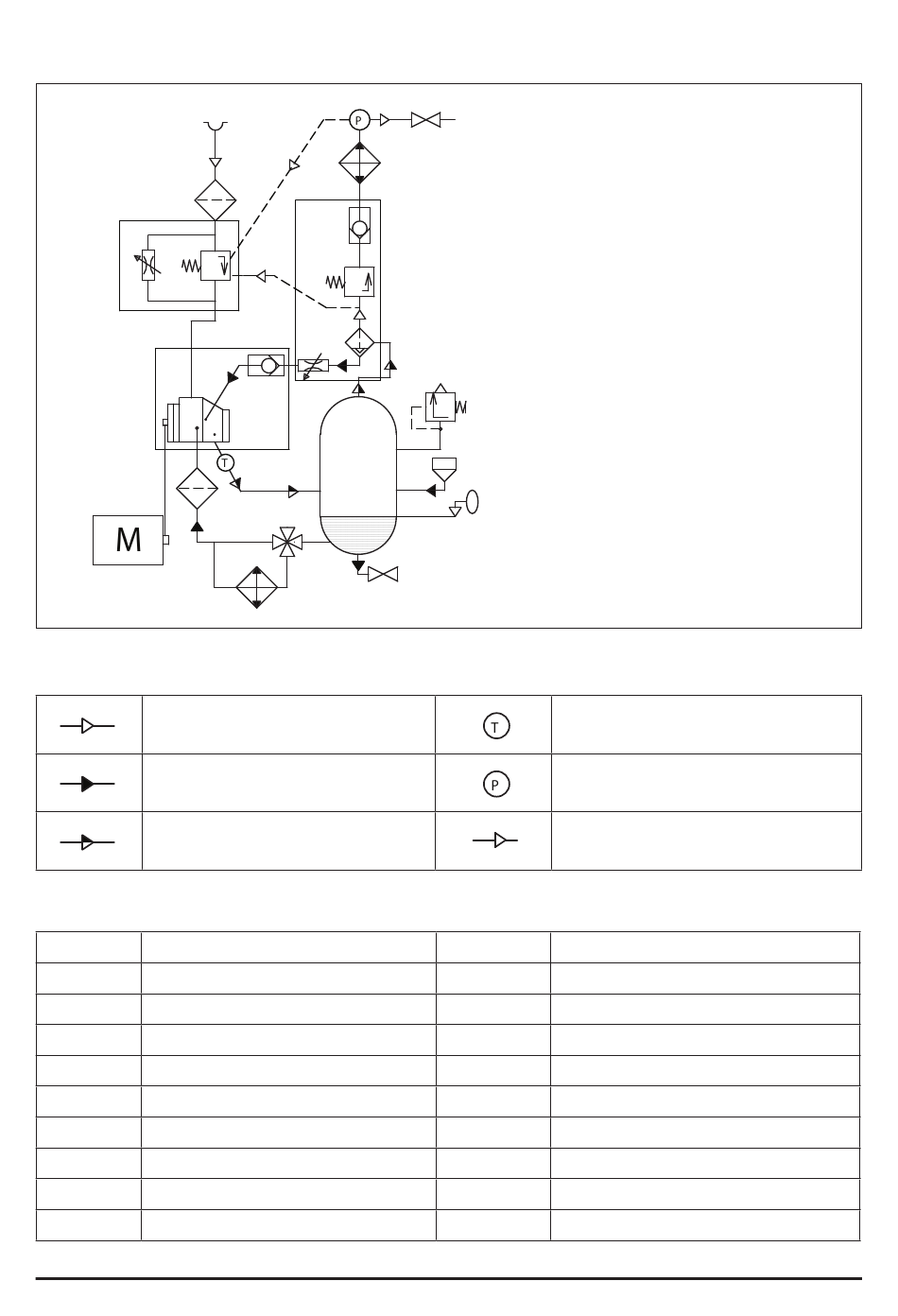

Fig. 2.3.1 Function diagram A07..-A22..
Air flow
Oil flow
Air/Oil mix flow
Main components
1 Electric motor
2 Belt drive
3 Air end
4 Air filter
5 Intake valve
6 Air-Oil separation tank
7 Safety valve
8 Air-Oil separator
9 Throttle valve
10 Non-return valve
COMPRAG Screw air compressor A-Series
10
9
6
16
15
17
14
20
13
12
11
8
7
18
19
11
12
13
14
15
16
17
18
19
20

Temperature sensor

Pressure sensor

Pneumatic control line
Min. Pressure valve
Non-return valve
Heat-exchanger, Air section
Heat-exchanger, Oil section
Thermostatic valve
Oil filter
Drain valve
Oil filling plug
Oil level sight glass
Air outlet valve
