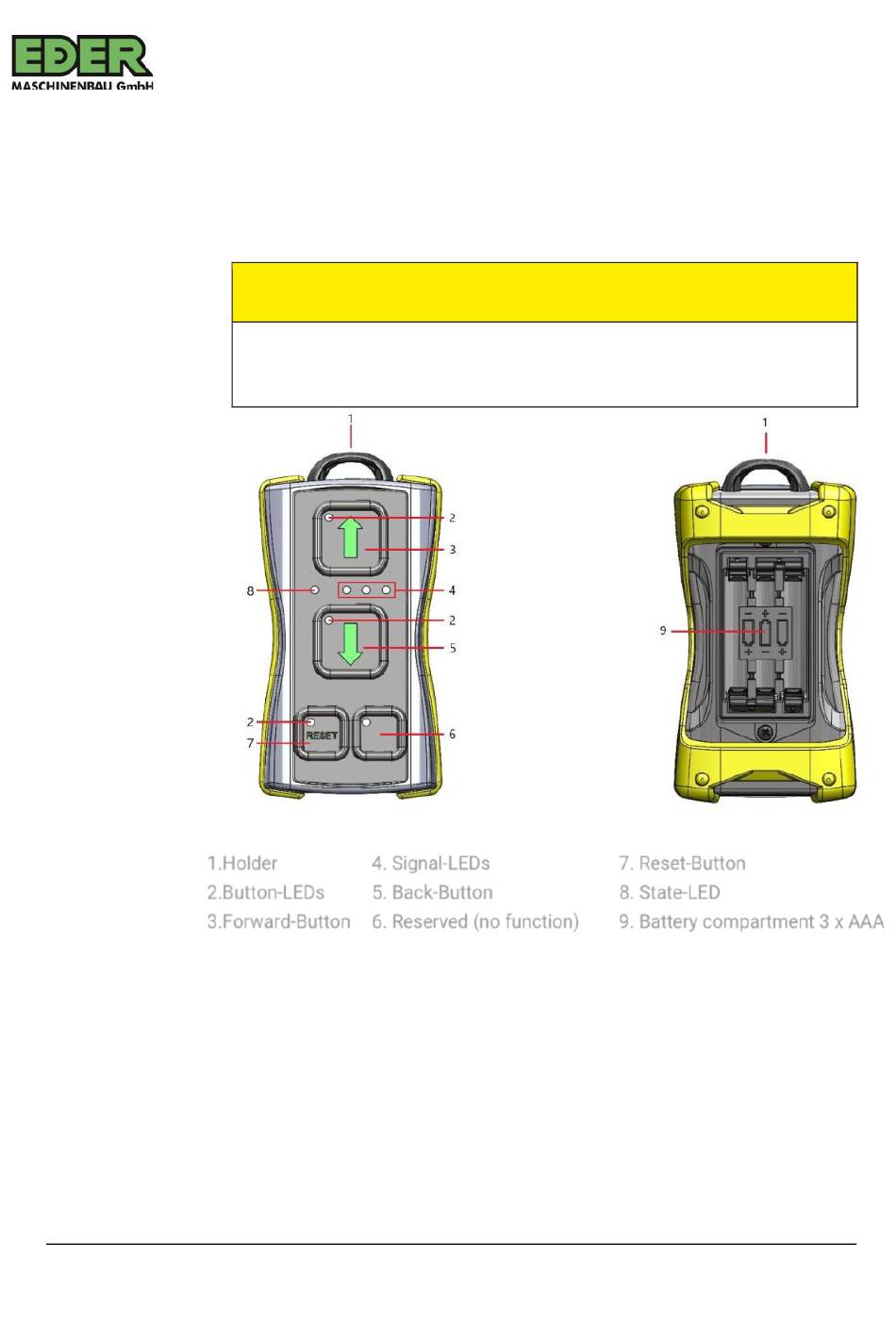

1.Holder
2.Button-LEDs
3.Forward-Button
309001_00 | 03.2023
Control of the Funk Titan 80
Make sure that the wedge may only be operated via the radio remote
control if persons cannot be endangered.
When retracting the wedge, there is a risk of crushing between
the feed wedge and the housing.
4. Signal-LEDs
5. Back-Button
6. Reserved (no function)
Open the battery compartment on the back of the remote control and
insert AAA batteries or AAA rechargeable batteries. Pay attention to the
polarity. Insert the 18V battery into the felling wedge.
Starting up the unit
The remote control is switched on by pressing one of the "Forward",
"Back" or "Reset" keys (no.3, 5 and 7). As soon as the remote control is
switched on, the status LED (no.8) lights up.
CAUTION
7. Reset-Button
8. State-LED
9. Battery compartment 3 x AAA
Titan 80 Pro, Funk Titan 80, Titan 50
48
