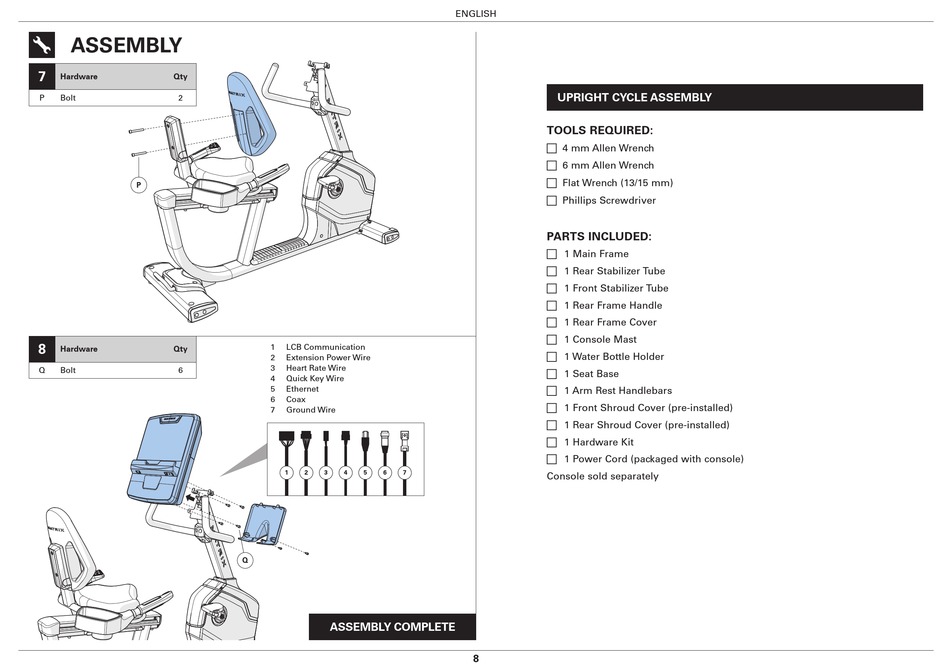

ASSEMBLY
7
Hardware Qty
P Bolt 2
P
8
Hardware Qty
Q Bolt 6
1 LCB Communication
2 Extension Power Wire
3 Heart Rate Wire
4 Quick Key Wire
5 Ethernet
6 Coax
7 Ground Wire
1 2 3 4 5 6 7
Q
ASSEMBLY COMPLETE
ENGLISH
UPRIGHT CYCLE ASSEMBLY
TOOLS REQUIRED:
F 4 mm Allen Wrench
F 6 mm Allen Wrench
F Flat Wrench (13/15 mm)
F Phillips Screwdriver
PARTS INCLUDED:
F 1 Main Frame
F 1 Rear Stabilizer Tube
F 1 Front Stabilizer Tube
F 1 Rear Frame Handle
F 1 Rear Frame Cover
F 1 Console Mast
F 1 Water Bottle Holder
F 1 Seat Base
F 1 Arm Rest Handlebars
F 1 Front Shroud Cover (pre-installed)
F 1 Rear Shroud Cover (pre-installed)
F 1 Hardware Kit
F 1 Power Cord (packaged with console)
Console sold separately
