Appendix 2
1
3
4
5
6
7
8

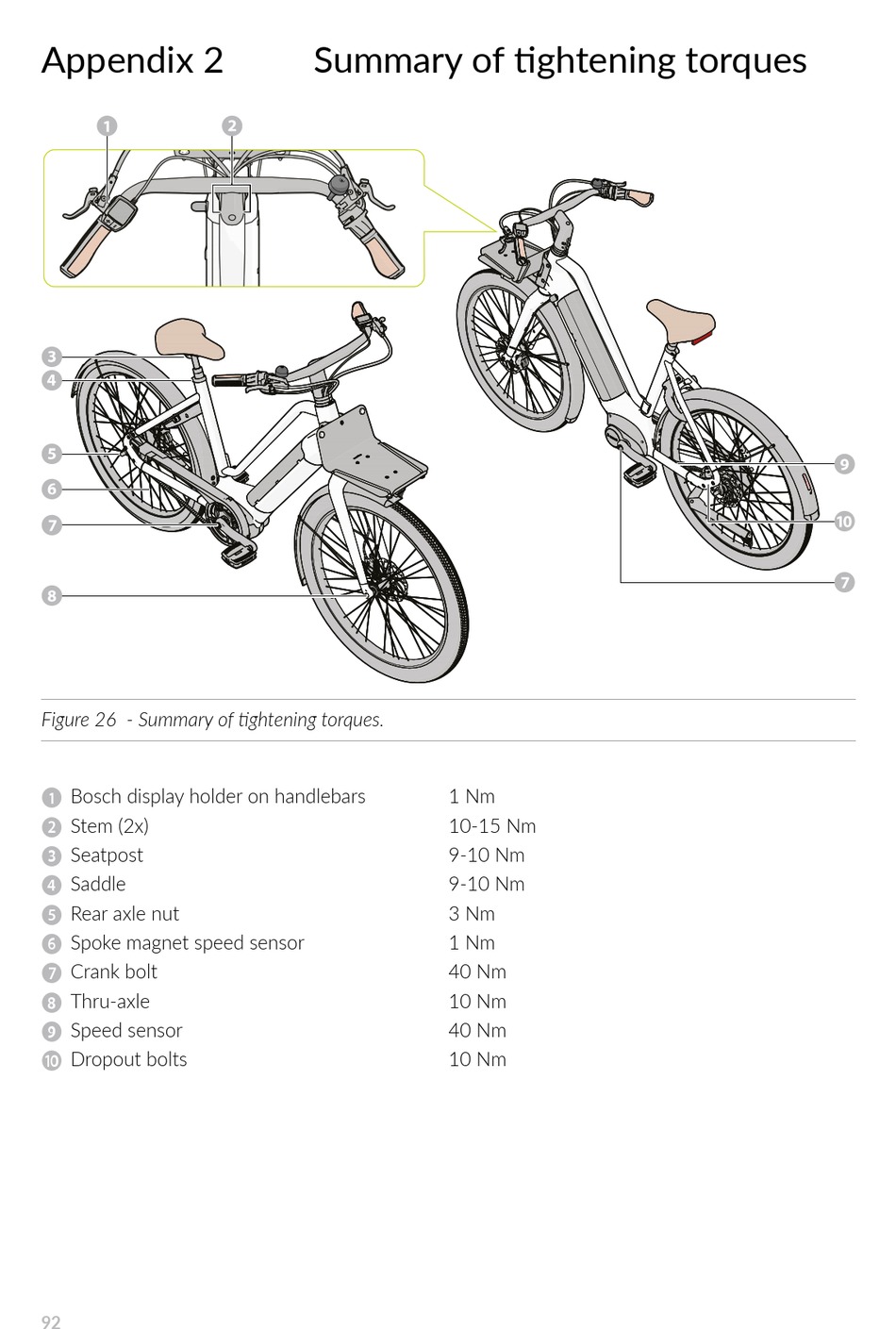

Figure 26 - Summary of tightening torques.
1 Bosch display holder on handlebars
2 Stem (2x)
Seatpost
3
Saddle
4
5 Rear axle nut
6 Spoke magnet speed sensor
7 Crank bolt
8 Thru-axle
Speed sensor
9
q Dropout bolts
92
Summary of tightening torques
2
1 Nm
10-15 Nm
9-10 Nm
9-10 Nm
3 Nm
1 Nm
40 Nm
10 Nm
40 Nm
10 Nm
9
q
7
