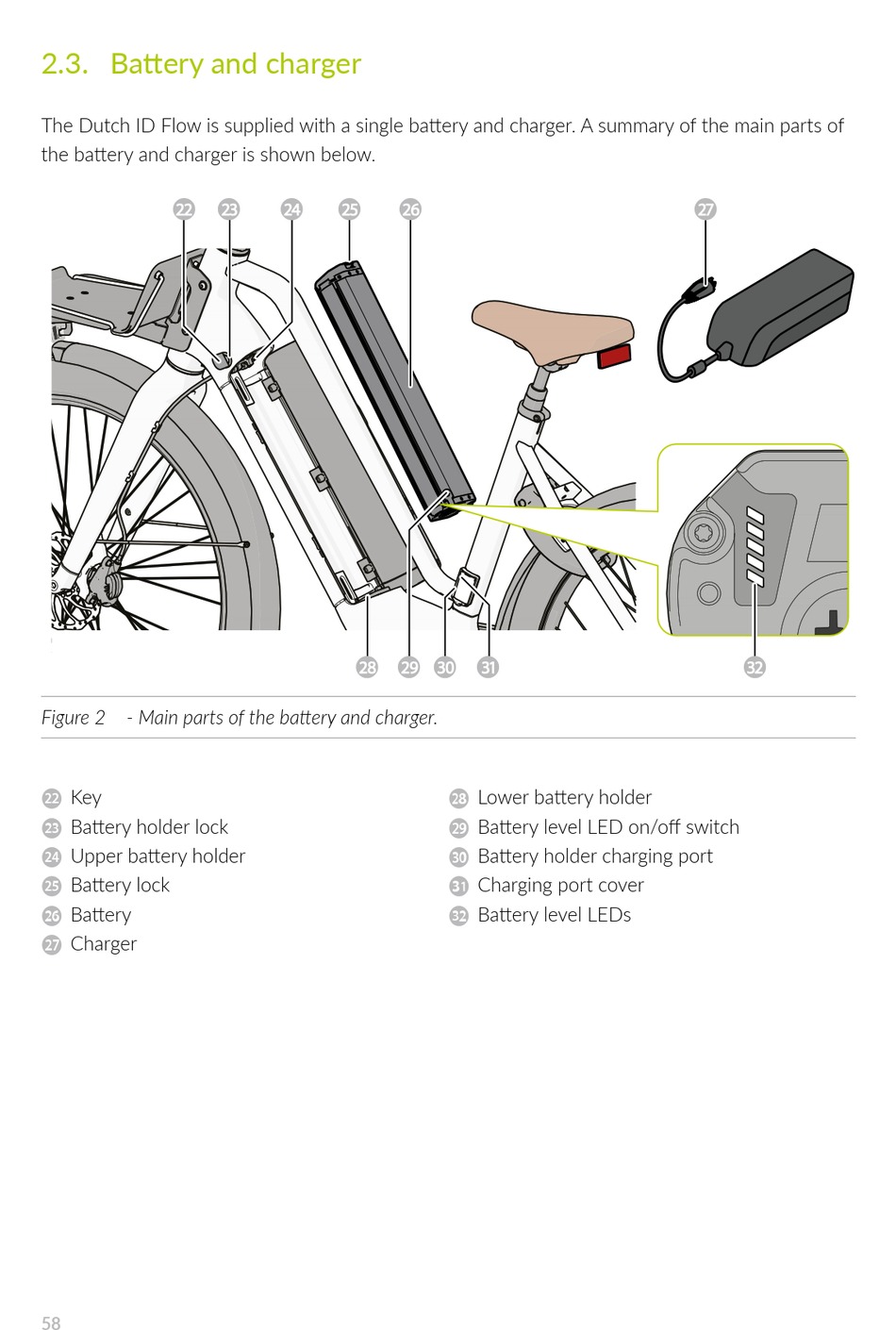

2.3. Battery and charger
The Dutch ID Flow is supplied with a single battery and charger. A summary of the main parts of
the battery and charger is shown below.
d f
Figure 2 - Main parts of the battery and charger.
d Key
f Battery holder lock
g Upper battery holder
h Battery lock
j Battery
k Charger
58
g h j
l z x
l Lower battery holder
z Battery level LED on/off switch
x Battery holder charging port
c Charging port cover
v Battery level LEDs
c
k
v
