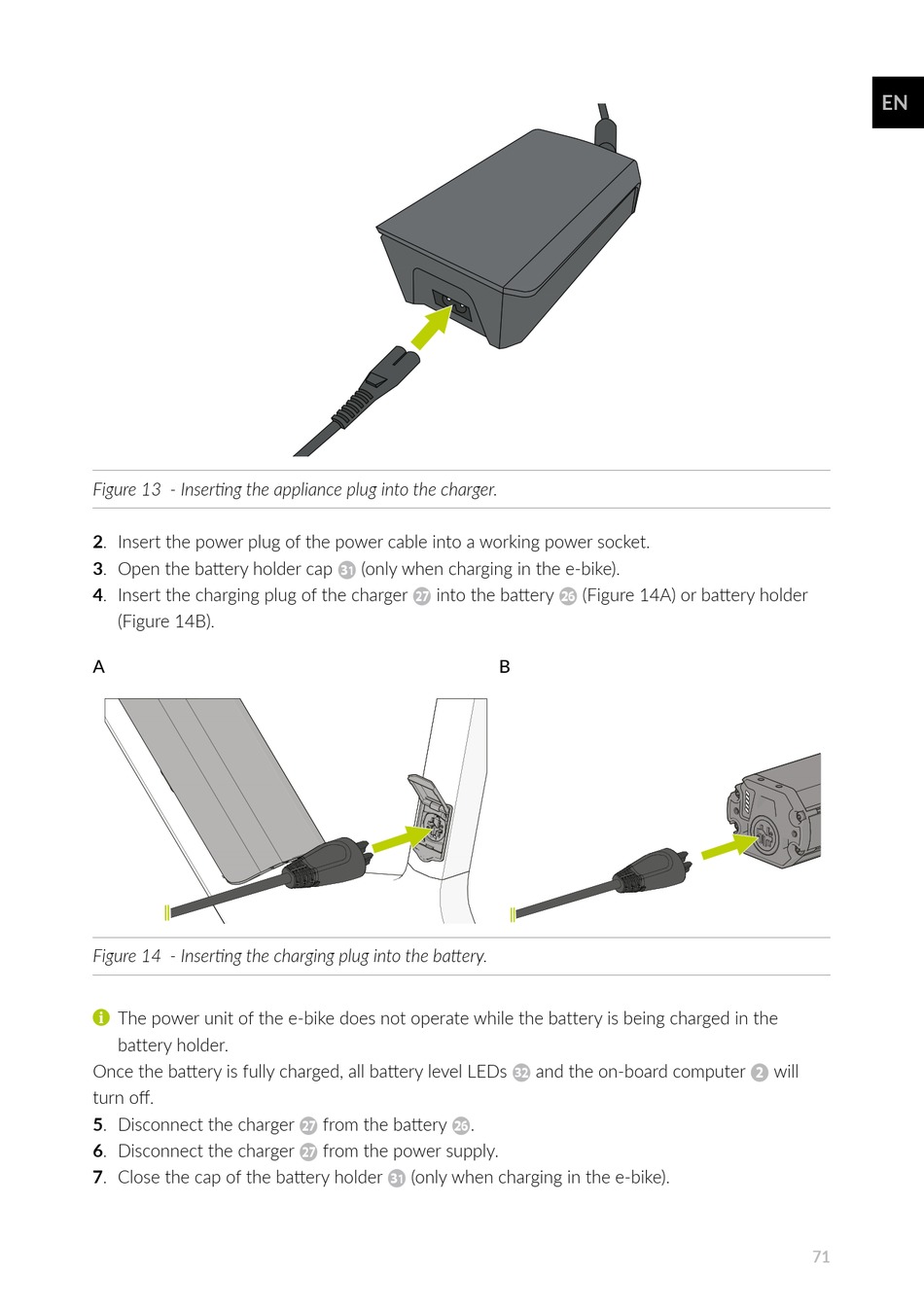

Figure 13 - Inserting the appliance plug into the charger.
2. Insert the power plug of the power cable into a working power socket.
3. Open the battery holder cap c (only when charging in the e-bike).
4. Insert the charging plug of the charger k into the battery j (Figure 14A) or battery holder
(Figure 14B).
A
Figure 14 - Inserting the charging plug into the battery.
The power unit of the e-bike does not operate while the battery is being charged in the
4
battery holder.
Once the battery is fully charged, all battery level LEDs v and the on-board computer 2
turn off.
5. Disconnect the charger k from the battery j.
6. Disconnect the charger k from the power supply.
7. Close the cap of the battery holder c (only when charging in the e-bike).
B
