viscount
HARMONIC
SERIE
PIPE
INTONATION
SCALE
PITCH
CORRESPONDING
NOTE

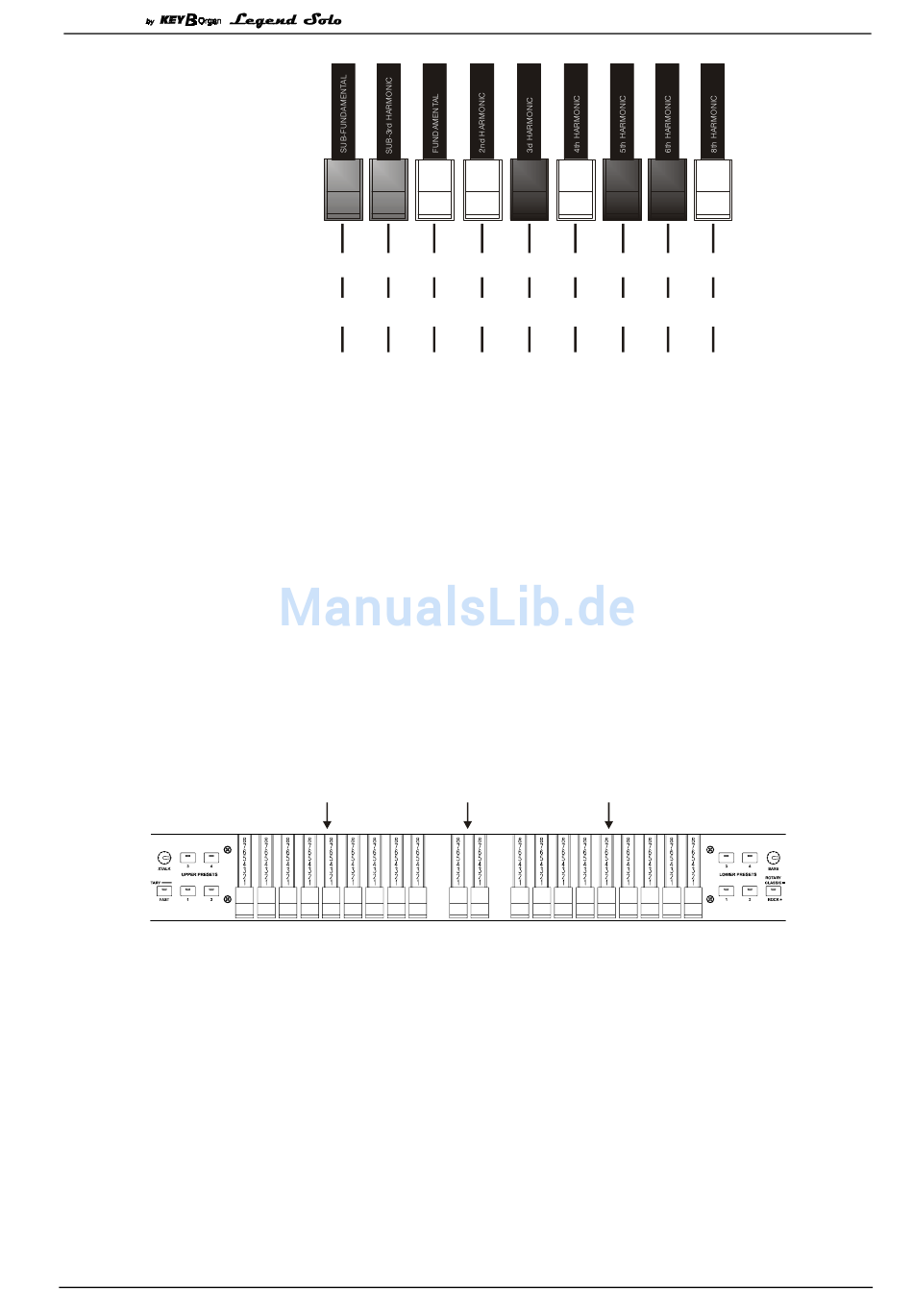

To know the relationship between the sound generated by various drawbars it is necessary to divide the size in
feet of a given drawbar for the size of the first drawbar to the left (that generates the same sound of a 16' pipe).
The white drawbars are those whose relationship with 16' is a power of 2 (2, 4, 8 and 16), this means that these
drawbars have intervals of one or more octaves among them. The octave interval is considered the "purest",
and the white color indicates this interval. Registers that have intervals different from the octave are marked by
the black colour. An exception is made for the first two drawbars, as the first is not white even though it has an
interval of an octave, while the second seems to violate the harmonic scale (from low to high). These drawbars
are brown in color, as they are sub-harmonics of the 8' register, which is traditionally considered the root note.
Making an other comparisonn with an equalizer, drawbars can be used to generate sound according to
frequency; the first two drawbars on the left (16' and 5 1/3') control bass, the central group of four drawbars
(8', 4', 2 2/3 'and 2') define the main sound and the last three drawbars (1 3/5', 1 1/3' and 1') adjust the sound
brightness.
The Legend Solo features 20 drawbars, divided into three groups: the group on the left is called Set A, while
the one on the right is the Set B. The central group are the two drawbars of the pedal.
The drawbars operation depends on the
information on these modes see points 14, 15 and 16 of par. 3.1 and par. 4.5.
SELECTION OF ORGAN MODEL
Legend Solo
The allow to select three different types of electromechanical organ from different periods, each
with its own sound features. To select the desired model, press and hold the [TRANSPOSE SELECT] button,
then simultaneously press the keyboard key:
- F5: typical '30s sound, without drawbar 16' foldback.
- G5: typical sound of the '50s and' 60s and is often used in jazz music.
- A5: typical sound of the '70s, mainly used in progressive music, pop and rock.
16' 5-1/3'
SUB-
5th
UNISON OCTAVE
OCTAVE
C2 G3
Set A (in Single mode) or
Upper section drawbars
(in Split or Double mode)
Single
8' 4' 2-2/3' 2'
12th 15th
C3 C4 G4 C5
Set B (in Single mode) or
Pedalboard
Lower section drawbars
drawbars (in Split or Double mode)
Split Double
, or selected operating modes. For more
EN - 11
User Manual
1-3/5' 1-1/3' 1'
17th 19th 22th
E5 G5 C6
