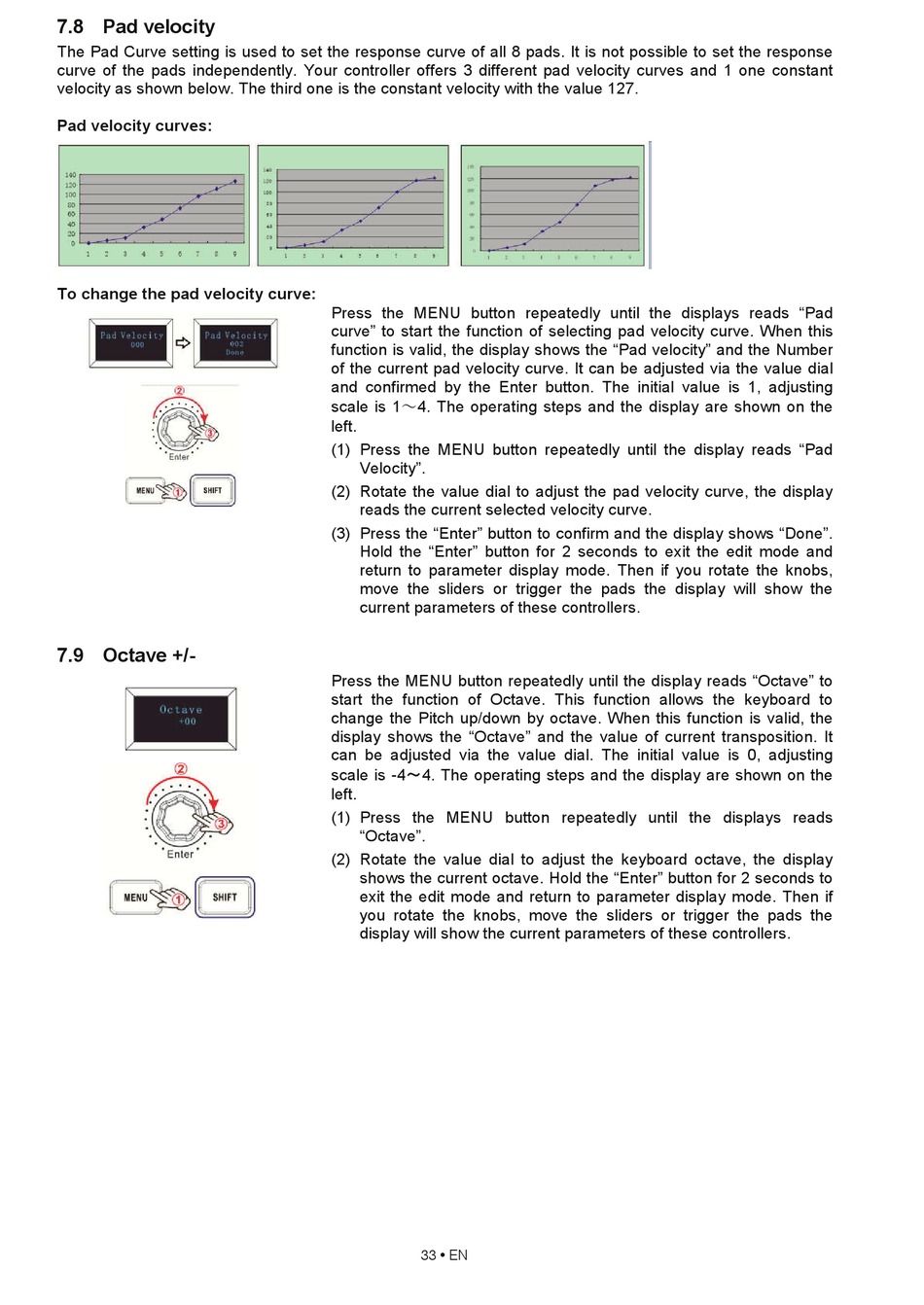

7.8 Pad velocity

The Pad Curve setting is used to set the response curve of all 8 pads. It is not possible to set the response
curve of the pads independently. Your controller offers 3 different pad velocity curves and 1 one constant
velocity as shown below. The third one is the constant velocity with the value 127.
Pad velocity curves:
To change the pad velocity curve:

7.9 Octave +/-

Press the MENU button repeatedly until the displays reads "Pad
curve" to start the function of selecting pad velocity curve. When this
function is valid, the display shows the "Pad velocity" and the Number
of the current pad velocity curve. It can be adjusted via the value dial
and confirmed by the Enter button. The initial value is 1, adjusting
scale is 1～4. The operating steps and the display are shown on the
left.
(1) Press the MENU button repeatedly until the display reads "Pad
Velocity".
(2) Rotate the value dial to adjust the pad velocity curve, the display
reads the current selected velocity curve.
(3) Press the "Enter" button to confirm and the display shows "Done".
Hold the "Enter" button for 2 seconds to exit the edit mode and
return to parameter display mode. Then if you rotate the knobs,
move the sliders or trigger the pads the display will show the
current parameters of these controllers.
Press the MENU button repeatedly until the display reads "Octave" to
start the function of Octave. This function allows the keyboard to
change the Pitch up/down by octave. When this function is valid, the
display shows the "Octave" and the value of current transposition. It
can be adjusted via the value dial. The initial value is 0, adjusting
scale is -4～4. The operating steps and the display are shown on the
left.
(1) Press the MENU button repeatedly until the displays reads
"Octave".
(2) Rotate the value dial to adjust the keyboard octave, the display
shows the current octave. Hold the "Enter" button for 2 seconds to
exit the edit mode and return to parameter display mode. Then if
you rotate the knobs, move the sliders or trigger the pads the
display will show the current parameters of these controllers.
