Pad Note Setting; Keyboard Velocity Curve - Omnitronic Key-288+ Bedienungsanleitung

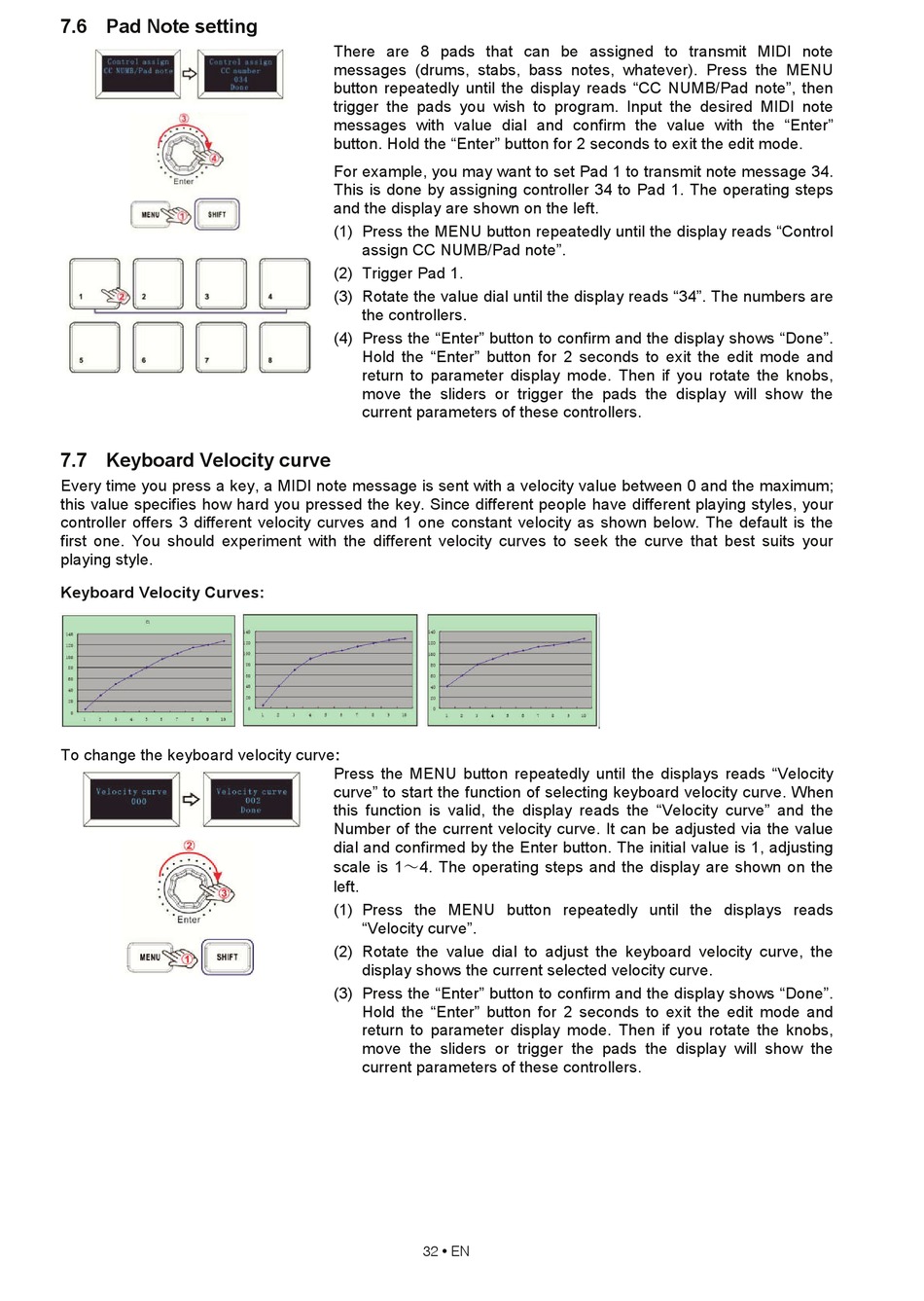

7.6 Pad Note setting

7.7 Keyboard Velocity curve

Every time you press a key, a MIDI note message is sent with a velocity value between 0 and the maximum;
this value specifies how hard you pressed the key. Since different people have different playing styles, your
controller offers 3 different velocity curves and 1 one constant velocity as shown below. The default is the
first one. You should experiment with the different velocity curves to seek the curve that best suits your
playing style.
Keyboard Velocity Curves:
To change the keyboard velocity curve:
There are 8 pads that can be assigned to transmit MIDI note
messages (drums, stabs, bass notes, whatever). Press the MENU
button repeatedly until the display reads "CC NUMB/Pad note", then
trigger the pads you wish to program. Input the desired MIDI note
messages with value dial and confirm the value with the "Enter"
button. Hold the "Enter" button for 2 seconds to exit the edit mode.
For example, you may want to set Pad 1 to transmit note message 34.
This is done by assigning controller 34 to Pad 1. The operating steps
and the display are shown on the left.
(1) Press the MENU button repeatedly until the display reads "Control
assign CC NUMB/Pad note".
(2) Trigger Pad 1.
(3) Rotate the value dial until the display reads "34". The numbers are
the controllers.
(4) Press the "Enter" button to confirm and the display shows "Done".
Hold the "Enter" button for 2 seconds to exit the edit mode and
return to parameter display mode. Then if you rotate the knobs,
move the sliders or trigger the pads the display will show the
current parameters of these controllers.
Press the MENU button repeatedly until the displays reads "Velocity
curve" to start the function of selecting keyboard velocity curve. When
this function is valid, the display reads the "Velocity curve" and the
Number of the current velocity curve. It can be adjusted via the value
dial and confirmed by the Enter button. The initial value is 1, adjusting
scale is 1～4. The operating steps and the display are shown on the
left.
(1) Press the MENU button repeatedly until the displays reads
"Velocity curve".
(2) Rotate the value dial to adjust the keyboard velocity curve, the
display shows the current selected velocity curve.
(3) Press the "Enter" button to confirm and the display shows "Done".
Hold the "Enter" button for 2 seconds to exit the edit mode and
return to parameter display mode. Then if you rotate the knobs,
move the sliders or trigger the pads the display will show the
current parameters of these controllers.
32 • EN
