Adjusting threads

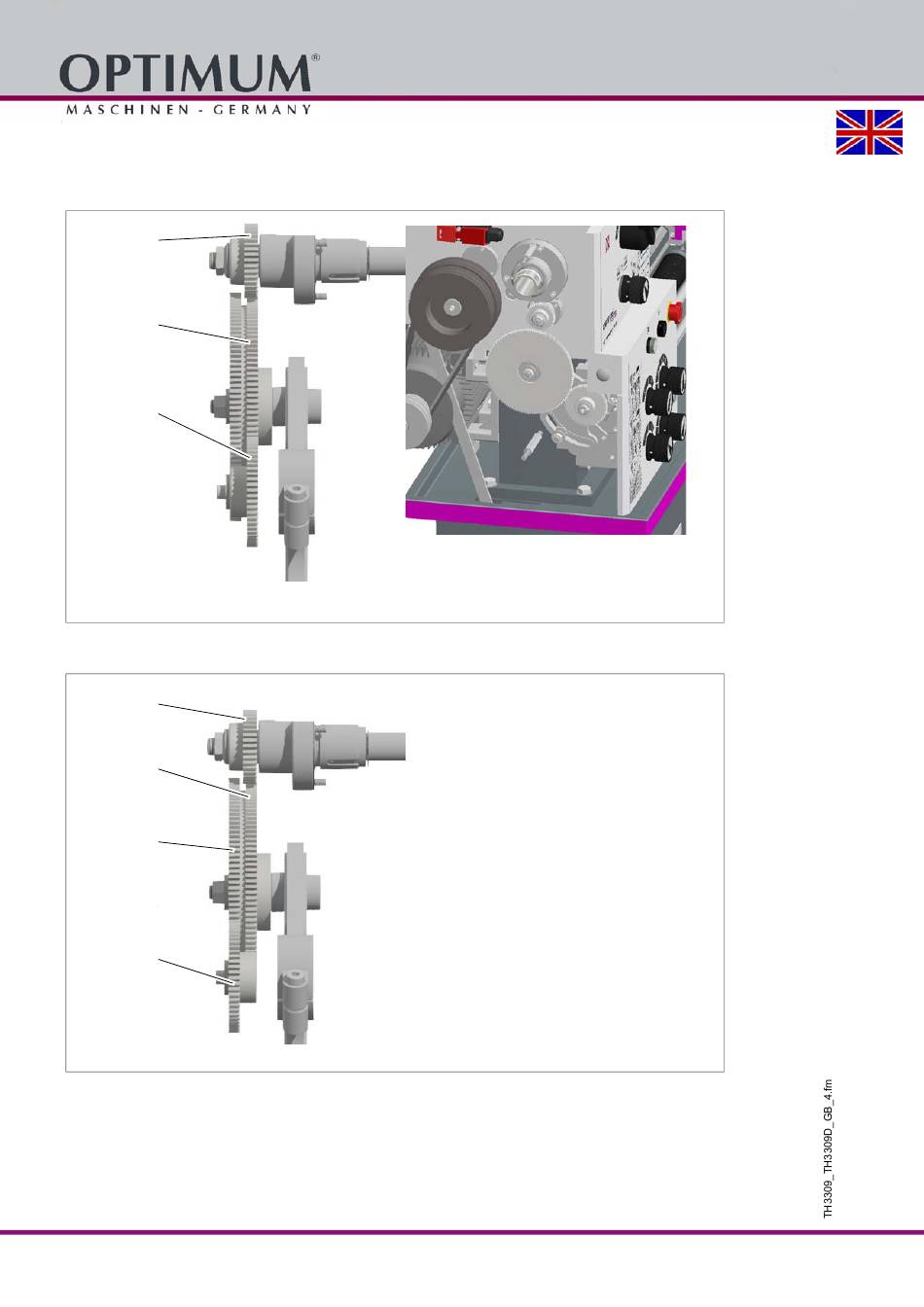

Example: Thread pitch 1.75 mm per revolution
a = 56 teeth
120 teeth
b = 60 teeth
Set selection lever to A - C - 4 - R
Example: Inch thread
a
120 teeth
127 teeth
b
