Operation
Attach and tighten both antennas.
To apply the voltage, plug the connecting cable
into socket and into the camcorder or an
external voltage source (storage battery or power
supply).
The EK 4015 automatically switches between the
supply voltages of a camcorder (12 V) and an
external voltage source (4.5 V).

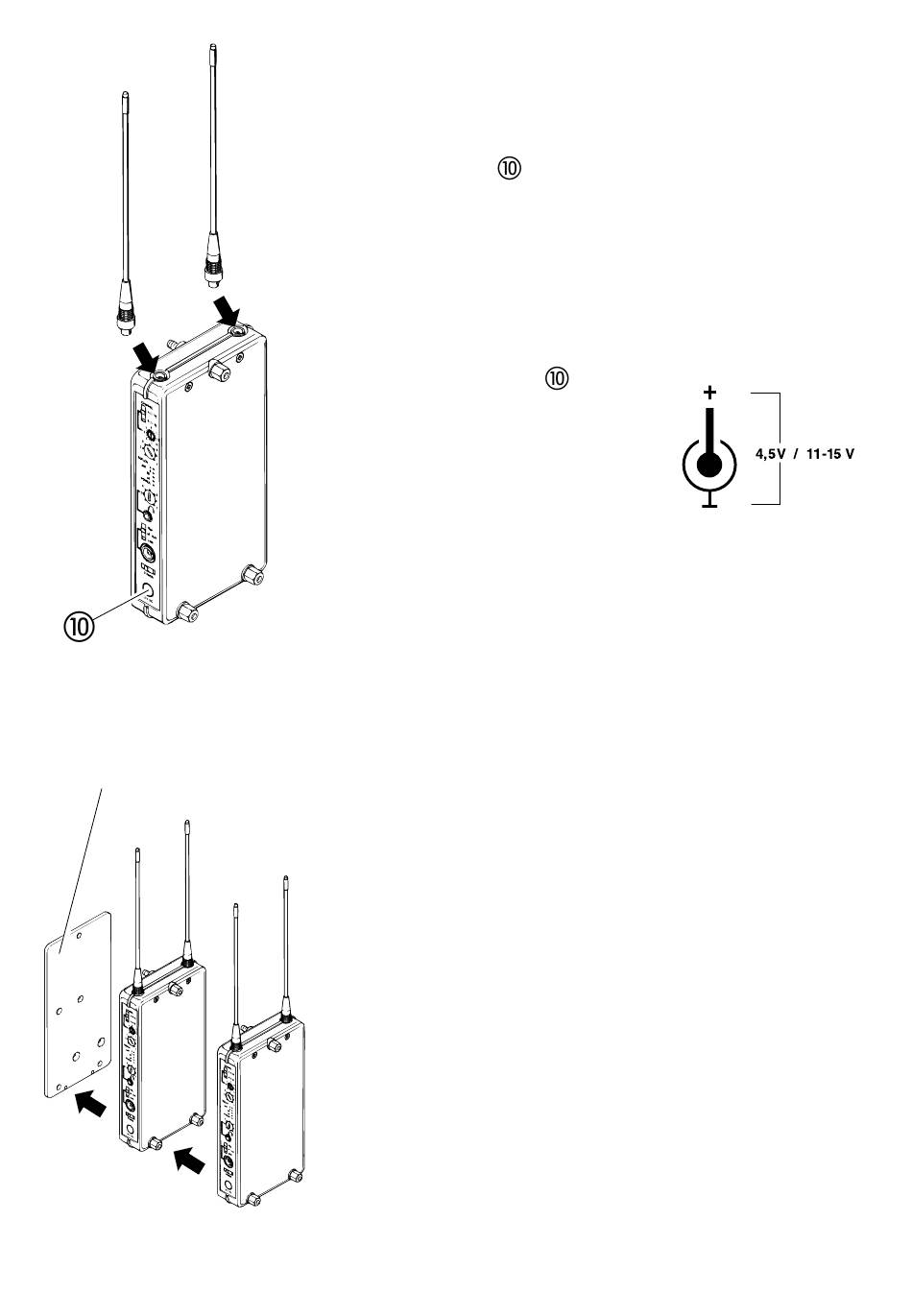

Wiring of socket :
Mounting on the camcorder
By means of the EZP 4015 mounting plate one or
several EK 4015 are mounted on the storage
battery of a camcorder.
First, the EZP 4015 is mounted on the camcorder.
Due to the various fastening possibilities on
EZP 4015
camcorders of different producers, the EZP 4015
has several bore holes. The necessary screws are
available from the camcorder producer.
The EK 4015 receiver is mounted on the EZP 4015
mounting plate by means of the 3 screws included
in the delivery. Additional receivers are cascadable,
as the screw heads contain the suitable threads.
The screws may remain in the EK 4015 during
transporting; once the screws are screwed into the
housing they can no longer fall off.
In case the camcorder and the EK 4015 are
connected over a longer period of time, the
connecting cables are to be united by means of
cable ties and are to be tied to the EZP 4015
mounting plate.
