Flange Configuration

Be certain seals and screen are properly positioned and clean any time the flanges are reconfigured. Improperly installed
or dirty seals or screens could cause leaks and the potential for fire or explosion
Always be certain the power switch is accessible after reconfiguring the inlet and outlet ports.

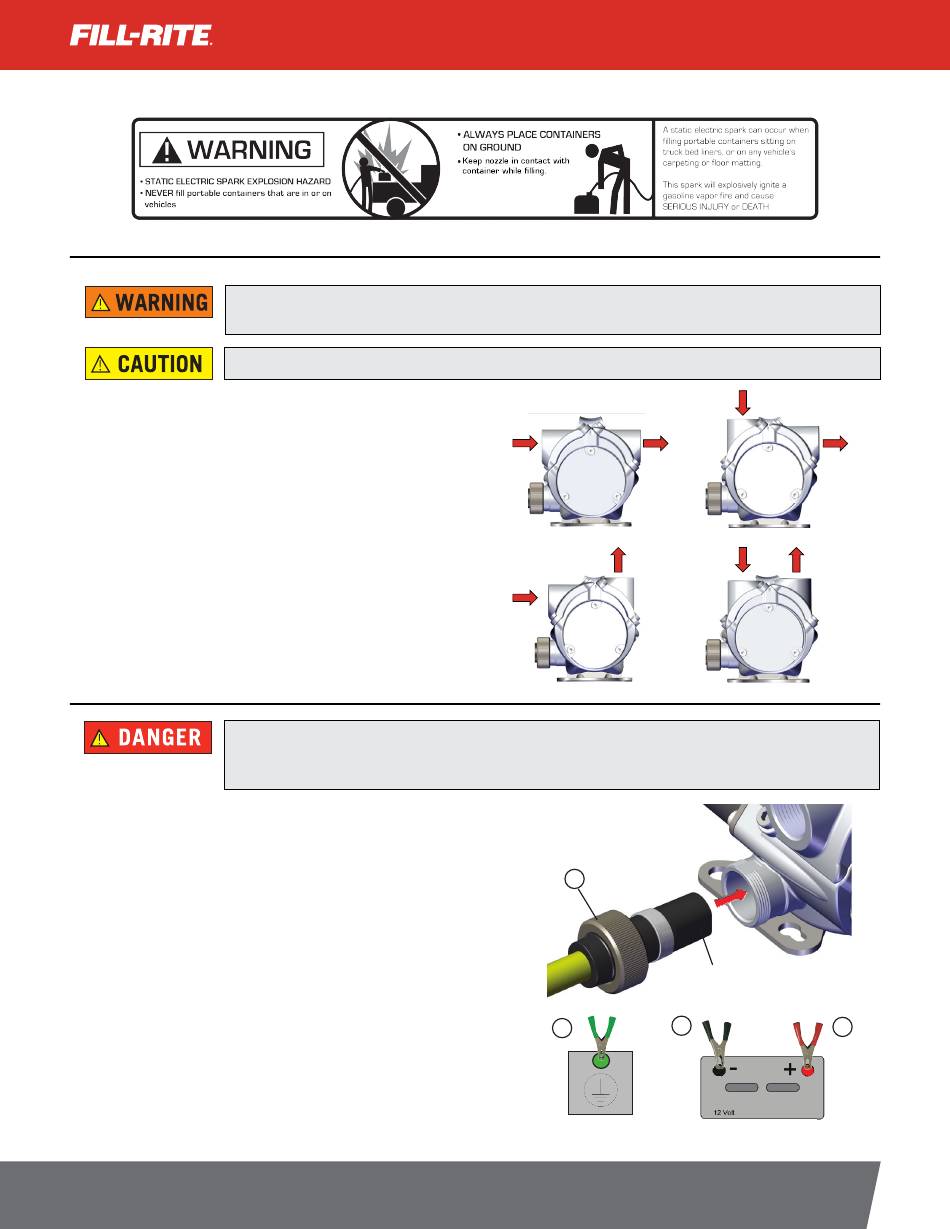

The inlet and outlet flanges of your RD Series pump can be configured
vertically, horizontally, or a combination of both. To change the
position of a flange:
1. Remove the two socket head cap bolts holding the flange in
position.
2. Remove the flange; examine the sealing surfaces to be certain
they are clean and will seal properly.
3. Position the seal and screen, and place the flange in the desired
position.
4. Use the two socket head cap bolts to reattach the flange firmly to
the pump housing. Torque to 50 in-lbs. with a 4 mm hex key.

DC Power Connection

Be certain the power switch is "OFF" prior to connecting the battery clamps / power cables to the power source or
installing the cable into the pump to prevent unexpected starting of the motor. Unexpected motor start can cause
unintended discharge of fuel, creating an explosion and fire hazard.
Inspect power cable before each use! Damage to the outer jacket of the
cable that exposes wiring requires replacement of the power cable.
Install power cable by aligning flat on plug with front of pump. Insert the
plug into the pump housing as shown. Lock into place using the threaded
collar (A). HAND TIGHTEN ONLY! The power cable terminates in green,
black, and red clamps. All three clamps must be used.
1. The green (ground) clamp should be connected first. Connect the
green clamp to the vehicle chassis or earth ground. DO NOT connect
the green clamp to the negative power source post.
2. Next, connect the black (negative) clamp to the negative post of the
DC power source.
3. Connect the red (positive) clamp to the positive post last.
Clamps should be disconnected in reverse order.
fillrite.com
RD SERIES FUEL TRANSFER PUMPS
INSTALLATION AND OPERATION MANUAL
Inlet Outlet
A
Green
2
1
Chassis
Flat
Black Red
3
