ASSEMBLING FOR MINCING

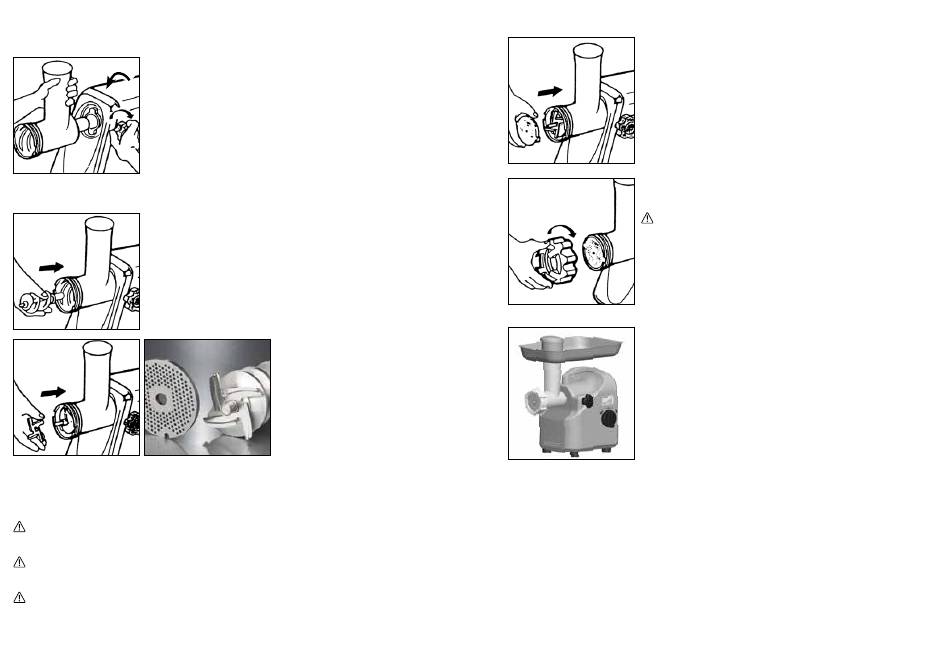

1. Loosen the screw plug on the right side of the mincer by
turning it counterclockwise until you can fit the slim end of
the worm housing all the way into the opening for the
drive shaft. The opening of the worm housing should be
upright (picture A). The worm housing is correctly mounted
when the worm housing is flush with the motor housing.
You should not be able to see the slim end of the worm
housing anymore.
Turn the screw clockwise for tightening. Do not use force and be careful to not overwind
the screw thread.
2. Insert the worm with the longer, narrower end into the
worm housing and turn slightly until it is securely seated in
the worm housing (picture B). Make sure that the worm is
placed completely in the inside of the worm housing. If
necessary turn the worm a little bit to make it fit. If mounted
correctly only round about 9 mm of the axis of the worm
are visible outside of the worm housing.
ATTENTION: Ensure the rounded side of the knife faces the worm when
assembling it. Otherwise it can cause damage to the motor.
WARNING:
The blades of the crossed-blade knife are very sharp. Pay attention
when you handle the crossed-blade knife.
ATTENTION: Never use the crossed-blade knife and the grinding disc together with
the sausage filling attachment. How to work with the attachments is explained further in
the instructions.
38
3. Attach the needed accessories
(in this case: crossed-blade kni-
fe and grinding disc). Take the
crossed-blade knife and attach
it to the worm. The rounded
side of the knife must face the
worm when attaching it to the
axis of the worm. Ensure the
square opening of the crossed-
blade knife fits over the four
cornered shaft of the worm
(picture C and D).
4. Mount the grinding disc on the knife. The arresting pin
must lock precisely into the corresponding recesses (pic-
ture F).
IMPORTANT: If the tools overlap the edges of the worm
housing the worm is not placed all the way inside the worm
housing. Turn the worm a little bit to make it fit inside but do
not use force. If mounted correctly the grinding disc is visible
outside approx. 2 mm of the front of the worm housing and the
axis of the worm is visible outside 5 mm of the grinding disc.
5. Firmly screw the closing ring on the worm housing and
tighten by hand by turning it clockwise (picture G).
ATTENTION:
Pay attention not to cant the screw. If the
screw cants the screw thread gets damaged.
ten the screw too much as this can cause damage
to the motor. If the screw does not turn easily use the pro-
vided spanner for help and put some sunflower oil (or other
edible oil) on the screw before mounting.
6. Place the feed pan onto the worm housing and place the
pusher into the opening of the feed chute (picture H).
The appliance is ready for operation.
