Air-conditioner
48 K

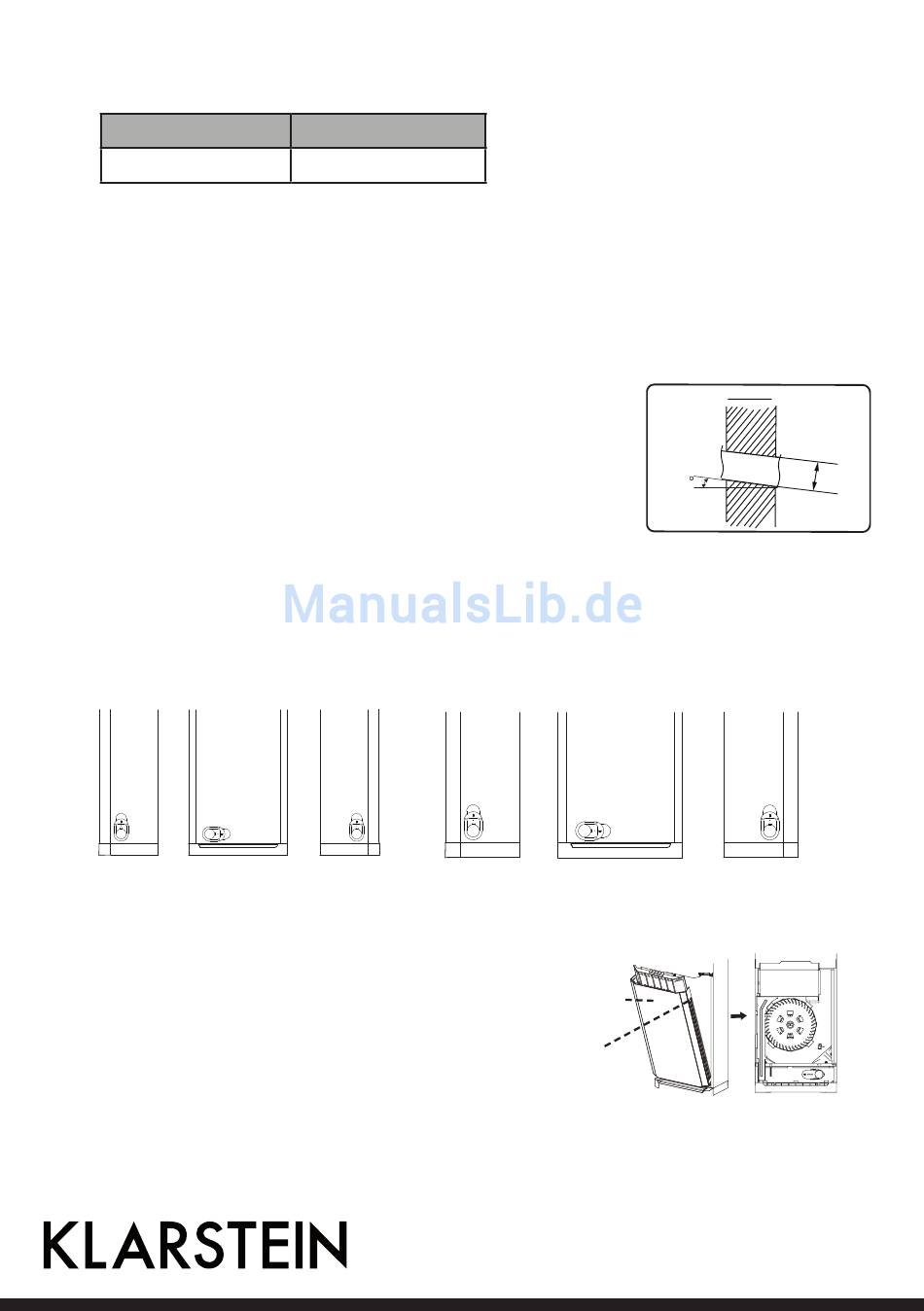

Installation of indoor unit

Step 1: recommend the installation location to the client and then confirm it with the client.
Step 2: opening pipe hole
1. Choose the position of piping hole according to the direction of outlet pipe.
2. Open a piping hole with the diameter of 70 mm on the selected outlet pipe position. In order to drain
smoothly, slant the piping hole on the wall slightly downward to the
outdoor side with the gradient of 5-10°.
Pay attention to dust prevention and take relevant safety measures
when opening the hole.
Step 3: outlet pipe
1. The pipe can be led out in the
direction of left, right or rear.
left back
Step 4: Connect the pipe of indoor unit
1. Take out the left and right screw cover and then
remove the screws on air-inlet panel to remove
the panel.
Air switch capacity
16 A
2. After confirming the direction of outlet pipe,
direction of left, right or rear. loosen the screws
at the upper and lower adjusting baffle to let the
connection pipe /drain pipe connects the indoor
unit.
left
right
Indoor
5-10
back
upper and lower adjusting baffle
air-inlet panel
screw
outdoor
Φ70
right
60
