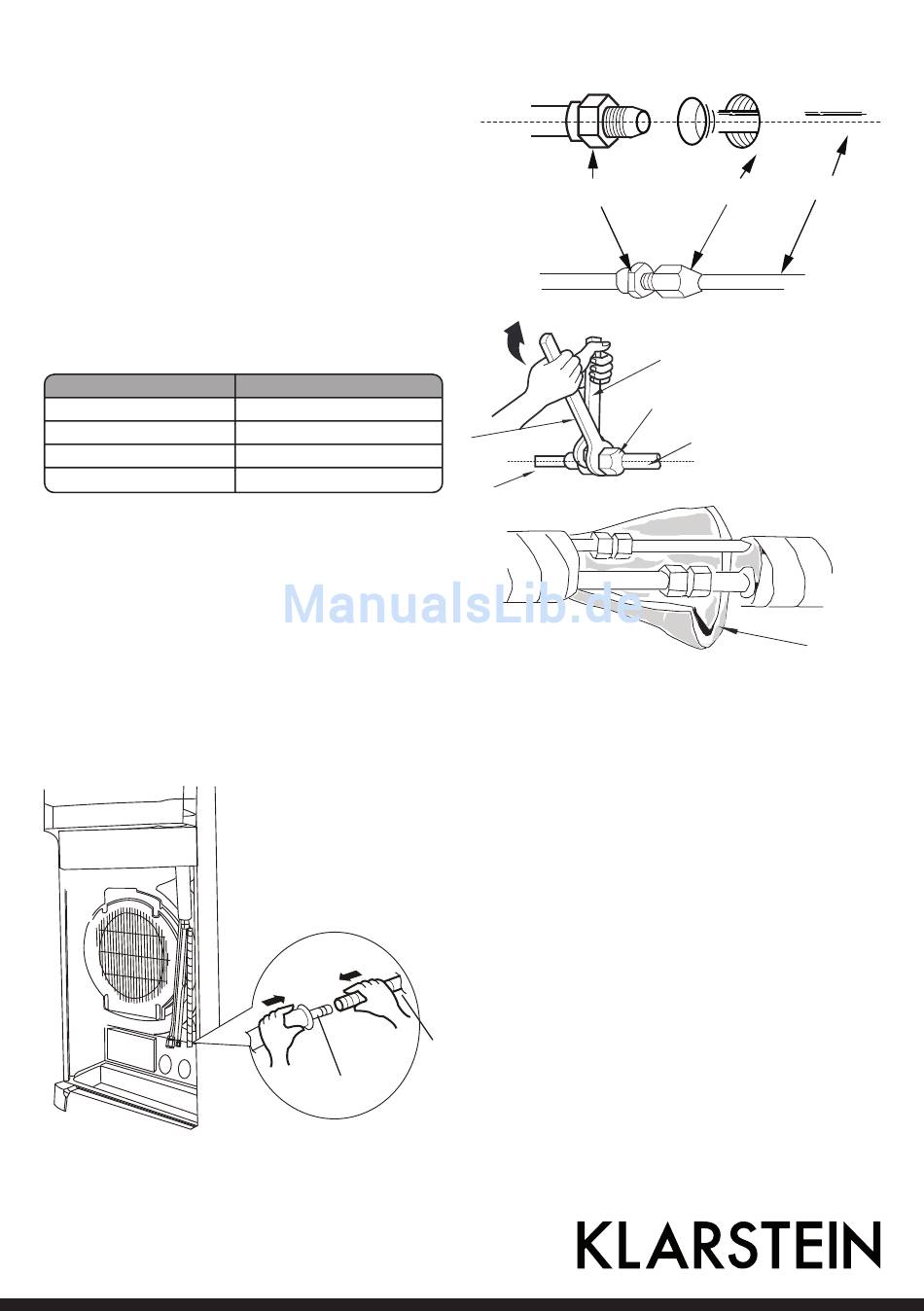

2. Aim the pipe joint at the corresponding
bellmouth.
3. Pretightening the union nut with hand.
4. Adjust the torque force by referring to the
following sheet. Place the opened wrench on
the pipe joint and place the torque wrench on
the union nut. Tighten the union nut with torque
wrench.
Φ 6.35 (1/4")
Φ 9.52 (3/8")
Φ 12.70 (1/2")
Φ 15.88 (5/8")
5. Wrap the indoor pipe and joint of connection
pipe with insulating pipe, and then wrap it with
tape.
Step 5: install drain hose
1. Connect the drain hose to the outlet pipe of indoor unit.
61
Tightening torque (N . m)
15.7 (1.6kg.m)
29.4 (3.0kg.m)
49.0 (5.0kg.m)
73.6 (7.5kg.m)
outlet pipe
pipe joint

drain hose

union nut pipe
open-end wrench
union nut
pipe
insulatiing pipe
