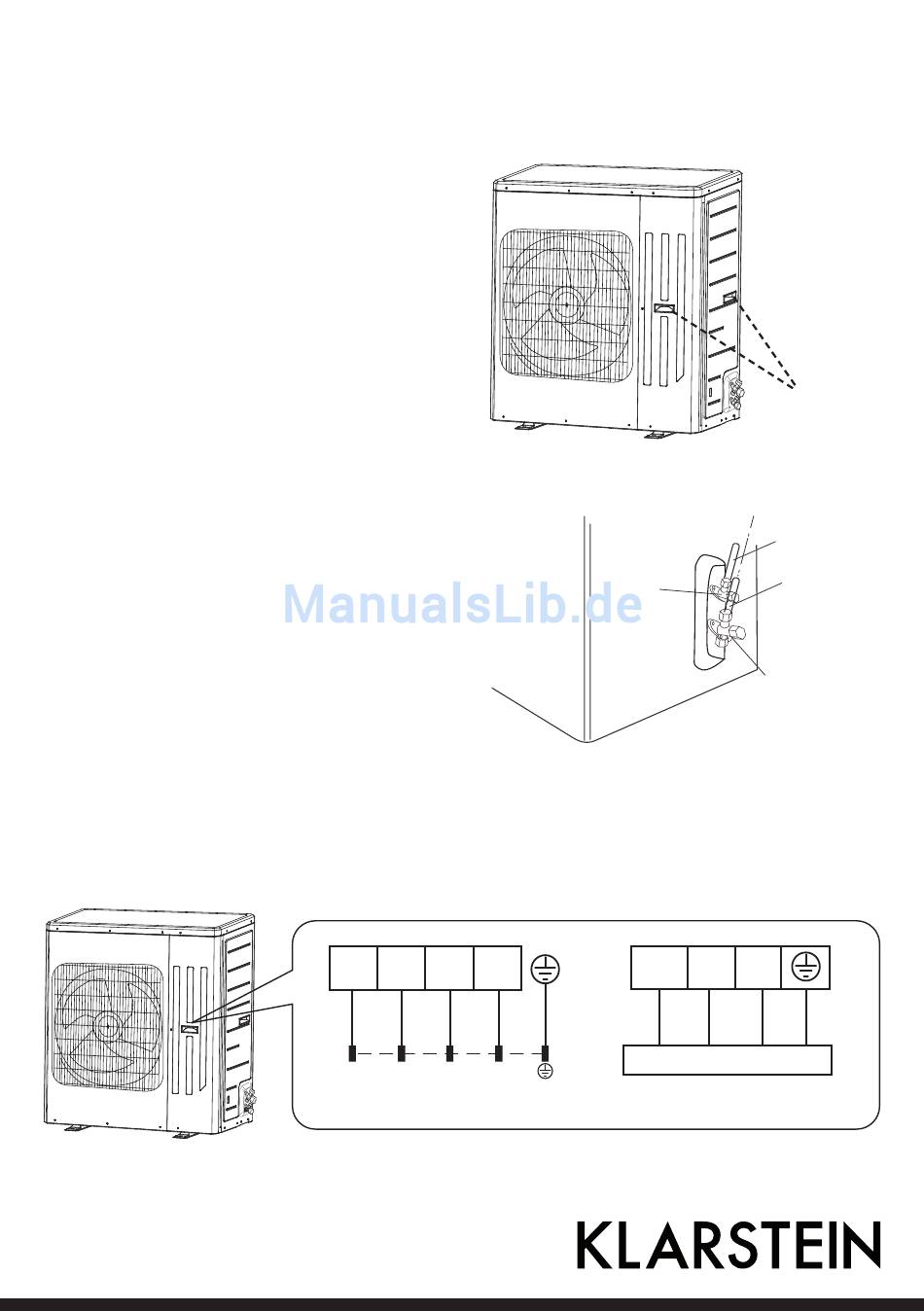

Step 4: connect indoor and outdoor pipes
1. Remove the front side plate or handle.
2. Remove the screw cap of valve and aim the
pipe joint at the bellmouth of pipe.
Step 5: connect outdoor electric wire
1. Remove the wire clip; connect the power connection wire and signal control wire (only for cooling and
heating unit) to the wiring terminal according to the color; fix them with screws.
65
L3
L1
L2
brown black violet blue
L3
L1
L2
POWER
liquid
valve
N(1)
N
yellow-
blue black
green
N
Indoor unit connection
handles
liquid pipe
gas pipe
gas valve
3
2
yellow-
brown
green
