Installation (only for approved contractors)
▶ Perform the electrical connections following the most
suitable option.
a

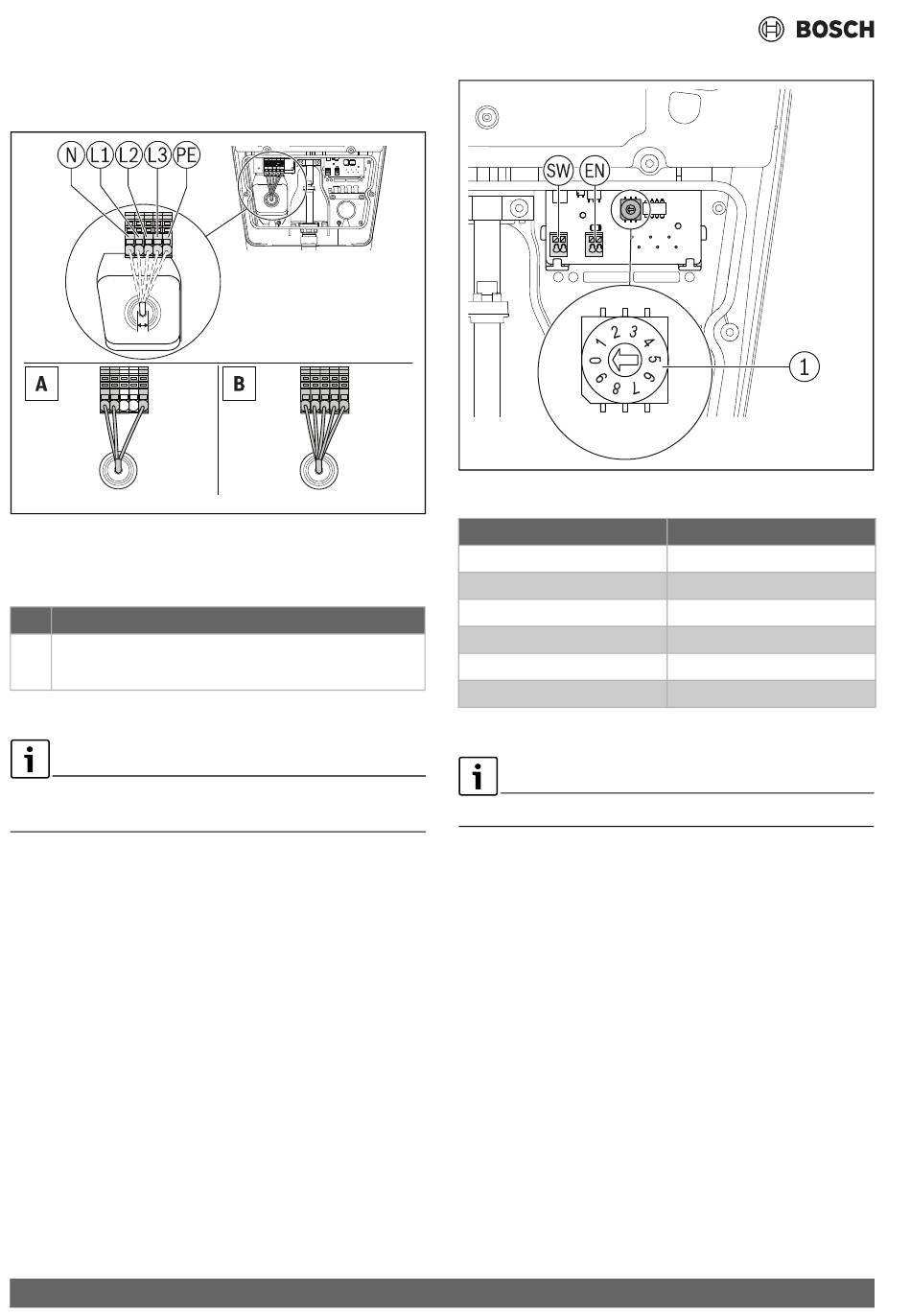

Fig. 37 Electrical connections supply
A = 1 phase installation
B = 3 phase installation

Dimensions (mm)

a 10 – 20Ø
2
max. 5 x 6 mm
Table 10 Electrical connections supply
Always use standard cables that can drive the current that has
been set up in the current selector.
▶ Use the selector to select the maximum input current of the
device.
34
Fig. 38
0010044550-001
Selector
0
1
2
3
4
5...9
Table 1
The following two steps are optional.
S3
Max. current selector (S3)
Max current selector
6A
8A
10A
12A
14A
16A
Max. current selector
Power Charge 7000i – 6721849906 (2022/04)
