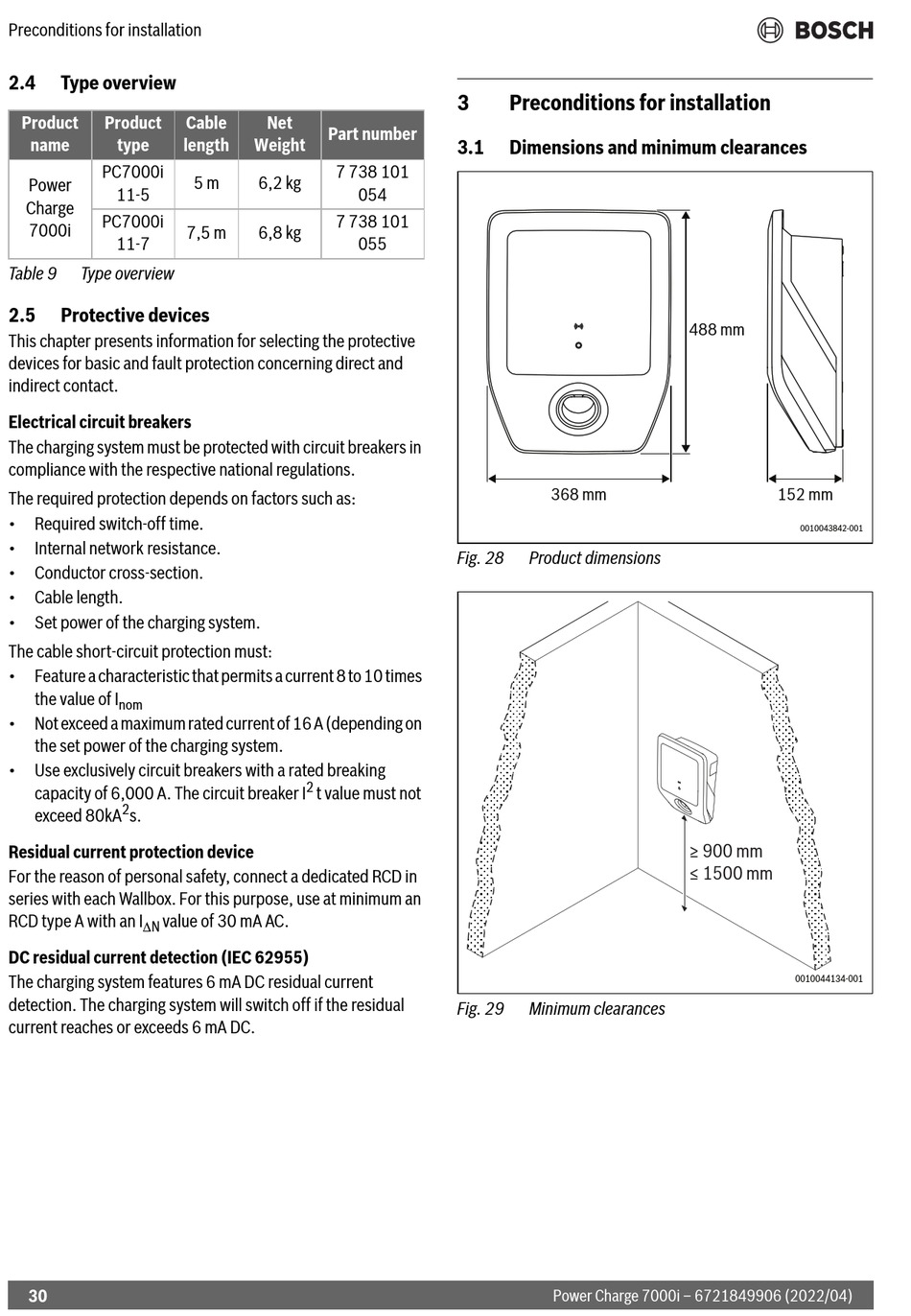

Type Overview; Protective Devices; Preconditions For Installation; Dimensions And Minimum Clearances - Bosch Power Charge 7000i Bedienungsanleitung

Preconditions for installation

2.4

Type overview

Product Product
name type
PC7000i
Power
11-5
Charge
PC7000i
7000i
11-7
Table 9 Type overview
2.5

Protective devices

This chapter presents information for selecting the protective
devices for basic and fault protection concerning direct and
indirect contact.
Electrical circuit breakers
The charging system must be protected with circuit breakers in
compliance with the respective national regulations.
The required protection depends on factors such as:
• Required switch-off time.
• Internal network resistance.
• Conductor cross-section.
• Cable length.
• Set power of the charging system.
The cable short-circuit protection must:
• Feature a characteristic that permits a current 8 to 10 times
the value of I
nom
• Not exceed a maximum rated current of 16 A (depending on
the set power of the charging system.
• Use exclusively circuit breakers with a rated breaking
capacity of 6,000 A. The circuit breaker I
2
exceed 80kA s.
Residual current protection device
For the reason of personal safety, connect a dedicated RCD in
series with each Wallbox. For this purpose, use at minimum an
RCD type A with an I value of 30 mA AC.
N
DC residual current detection (IEC 62955)
The charging system features 6 mA DC residual current
detection. The charging system will switch off if the residual
current reaches or exceeds 6 mA DC.
30
Cable Net
Part number
length Weight
7 738 101
5 m 6,2 kg
7 738 101
7,5 m 6,8 kg
2
t value must not
3 Preconditions for installation
3.1

Dimensions and minimum clearances

054
055
Fig. 28 Product dimensions
Fig. 29 Minimum clearances
488 mm
368 mm
≥ 900 mm
≤ 1500 mm
Power Charge 7000i – 6721849906 (2022/04)
152 mm
0010043842-001
0010044134-001
