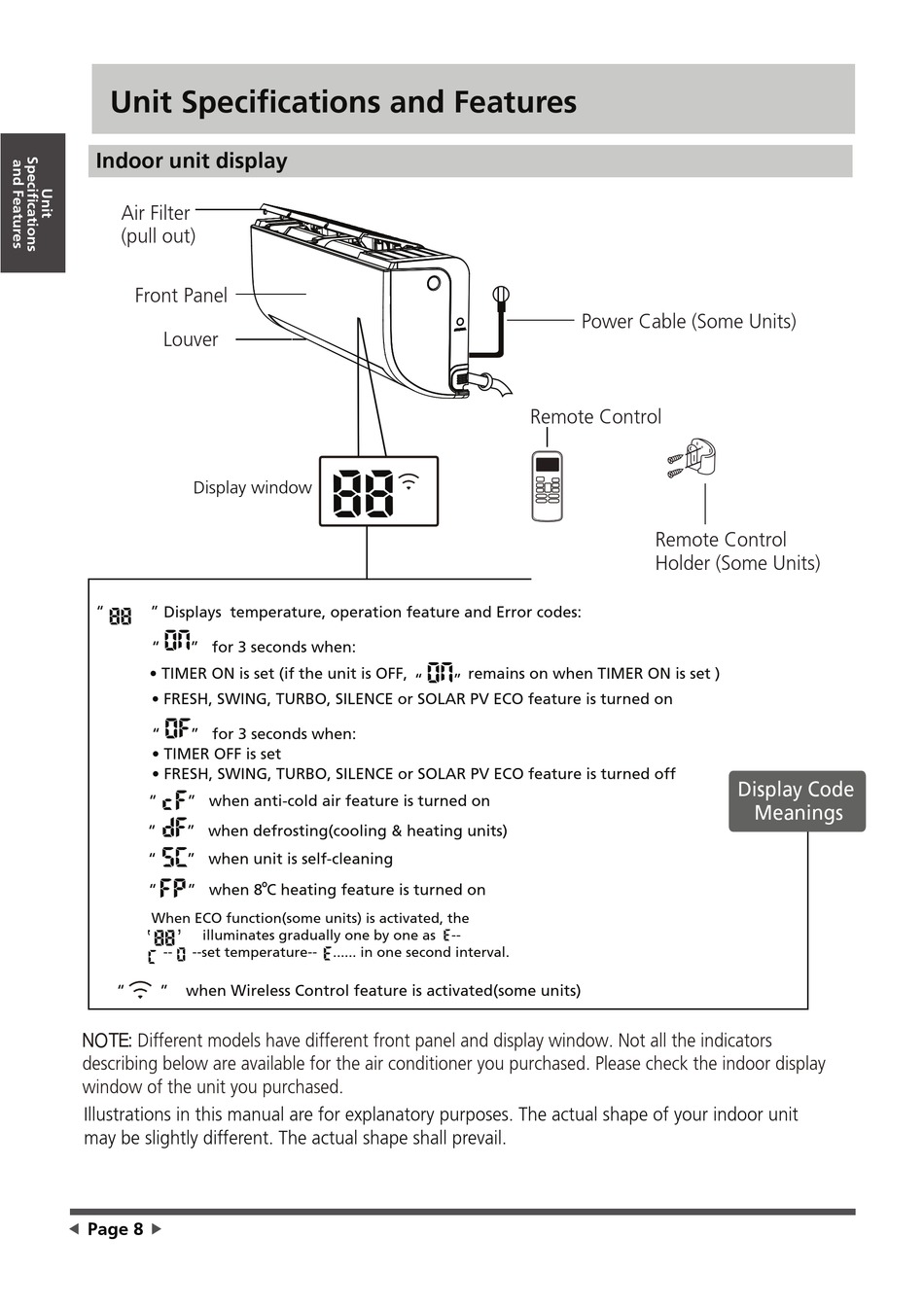

Unit Specifications and Features

Indoor unit display

Air Filter
(pull out)
Front Panel
Louver
Display window
" " Displays temperature, operation feature and Error codes:
" " for 3 seconds when:
• TIMER ON is set (if the unit is OFF,
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned on
" " for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned off
" " when anti-cold air feature is turned on
" " when defrosting(cooling & heating units)
" " when unit is self-cleaning
" " when 8 C heating feature is turned on
,
, When ECO function(some units) is activated, the
illuminates gradually one by one as
-- --set temperature--
" " when Wireless Control feature is activated(some units)
NOTE: Different models have different front panel and display window. Not all the indicators
describing below are available for the air conditioner you purchased. Please check the indoor display
window of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
Page 8
 
remains on when TIMER ON is set )
" "
--
...... in one second interval.
Power Cable (Some Units)
Remote Control
Remote Control
Holder (Some Units)
Display Code
Meanings
