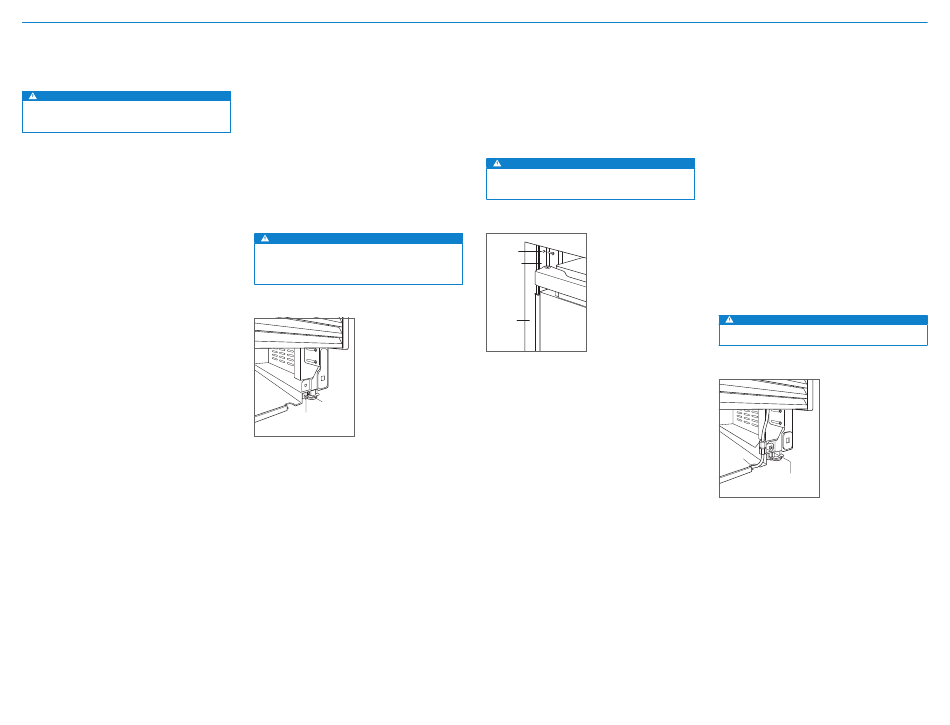

Installation
Placement
CAUTION
Before moving the unit into position, secure the door/
drawers closed and protect any finished flooring.
Use an appliance dolly to move the unit near the opening.
The front leveling legs are extended below the front rollers
to improve stability during placement. Once the unit is
placed in front of the opening, completely retract the front
leveling legs to allow the unit to be rolled into position.
The front and rear leveling legs can be adjusted from the
front once the unit is positioned.
If the unit has been on its back or side, it must stand
upright for a minimum of 24 hours before connecting
power.
Plug the power cord into the grounded outlet and roll the
unit into position. Verify the anti-tip bracket is properly
engaged.
6 | English
Alignment
LEVELING
Once the unit is in position, the height adjustment can be
made from the front. Using a Phillips drive, turn clockwise
to raise the unit or counterclockwise to lower. Use the
lowest torque setting when using a power drill. Do not turn
the leveling legs by hand. Refer to the illustration below.
When the unit is properly leveled, door/drawer adjust-
ments are less likely to be necessary.
IMPORTANT NOTE: Level the unit to the floor, not the sur-
rounding cabinetry. This could affect the operation of the
unit, such as door closing.
WARNING
To reduce the possibility of the unit tipping forward,
the front leveling legs must be in contact with the
floor.
FRONT
ADJUSTMENT
REAR
ADJUSTMENT
Leveling
ANCHORING
Adjust the depth of the unit to fit flush with the surround-
ing cabinetry. Once aligned, verify the door/drawers open
properly, then install the #8 x 13 mm flat-decorative head
screws in each side trim.
WARNING
To avoid a hazard due to instability of the appliance,
it must be fixed in accordance with the instructions.
SCREW
SIDE TRIM
CABINETRY
FACE
FRAME
PANEL
FRONT OF
THICKNESS
UNIT
Anchoring
Water Line
Approximately .9 m of 6.4 mm plastic tubing is connected
to the unit with a preassembled 1/4" compression connec-
tion under the unit. The water line fitting connection kit,
provided with the unit, contains a 1/4" compression union
fitting for connection to the household water line.
Purge the water line prior to final connection to the unit.
This will remove any debris that may be present in the
tubing from installing the new water line. Connect the
plastic tubing from the unit to the house water supply line
with the fitting connection kit provided. Check all water
line fittings for leaks.
Locate the water line in the notch as shown in the illustra-
tion below.
IMPORTANT NOTE: If a reverse osmosis system is used, it
is recommended the water filtration system be bypassed
by removing the filter.
IMPORTANT NOTE: Water lines cannot be exposed to
freezing temperatures.
WARNING
Connect to potable water supply only.
NOTCH
WATER LINE
CONNECTION
Water line
