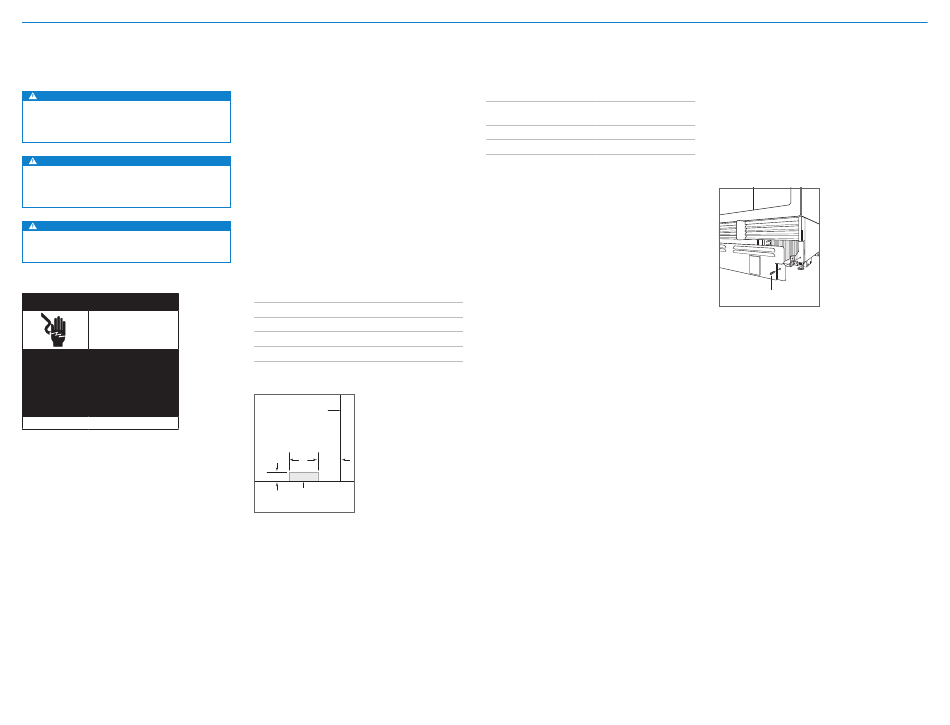

Site Preparation
Electrical Requirements
CAUTION
The outlet must be checked by a qualified electrician
to be sure it is wired with the correct polarity. Verify
the outlet is properly grounded (earthed).
WARNING
If the supply cord is damaged, it must be replaced
with a special cord or assembly available from the
manufacturer or its service agent.
WARNING
Do not use an extension cord, two-prong adapter, or
remove the power cord ground prong.
Electrical
Shock
Hazard
Plug power cord directly into a properly
grounded (earthed) outlet.
Do not defeat the grounding (earthing)
nature of the plug.
Do not use adapter or extension cord.
Failure to follow these instructions could
cause serious injury or death.
See installation instructions
4 | English

Plumbing Requirements

Installation must comply with all applicable plumbing codes.
Locate the water supply line within the shaded area shown
in the illustration below. Connect the water supply line to
the house supply with an easily accessible shut-off valve.
Do not use self-piercing valves. The water supply line must
be flush with the floor and cannot interfere with the instal-
lation of the anti-tip bracket.
Column and tall models with an ice maker or water dis-
penser feature a water filtration system. An in-line filter is
required for drawer models with an ice maker when water
conditions have a high sediment content.
A reverse osmosis system can be used provided there is
constant water pressure of 2.4–8.3 bar supplied to the unit
at all times. In this application, the water filtration system
must be bypassed. Refer to Water Filter Bypass on page 10.
A copper line is not recommended for this application.
WATER SUPPLY LOCATION
457 mm Model
610 mm Model
762 mm Model
914 mm Model
RIGHT SIDE
OF OPENING
A 152
mm
76 mm
13 mm
AREA EXTENDS
FORWARD ON FLOOR
Water supply location
PLUMBING REQUIREMENTS
Water Supply Line 6.4 mm OD copper, braided
stainless steel, or PEX tubing
Water Pressure 2.4–8.3 bar
Excess Water Line for Connection
A
76 mm
140 mm
152 mm
229 mm
Preparation
Uncrate the unit and inspect for damage. Remove the
wood base and discard the shipping bolts and brackets.
Remove and recycle packing materials. Do not discard the
kickplate, anti-tip bracket, and hardware.
(240–830 kPa)
Remove the kickplate by extracting the two mounting
.9 m
screws. Refer to the illustration below.
SCREW
Kickplate removal
