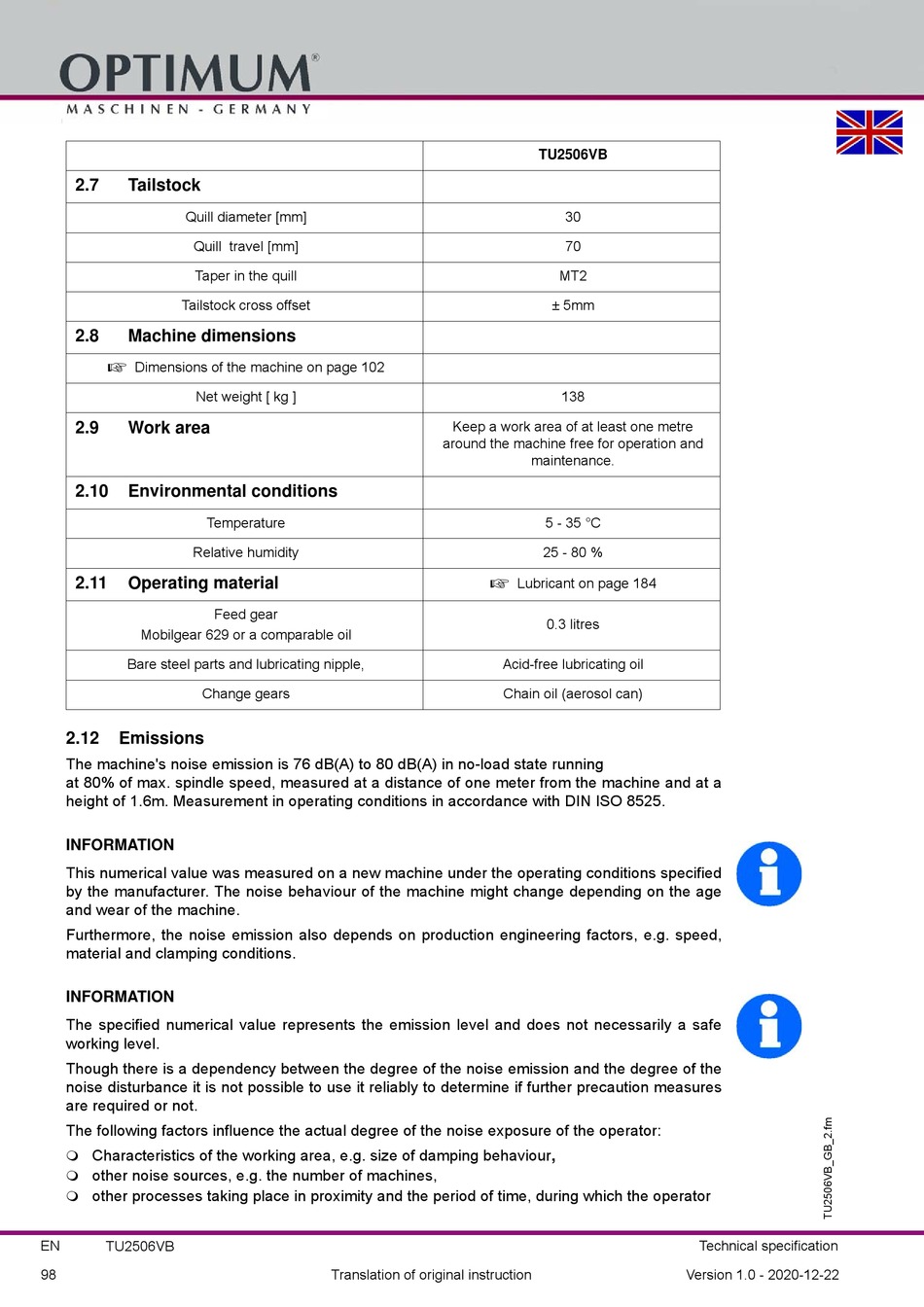

2.7
Tailstock
Quill diameter [mm]
Quill travel [mm]
Taper in the quill
Tailstock cross offset
2.8
Machine dimensions
Dimensions of the machine on page 102
Net weight [ kg ]
2.9
Work area
2.10
Environmental conditions
Temperature
Relative humidity
2.11
Operating material
Feed gear
Mobilgear 629 or a comparable oil
Bare steel parts and lubricating nipple,
Change gears
2.12
Emissions
The machine's noise emission is 76 dB(A) to 80 dB(A) in no-load state running
at 80% of max. spindle speed, measured at a distance of one meter from the machine and at a
height of 1.6m. Measurement in operating conditions in accordance with DIN ISO 8525.
INFORMATION
This numerical value was measured on a new machine under the operating conditions specified
by the manufacturer. The noise behaviour of the machine might change depending on the age
and wear of the machine.
Furthermore, the noise emission also depends on production engineering factors, e.g. speed,
material and clamping conditions.
INFORMATION
The specified numerical value represents the emission level and does not necessarily a safe
working level.
Though there is a dependency between the degree of the noise emission and the degree of the
noise disturbance it is not possible to use it reliably to determine if further precaution measures
are required or not.
The following factors influence the actual degree of the noise exposure of the operator:
Characteristics of the working area, e.g. size of damping behaviour,
other noise sources, e.g. the number of machines,
other processes taking place in proximity and the period of time, during which the operator
EN
TU2506VB
98
Keep a work area of at least one metre
around the machine free for operation and
Acid-free lubricating oil
Chain oil (aerosol can)
Translation of original instruction
TU2506VB
30
70
MT2
± 5mm
138
maintenance.
5 - 35 °C
25 - 80 %
Lubricant on page 184
0.3 litres
Version 1.0 - 2020-12-22
Technical specification
