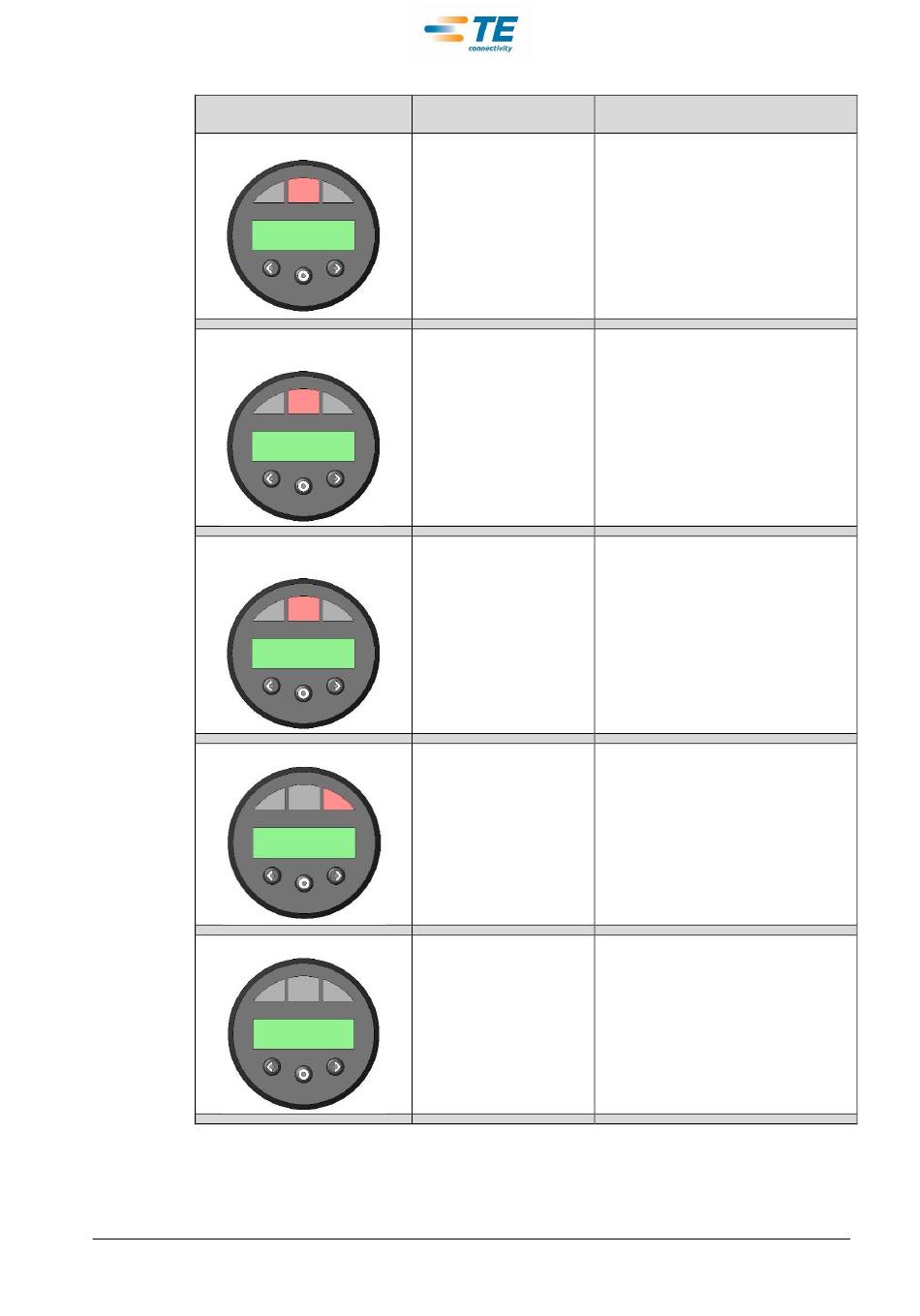

Error Message
Red LED is permanently lit
Red LED is permanently lit
+ Display Message
Red LED is permanently lit
+ Display Message
Red LED blinks cyclically
Display Message
BDA AT-65 – 01/16
Reason
The different positions
in the
Mode"
programmed in the
right order, e.g. Value
1 „upper reduced start
point" is larger than
value 2 „pre-crimp
holding point" of the
contact.
Oil temperature is too
high or oil level is
OIL-NIV
below the minimum.
OIL-TEMP
Pressure sensor
provides incorrect
values or a cable
P-SENSOR
FAILURE
broke.
Stroke measuring
system is faulty. No
signal can be received.
The cylinder cannot be
moved.
CAN communication
for control or CAN IO
PLC / CAN
ERROR!
control failed.
Seite/Page/Página 105 / 115
Remedial Measure and
Explanation
"Program
have not been
Pay attention to the right
positioning of the heights.
The order has to be as follows:
Value 1 < Value 2 < Value 3
Cool down hydraulic unit and
search for the reason of the
temperature rise!
Refill hydraulic oil.
Check pressure sensor and
cables.
Restart the control system.
Check the magnetic slider.
Check whether the sensor is
connected to CAN and to power
supply.
Check the position magnet.
System has to be restarted.
Check possible sources of
interference for CAN Bus.
Restart the control system.
