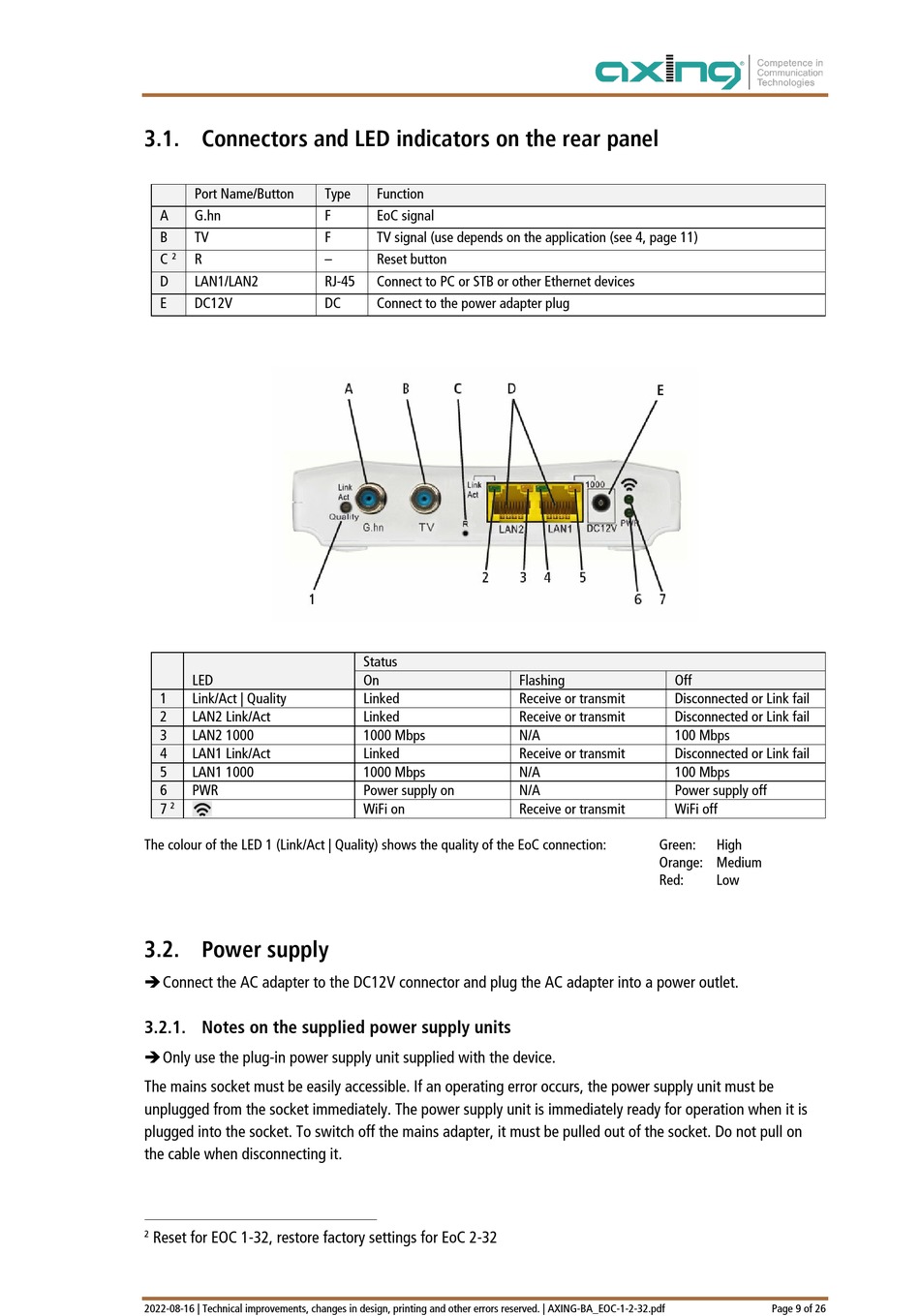

3.1. Connectors and LED indicators on the rear panel

Port Name/Button
A G.hn
B TV
C 2 R
D LAN1/LAN2
E DC12V
LED
1 Link/Act | Quality
2 LAN2 Link/Act
3 LAN2 1000
4 LAN1 Link/Act
5 LAN1 1000
6 PWR
7 2
The colour of the LED 1 (Link/Act | Quality) shows the quality of the EoC connection:

3.2. Power supply

 Connect the AC adapter to the DC12V connector and plug the AC adapter into a power outlet.

3.2.1. Notes on the supplied power supply units

 Only use the plug-in power supply unit supplied with the device.
The mains socket must be easily accessible. If an operating error occurs, the power supply unit must be
unplugged from the socket immediately. The power supply unit is immediately ready for operation when it is
plugged into the socket. To switch off the mains adapter, it must be pulled out of the socket. Do not pull on
the cable when disconnecting it.
Reset for EOC 1-32, restore factory settings for EoC 2-32
