Charging the battery while inserted in the e-bike
1. Switch off the e-bike system (see "5.6 Switching the e-bike system off").

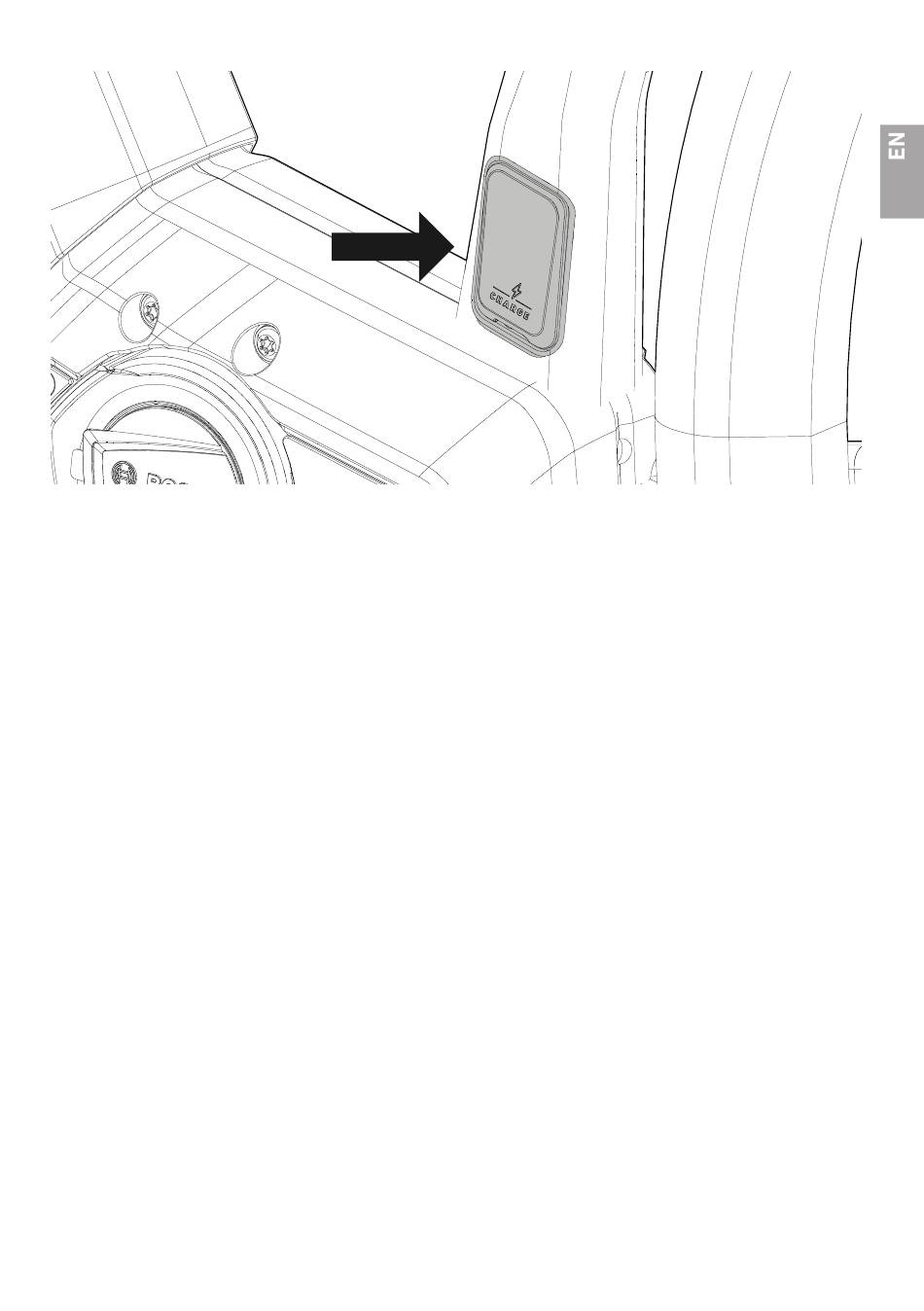

2. Clean the cover of the charging socket and the area around it.
→ Make sure the charging port doesn't get dirty when plugging in the charging cable.
3. Remove the cover of the charging port.
4. Plug the charging cable into the port on the bicycle frame.
5. Plug the mains cable into the socket on the charger.
6. Connect the mains cable to a 230 V mains socket.
→ Once the mains cable is connected, the battery is charged automatically.
→ During the charging process, the charge indicator LEDs on the control unit will light up.
Each permanently lit LED is equivalent to approximately 20% capacity. The flashing LED indicates the charging of
the next 20%.
→ When the e-bike battery is fully charged, the LEDs go out. This means that charging is completed.
7. Disconnect the charging cable from the port, if need be, and unplug the mains cable.
