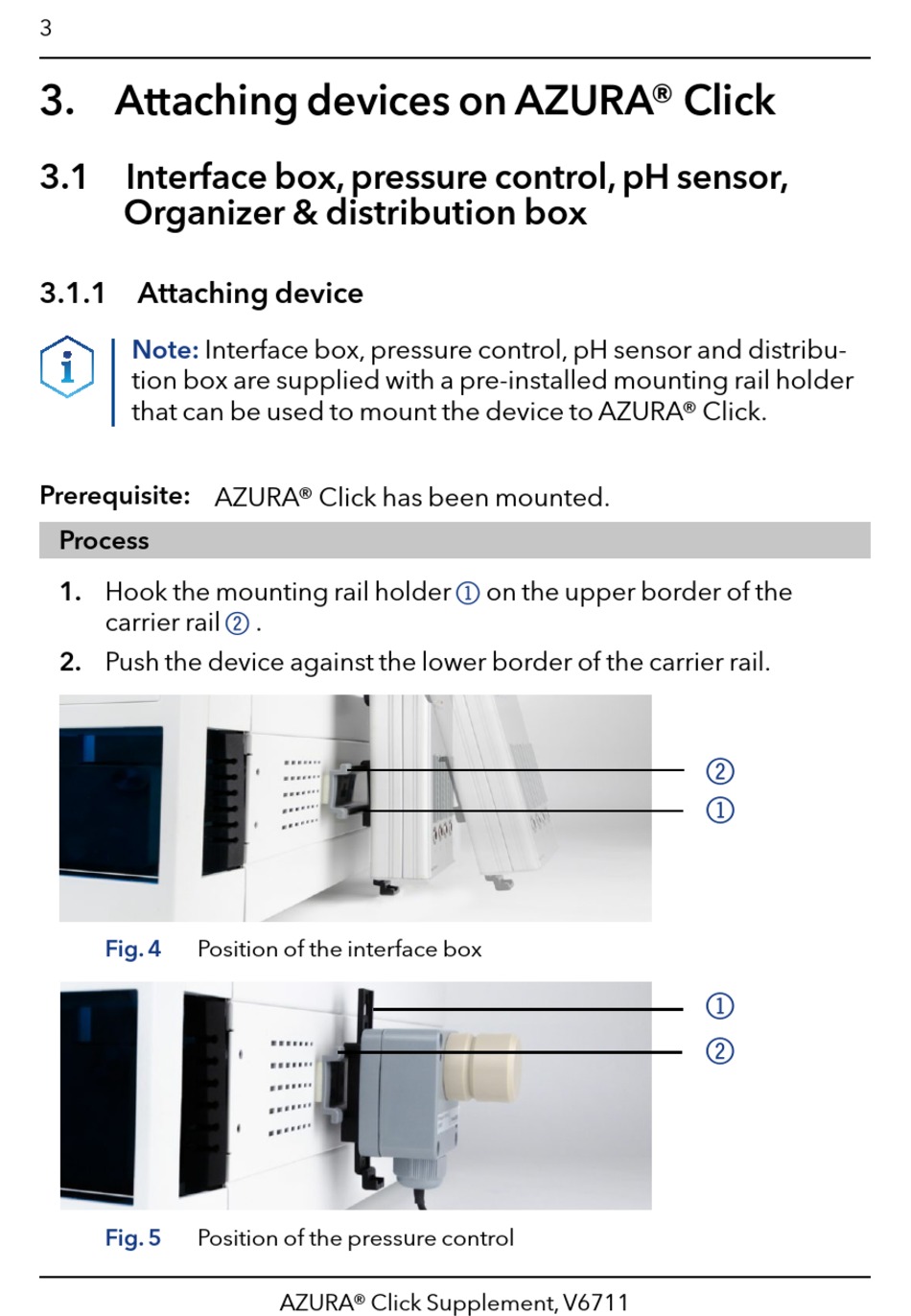

3. Attaching devices on AZURA® Click
3.1 Interface box, pressure control, pH sensor,
Organizer & distribution box

3.1.1 Attaching device

Note:
Interface box, pressure control, pH sensor and distribu-
tion box are supplied with a pre-installed mounting rail holder
that can be used to mount the device to AZURA® Click.
Prerequisite:
Process
1. Hook the mounting rail holder
carrier rail
2. Push the device against the lower border of the carrier rail.
Fig. 4
Position of the interface box
Fig. 5 Position of the pressure control
AZURA® Click has been mounted.
.
2
AZURA® Click Supplement, V6711
1 on the upper border of the
2
1
1
2
