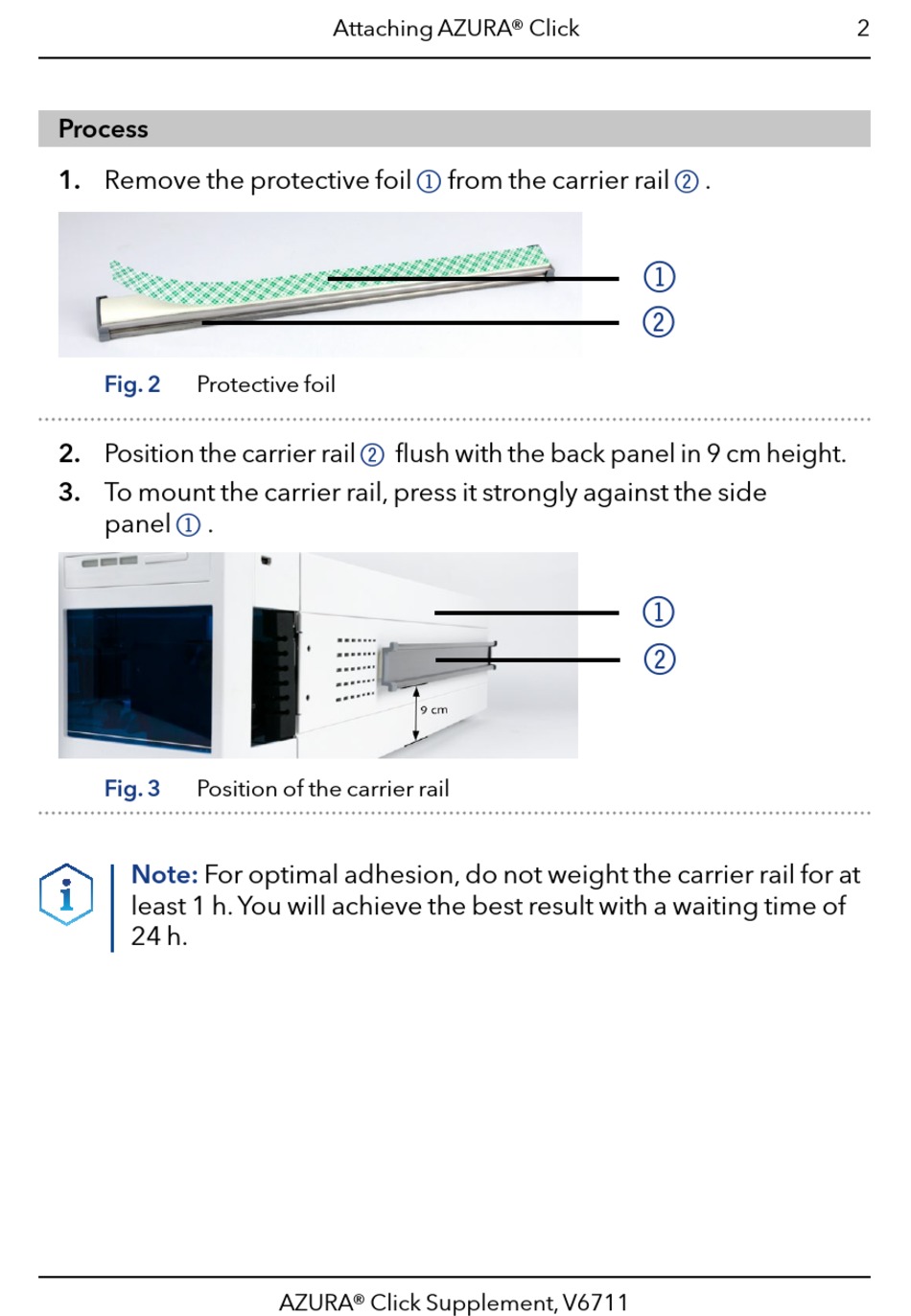

Process
1. Remove the protective foil
Fig. 2 Protective foil
2. Position the carrier rail
3. To mount the carrier rail, press it strongly against the side
panel .
1
Fig. 3 Position of the carrier rail
Note: For optimal adhesion, do not weight the carrier rail for at
least 1 h. You will achieve the best result with a waiting time of
24 h.
Attaching AZURA® Click
from the carrier rail
1
flush with the back panel in 9 cm height.
2
AZURA® Click Supplement, V6711
.
2
1
2
1
2
2
