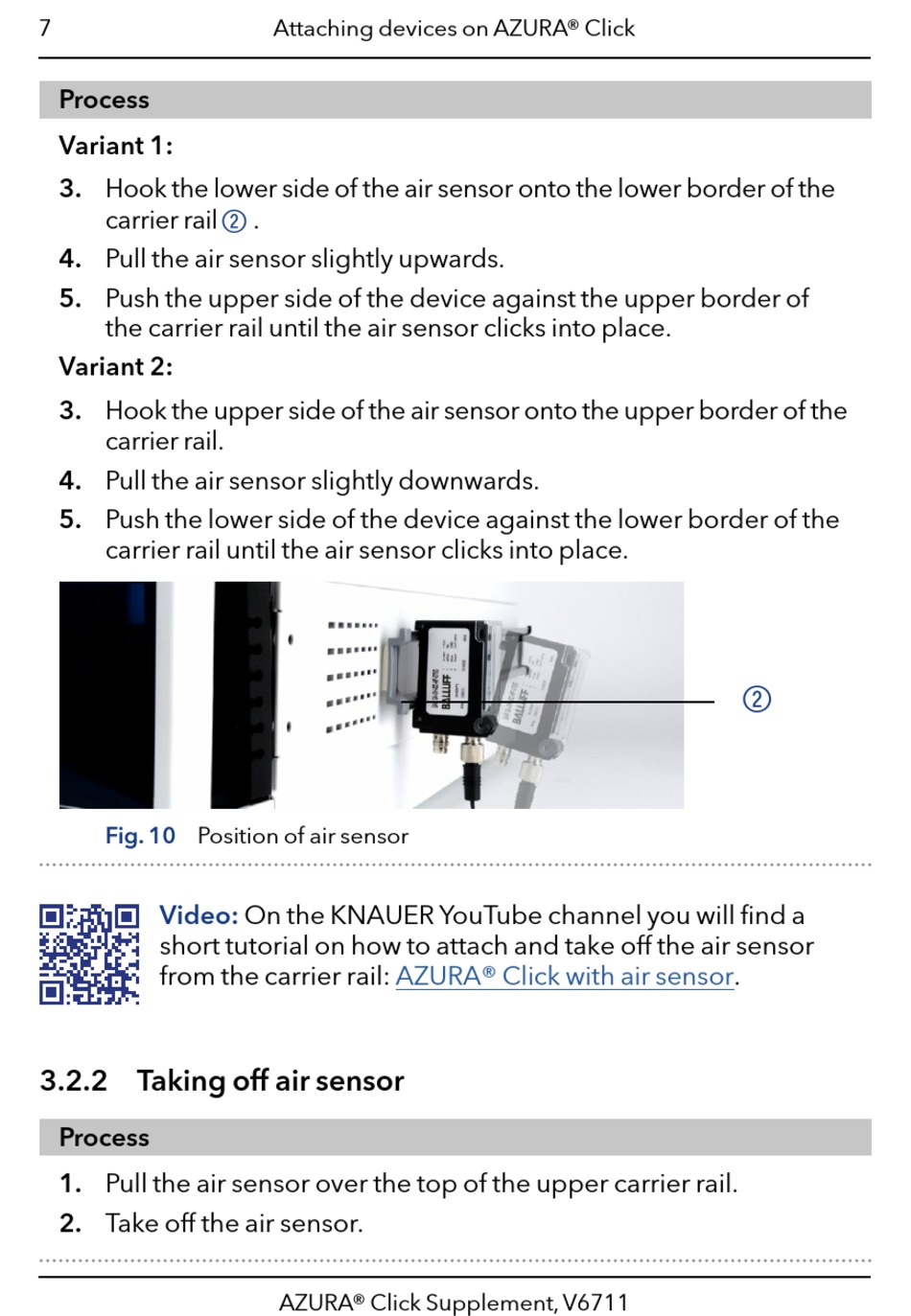

7
Process
Variant 1:
3. Hook the lower side of the air sensor onto the lower border of the
carrier rail
4. Pull the air sensor slightly upwards.
5. Push the upper side of the device against the upper border of
the carrier rail until the air sensor clicks into place.
Variant 2:
3. Hook the upper side of the air sensor onto the upper border of the
carrier rail.
4. Pull the air sensor slightly downwards.
5. Push the lower side of the device against the lower border of the
carrier rail until the air sensor clicks into place.
Fig. 10 Position of air sensor
Video:
short tutorial on how to attach and take off the air sensor
from the carrier rail:

3.2.2 Taking off air sensor

Process
1. Pull the air sensor over the top of the upper carrier rail.
2. Take off the air sensor.
Attaching devices on AZURA® Click
.
2
On the KNAUER YouTube channel you will find a
AZURA® Click Supplement, V6711
AZURA® Click with air
2
sensor.
