ASSEMBLY MANUAL

CAUTION! Follow the steps below during the assembly and use tools supplied with
the product.
Prepare sufficient space for the assembly operation. It is advisable to assemble the product with
another person because of the weight of some elements.

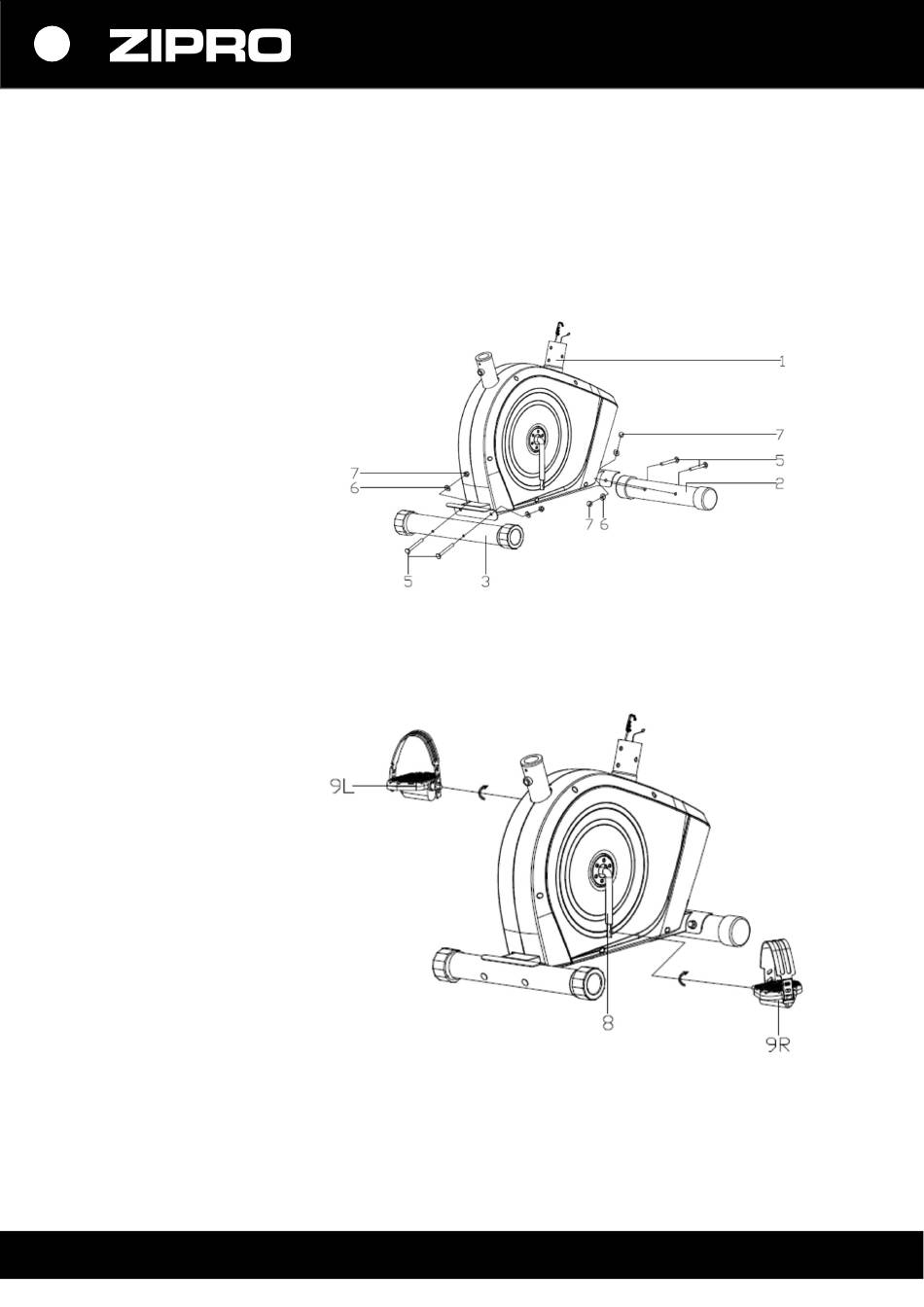

1. Install the front and
rear base
Fix the rear (3) and front
base (2) to the main frame
(1) using bolts (5), curved
washers (6), and nuts (7).
ATTENTION! Remove any
plastic or cardboard safety
inserts before assembly.
2. Install the right and left
pedal
Screw the left and right
pedal (9L/R) to the crank (8).
Screw the right pedal bolt
(9R) on clockwise. Screw the
left pedal bolt (9L)
counterclockwise.
Note: The right pedal is
marked 'R' and the left
pedal is marked 'L'.
