ASSEMBLY MANUAL

CAUTION! Follow the steps below during the assembly and use tools supplied with the product.
Prepare sufficient space for the assembly operation.
It is advisable to assemble the product with another person because of the weight of some elements.

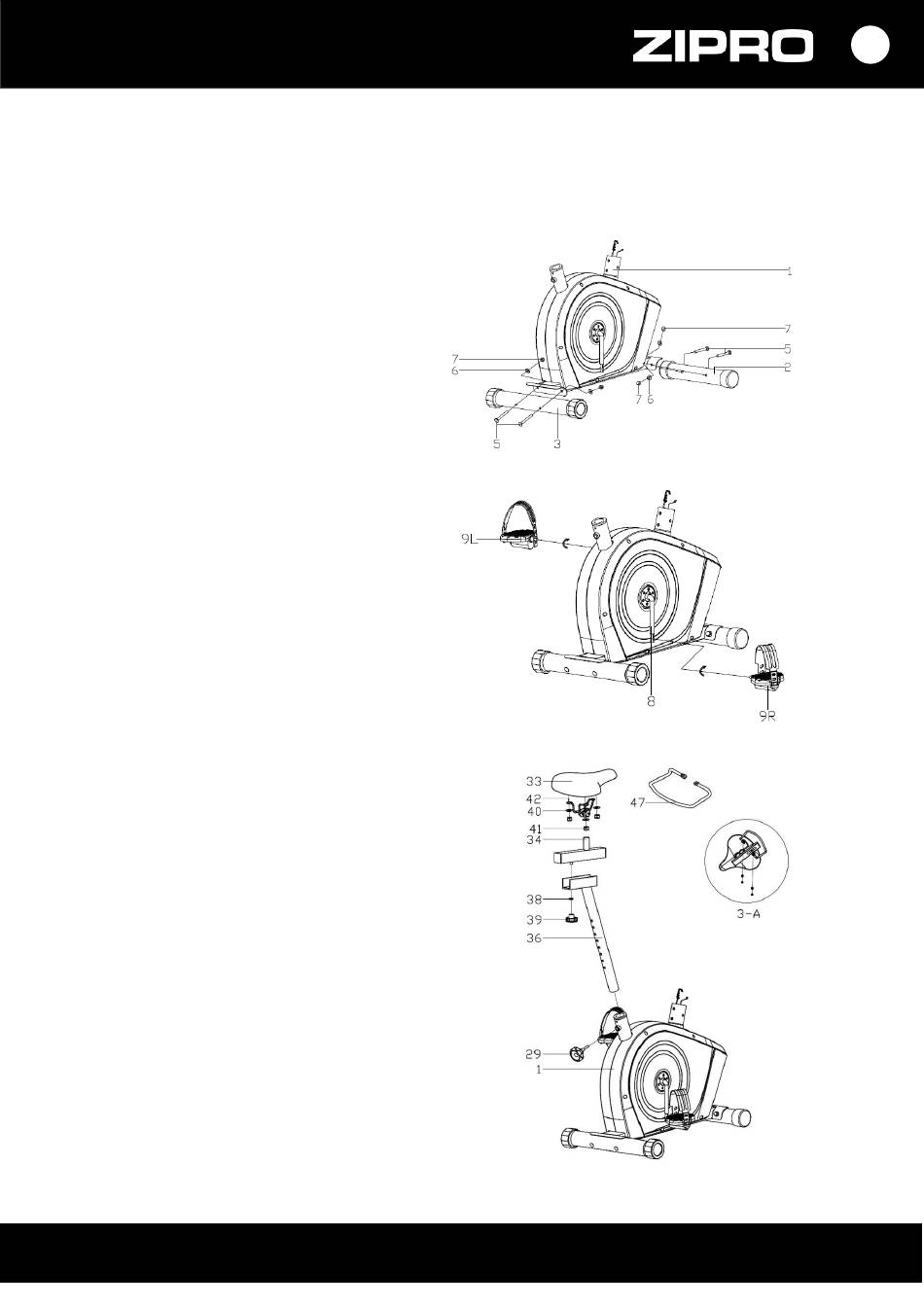

1. Install the front and rear base
Fix the rear (3) and front base (2) to the main
frame (1) using bolts (5), curved washers (6),
and nuts (7).
ATTENTION! Remove any plastic or cardboard
safety inserts before assembly.
2. Install the right and left pedal
Screw the left and right pedal (9L/R) to the
crank (8). Screw the right pedal bolt (9R) on
clockwise. Screw the left pedal bolt (9L)
counterclockwise.
NOTE! The right pedal is marked 'R' and the left
pedal is marked 'L'.
Install the saddle
3.
Fix the saddle (33) and a towel holder (47) to the
saddle guide (34) using nuts (41) and flat washers
(40). Fix the guide (34) with the saddle (34) to the
saddle post (36).
Set the saddle to the right position and lock it with
the horizontal adjustment knob (39) and washer
(38).
Slide the post (34) with the saddle (33) into the
rear part of the main frame. Position the saddle at
the desired height and lock it with the vertical
adjustment knob (29).
NOTE! Do not exceed the maximum and minimum
height when adjusting the saddle height.
NOTE! Before using the device, make sure the
saddle is stable in the guide.
