ASSEMBLY MANUAL

CAUTION! Follow the steps below during the assembly and use tools supplied with the
product.
Prepare sufficient space for the assembly operation. It is advisable to assemble the product with
another person because of the weight of some elements.

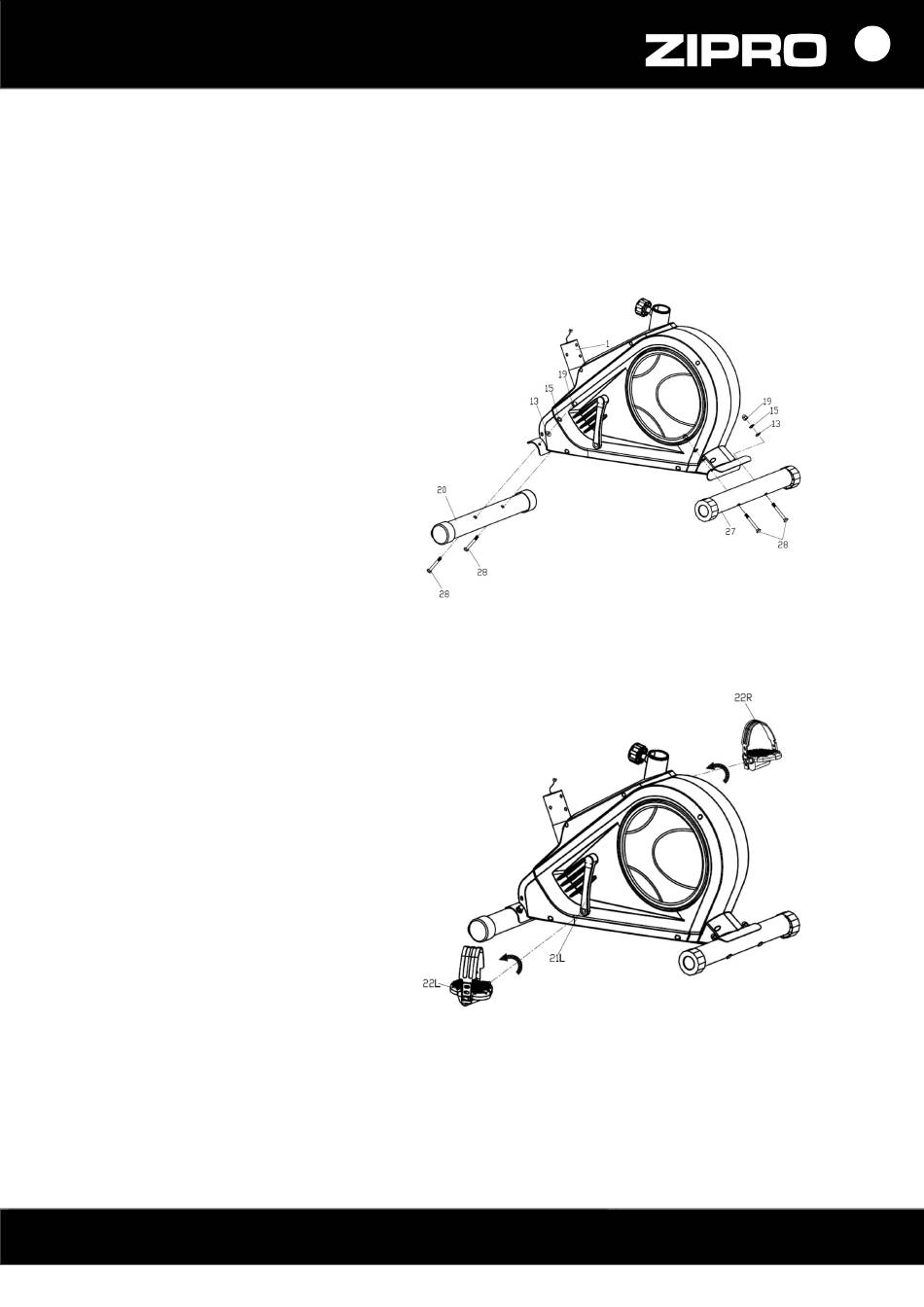

STEP 1.
Install the rear (27)
and front base (20) to the main frame
(1) using bolts (28), curved washers (13),
spring washers (15), and nuts (19).
ATTENTION! Remove any plastic
or cardboard safety inserts before
assembly.
STEP 2.
Screw the left and right pedal (22L/ R) to
the crank (21L/R). Screw the right pedal
bolt (10R) on clockwise. Screw the left
pedal (10L) counter-clockwise.
NOTE! The right pedal is marked 'R',
and the left pedal is marked 'L'.
