EN

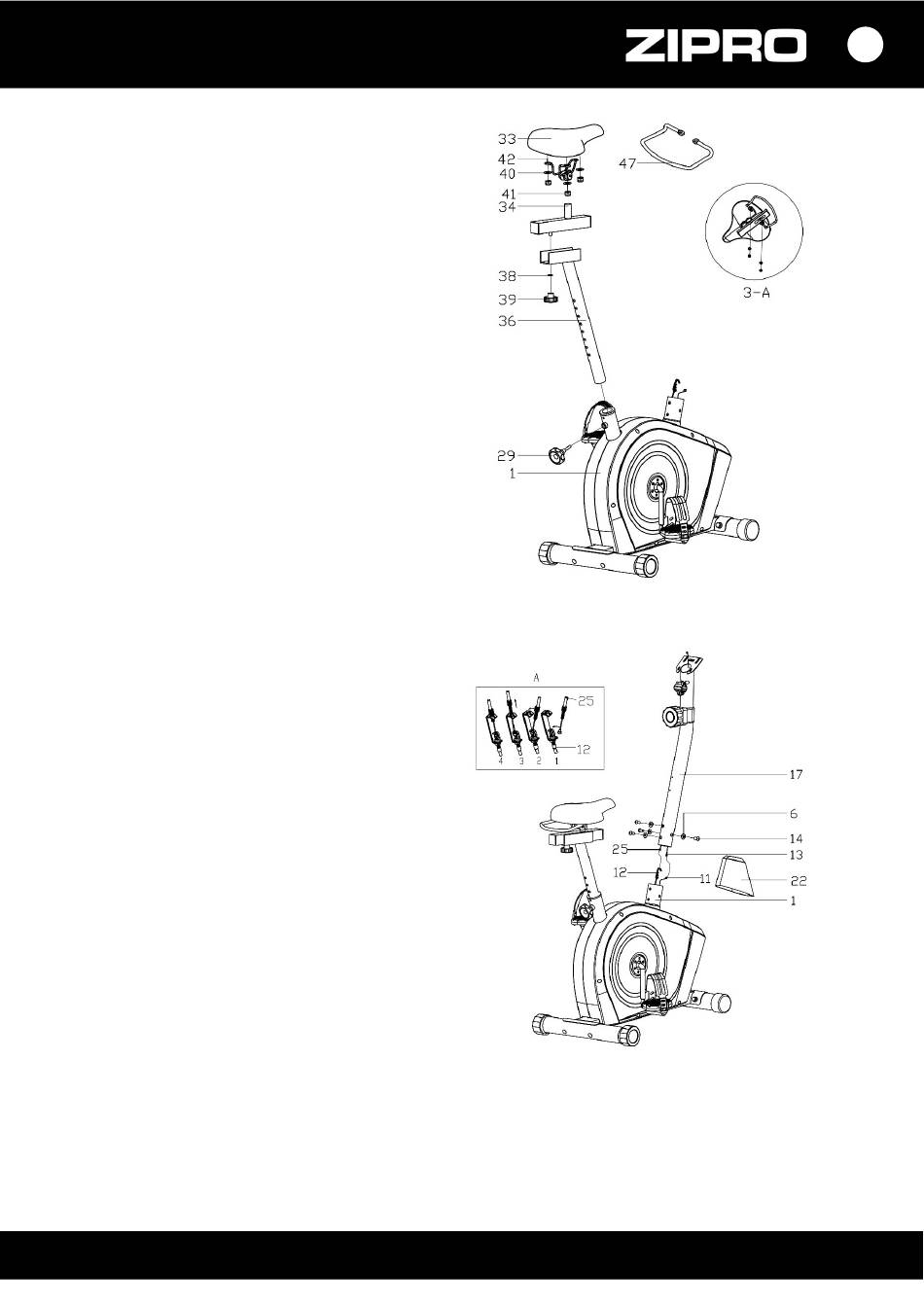

3. Install the saddle
Fix the saddle bracket (42) and a towel holder
(47) to the saddle (33) with nylon nuts (41)
and flat washers (40).
Next, fix the saddle (33) to the guide for
horizontal adjustment of the saddle (34) with
the flat washer (38) and the horizontal saddle
position knob (39).
Lock the saddle (33) with the knob at the desired
horizontal position.
Insert the saddle column (36) into the main
frame (1) and lock it at the desired height with
the saddle height knob (29).
CAUTION! Do not exceed the maximum
and minimum height on the handlebar column
when adjusting saddle height.
4. Install the handlebar column
Connect the computer cable (11) to the
connecting cable (13) and the resistance
adjustment cable (12) to the resistance
adjustment connecting cable as shown below.
