Entering / Changing a setting:
You can only make changes from the console or the onPC (on a laptop or PC).
On the console or in onPC press the button SETUP and open the NETWORK
/ MA NETWORK CONFIGURTAIONS / 2 PORT menu.
Select the 2Port Node you want – the cell in the respective row will be highlighted
in blue then. Just to make sure, press the IDENTIFY button – the LED and the
display for the selected MA2Port Node will blink. Press the button again to stop the
blinking.
Select the desired cell. If you use the right mouse button or Encoder on the
console, the respective dialog window for entries will open immediately.

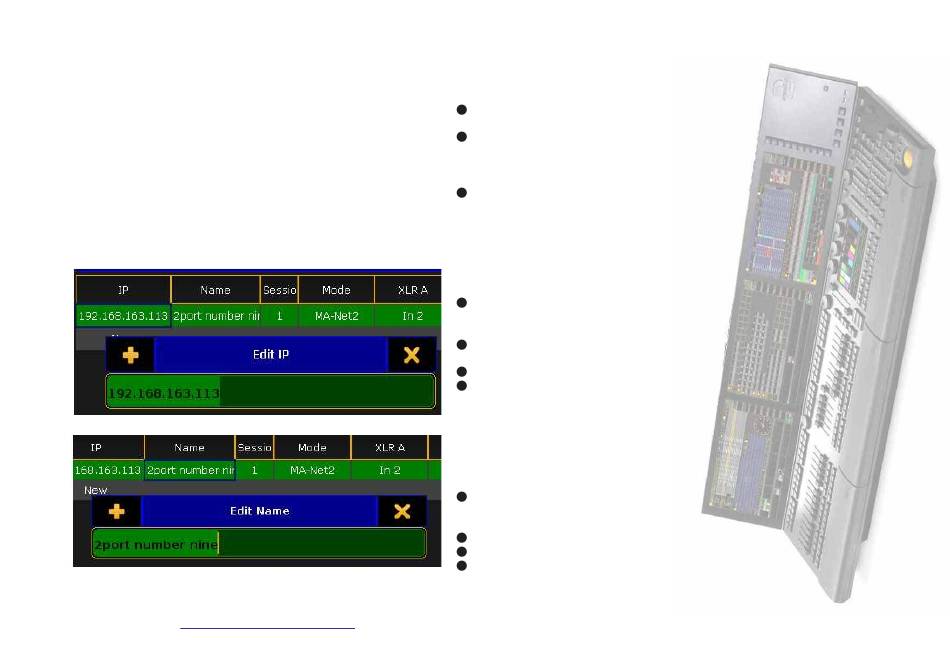

IP-address:
Here, you can set the IP-address for the MA2Port Node. The first 3 groups must
correspond to the other elements in the same network. The fourth group must be
set individually for this device and must be unique in this network.
In the SETUP/ NETWORK / MA NETWORK CONFIGURATIONS / 2PORT
menu, select the IP cell making a mouse click or pressing the Encoder – this
will automatically open the edit box.
In the edit box, enter the IP-address – use a dot to separate the number
groups consisting of 3 digits each.
Confirm using the PLEASE button. This will automatically close the edit box.
Make sure that the desired IP-address appears in the IP cell.
Name: 18 digits max. (incl. special characters) - optional, entries are not
mandatory.
Here, you can enter the name of the MA2Port Node. This entry helps you to
discern the nodes when using several of them. You can, however, use the same
name more than once. If you make no entry, the default name will appear.
In the SETUP / NETWORK / MA NETWORK CONFIGURATIONS / 2PORT
menu, select the NAME cell making a mouse click or pressing the Encoder –
this will automatically open the edit box.
Enter the name in the respective edit box.
Confirm using the PLEASE button. This will automatically close the edit box.
Make sure that the desired name appears in the NAME cell.
