Display - MA lighting 2Port Node Bedienungsanleitung

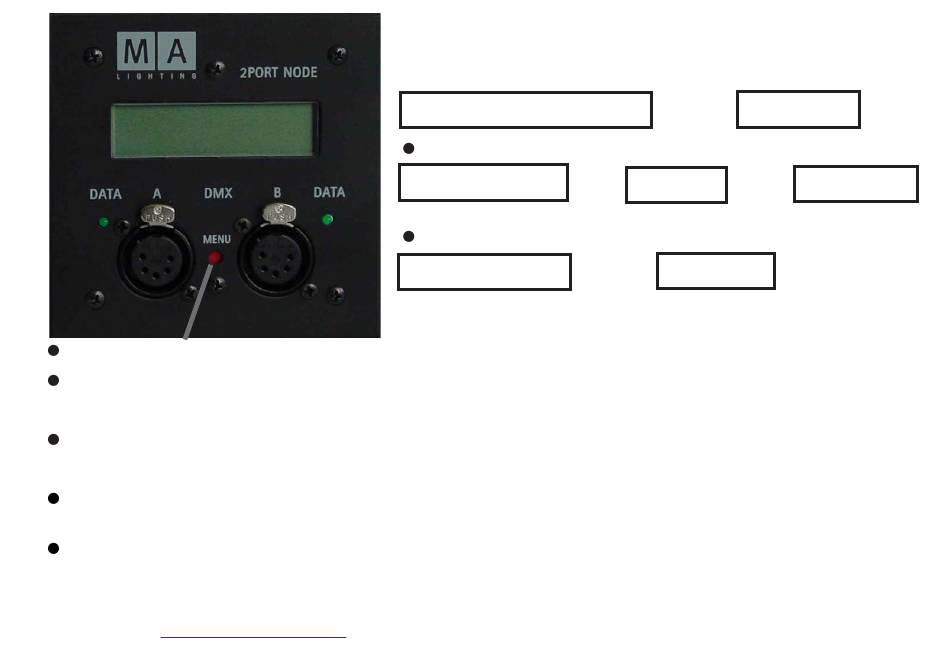

Keep the button MENU pressed and....
...release after approx. 2 seconds
...after approx. 5 seconds IDENTIFY MODE is shown on the display. Now release the button.
...after approx. 8 seconds....
- The MA2Port Node shows in sequence all possible modes. If the desired mode is shown, release the button.
...after approx.10 seconds RESET / RESTORE MODE is shown on the display.
Technischer Service: tech.support@malighting.com; +49.5251.688865-30 Emergency Line: +49.5251.688865-99
MA Lighting Technology GmbH . Dachdeckerstr. 16 . D-97297 Waldbüttelbrunn

Display

The MA2Port Node display will only show the most important settings. For configuring a
node, you have to use a grandMA console or the „onPC" software.
after switching the device on, the display will show:
Name of MA2Port Node
Universe and Merge Mode Port1 and Port2
pressing the MENU button briefly
Session ID or ARTNET ID
pressing the MENU button briefly
IP Adress of MA2Port Node
After a brief moment, the display will switch back to the first menu.
The first line will show the MA2Port Node serial number and the software version.
The second line will show the MA2Port Node type.
empty = onPC not available / onPC = 512 parameter version / onPC_PRO = 1,024 parameter version
The green LED and the display will blink to identify, and the console menu, the MA2Port Node line will blink in green.
Pressing the MENU or IDENTIFY button on the console or in onPC will stop the blinking.
- now release the button.
- or press the button anew
Mode
e.g.
e.g.
Will reset the MA2Port Node, i.e. will reboot the device. All settings will be kept.
Will restore the MA2Port Node to factory default.
MA Node No1
e.g. 2 LoTP 4 OUT
MA NET 2 ARTNET
Session ID:3 or 2 .102.240.3
IP-ADDRESS
192.168.0.213
43 43 43 43
43
