DMX 4 -OUT MERGE HTP oder LTP oder LoTP
The left console and
the both 2Ports are
within a

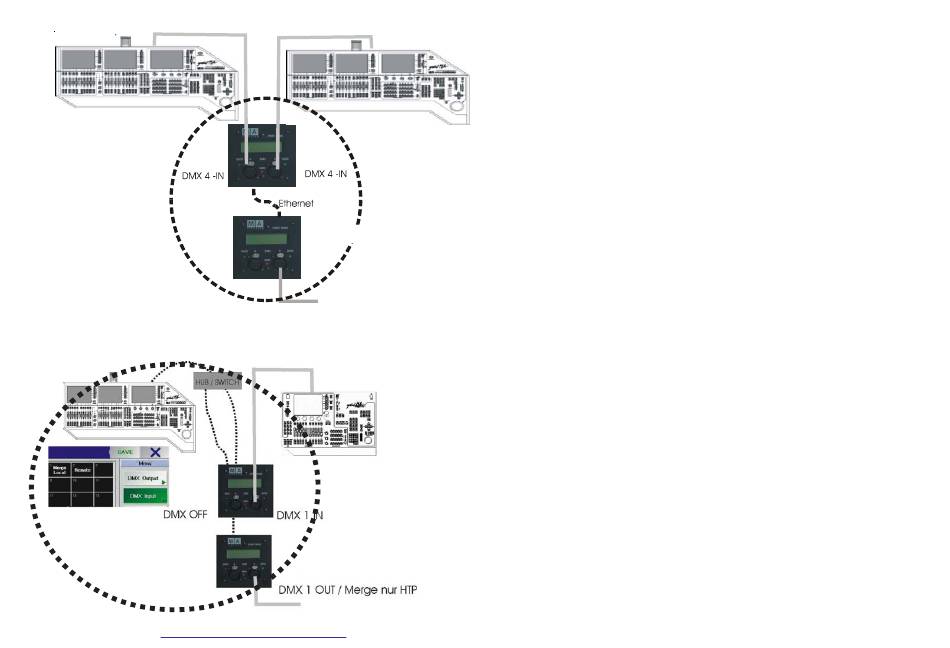

Example of use 6
If a universe is used multiple times in the "IN" mode (in this example
the universe 4), the "OUT" of this universe must be set to a merge -
mode (HTP, LTP or LoTP). This means, when "OUT" is in merge mode
"NONE", malfunction will occure.
Example of use 7
In this application example 7 – an output Universe is being controlled
by the left console – the requirements for the stand-alone mode are not
fulfilled, and only a restricted Merge mode is available.
If on the left console, you set Universe 1 to LOCAL MERGE (in the
menu TOOLS / DMX CONFIGURATION / DMX INPUT) you will only
have the HTP option for the Merge mode.
session
