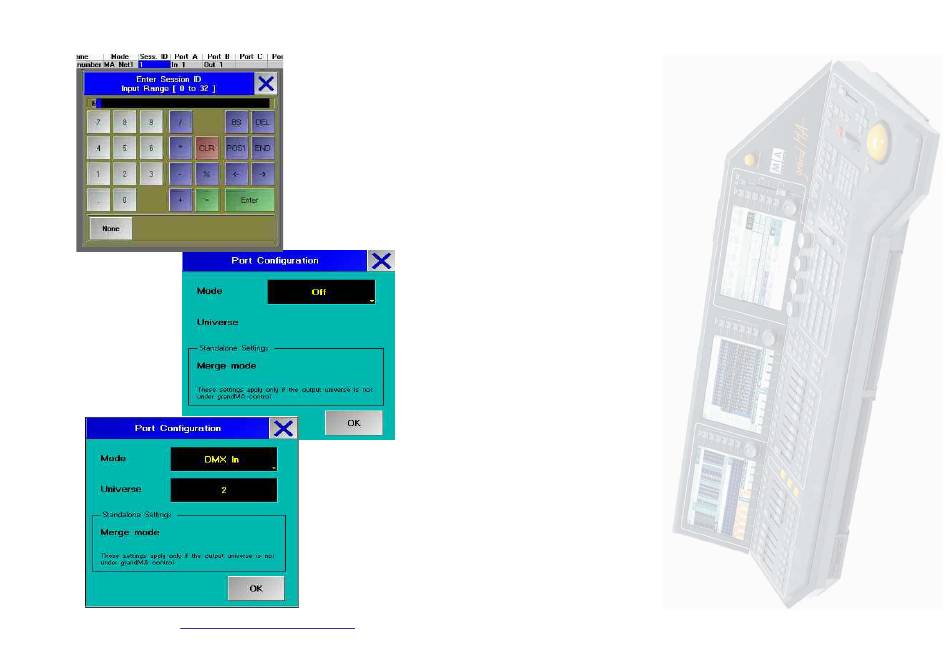

Session ID:
Here, you can set the Session ID to start the session between the 2Port Node and the
console or the onPC. For all devices involved in the session, you must set the same
Session ID.
If ARTNET is activated this cell is inactive.
.
In stand-alone mode, only the 2Port Nodes must have the same session number –
the consoles will only transmit via DMX outputs and must not be involved in the
).
session (over the network
Settings for Port 1 and/or Port 2
For both ports, you can define different settings.
NOTE: You can configure the ports as IN or OUT independently form the port features
(DMX-in plug or DMX-out sockets). The appropriate adapters and cables are available
from MA LIGHTING.
Mode:
OFF
When selecting OFF as setting, no DMX signal will be output. With this setting, the
Merge mode will not be available.
DMX IN
For DMX-Input. Can be connected with any DMX-512-producing console.
Use DMX IN:
- for output at another 2Port (DMX OUT)
or
- as remote of another console
or
- for mixing (merge) of 2 universe
...together with grandMA1
