Mounting location

TMR31

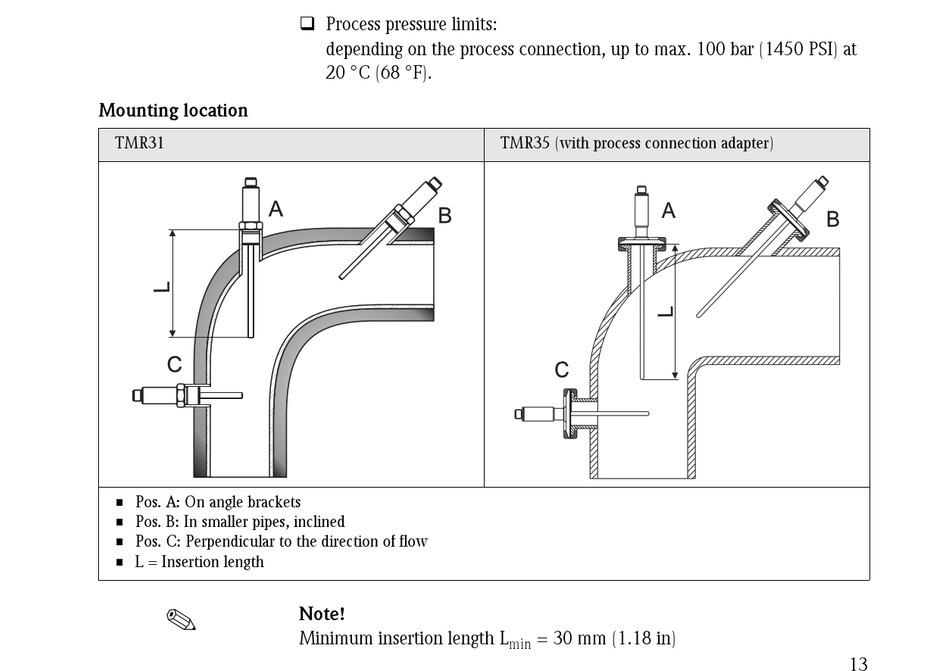

• Pos. A: On angle brackets
• Pos. B: In smaller pipes, inclined
• Pos. C: Perpendicular to the direction of flow
• L = Insertion length
!
Process pressure limits:
depending on the process connection, up to max. 100 bar (1450 PSI) at
20 °C (68 °F).
Note!
Minimum insertion length L
TMR35 (with process connection adapter)
= 30 mm (1.18 in)
min
