6. OPERATION

After you connected the device to the mains, the DMX Commander is ready for use.

Quick Start instructions

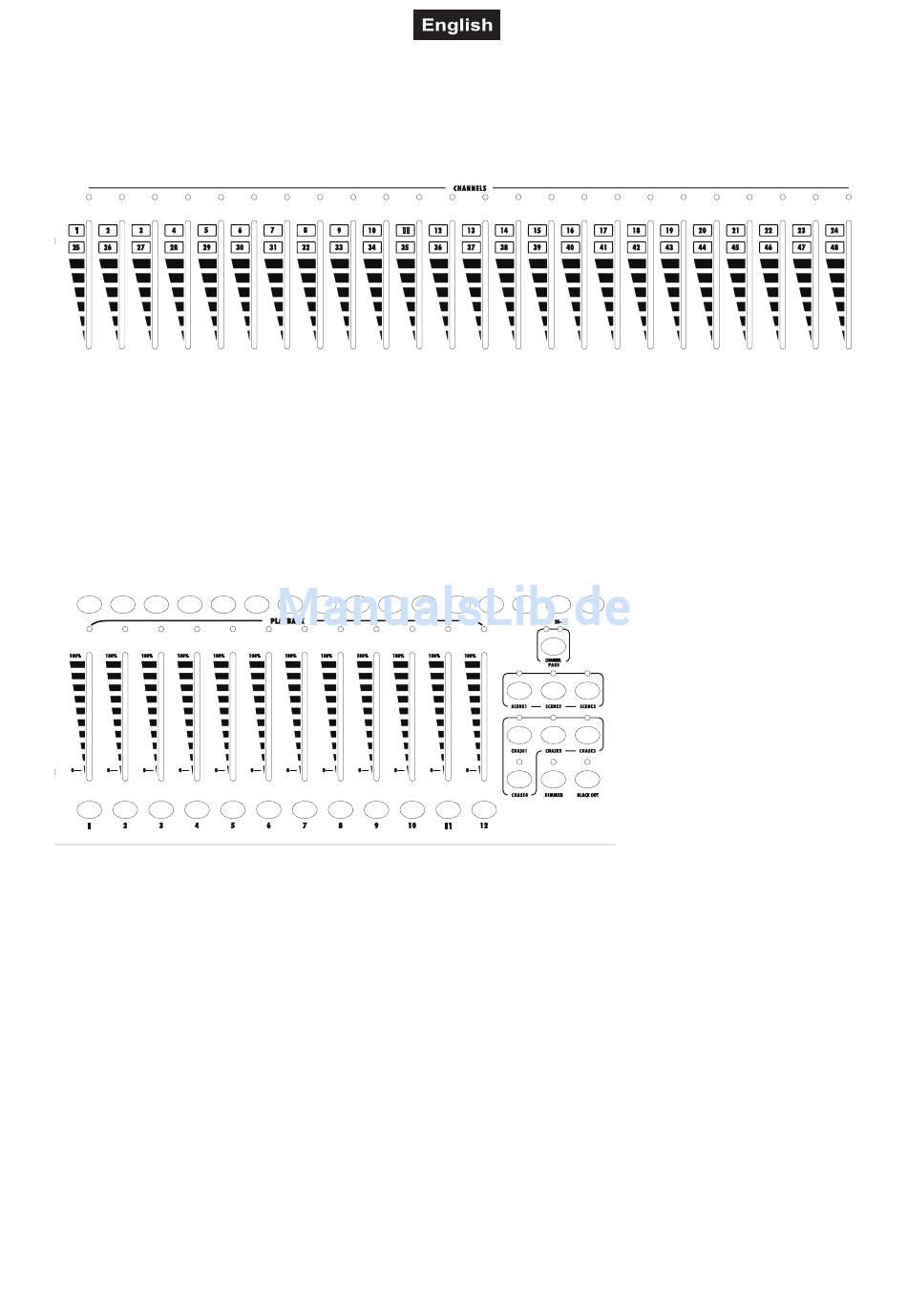

In the Channels-section, you can find 24 channel sliders for controlling up to 48 DMX-channels.
If the connected DMX-device features e. g. 5 DMX-channels and the starting adress is 1, you can control this
device via the channel-faders 1-5.
Select the desired DMX-channels via the Channel Page-button. If the 1-24 LED is lit, the DMX-channels 1-24
are active, if the 25-48 LED is lit, the DMX-channels 25-48 are active.
Push the channel-faders to the desired setting.
Push the Masterfader to maximum so that the settings will be transmitted to the connected DMX-devices.
Please note: When the Masterfader is set to 0 or the Blackout-button is pressed the connected DMX-
devices do NOT react!
In the Playback-section, you can find 12 Playback-faders for calling up to 36 scenes.
Please note: The controller comes without pre-programmed scenes/chasers. These must first be
programmed by the user.
Select the desired scenes via the respective Scene-button. If the Scene 1 LED is lit, the scenes 1-12 are
active, if the Scene 2 LED is lit, the scenes 13-24 are active, if the Scene 3 LED is lit, the scenes 25-36 are
active.
Call up the desired scene by pushing the respective Playback-fader.
The same 12 Playback-faders can be used for calling up to 48 chasers.
Select the desired chasers via the respective Chaser-button. If the Chaser 1 LED is lit, the chasers 1-12 are
active, if the Chaser 2 LED is lit, the chasers 13-24 are active, if the Chaser 3 LED is lit, the chasers 25-36
are active, if the Chaser 4 LED is lit, the chasers 37-48 are active.
Call up the desired chaser by pushing the respective Playback-fader.
Blackout-Mode
Press the Blackout-button and all devices will be set to Blackout-mode.
