18) FADE TIME SLIDER
Move to adjust fade time.
19) MASTERFADER
The slider will adjust the general output.

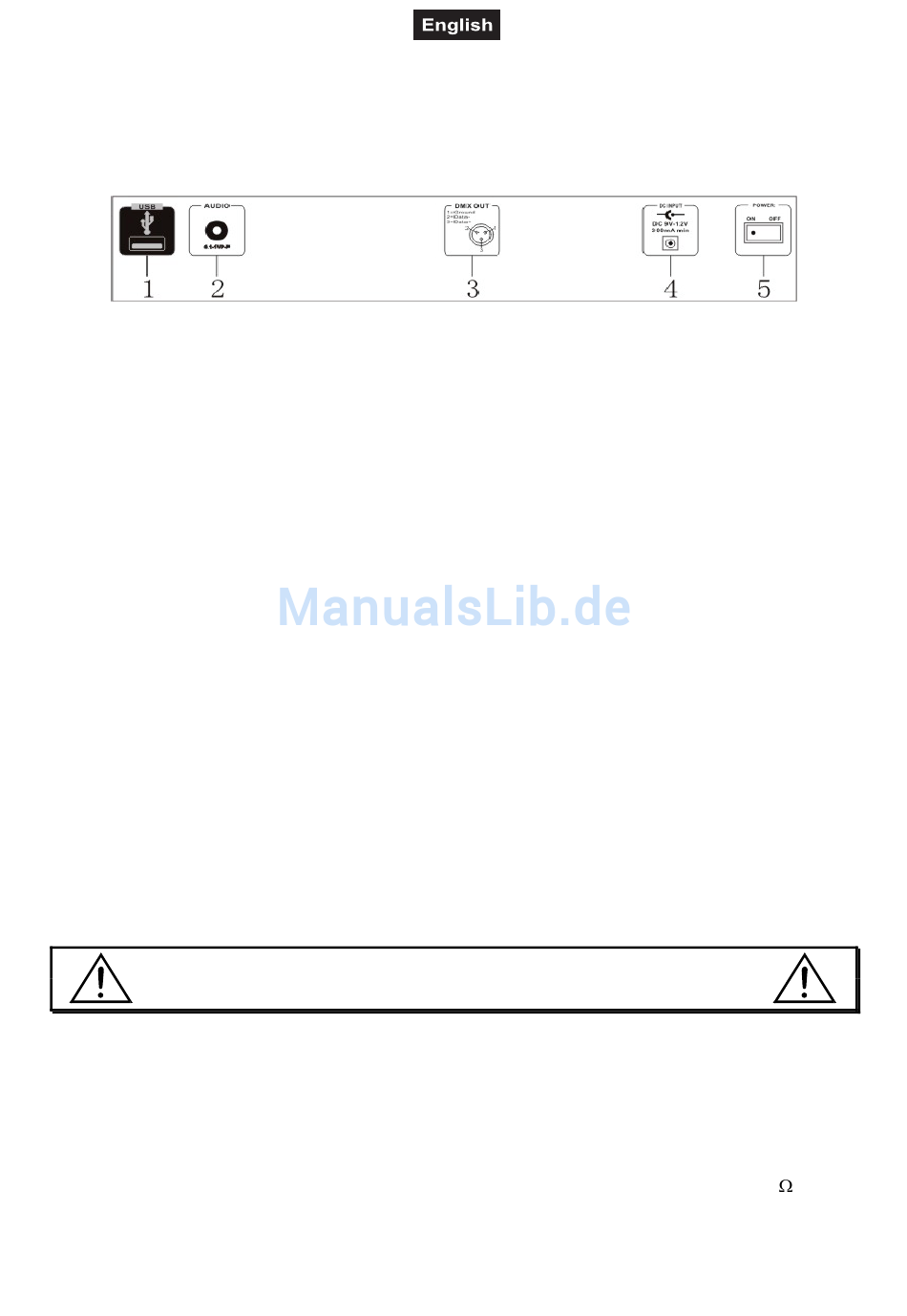

Rear panel:
1) USB socket
2) AUDIO IN socket
3) DMX output socket
4) DC IN socket
5) Power switch

5. SETUP

5.1 Installation
Install the device on a plane surface or install it in a rack.
Rack-installation: This device is built for 19" racks (483 mm). The rack you use should be a Double-Door-
Rack where you can open the frontpanel and the rear panel. The rack should be provided with a cooling fan.
When mounting the controller into the rack, please make sure that there is enough space around the device
so that the heated air can be passed on. Steady overheating will damage your device.
You can fix the controller with four screws M6 in the rack.
Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.
5.2 Sound-control
The sound-control works via the built-in microphone or via the Line In socket. Connect the sound-signal from
the mixer (e.g. Master 2) with the RCA-socket on the rear panel (input sensitivity 0.1 V - 1 V).
5.3 Connection with the dimmerpacks
DMX-512:
The wires must not come into contact with each other, otherwise
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Building a serial DMX-chain:
Connect the DMX-output of the DMX Commander with the DMX-input of the nearest dimmerpack. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
the fixtures will not work at all, or will not work properly.
15/20
resistor
