Monitor unit with touchscreen

4.7

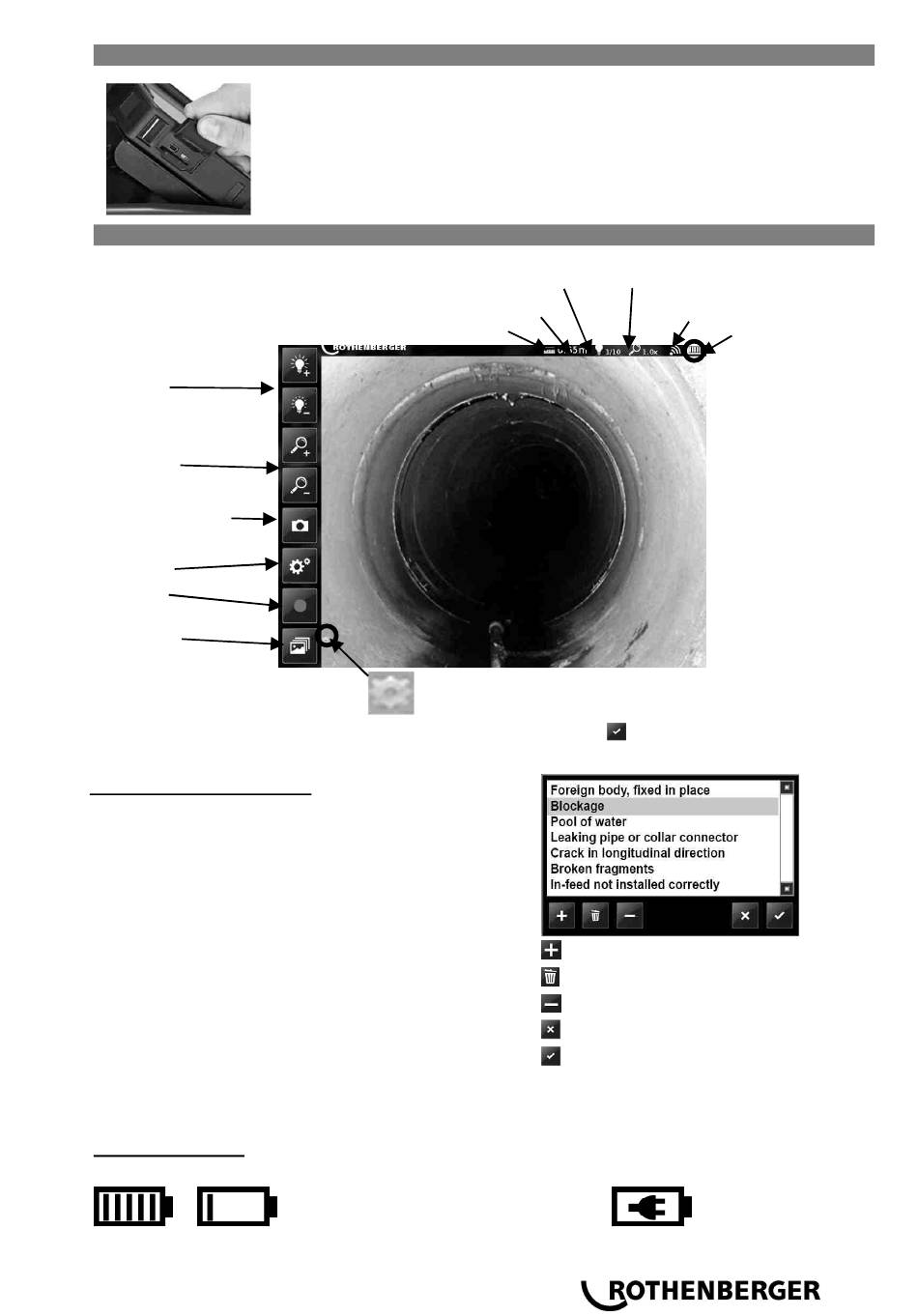

User interface start up screen

Meter counter ( Reset by touching)
LED +/-
Zoom +/-
Picture / Video
Settings
Record
Photo / Video
Gallery
Choose the type of damage in the damage catalog and confirm
bottom of the screen, and also by saving images/videos:
Setting up damage catalog:
- Foreign body, free
- Blockage
- Pool of water
- Leaking pipe or collar connector
- Crack in longitudinal direction
- Crack in transverse direction
- Broken fragments
- In-feed not installed correctly
- Laid incorrectly
- Wear, mechanical
- Wear, corrosive
- Encrustation
- Deformation
Battery Indicator:
Colour white:
to
tion
The ROCAM 4 Plus comes with a 4GB SD card to save photo's and
video's. This can be removed for data transfer.
Connections Micro-HDMI, mini USB and SD card are on the side of the
monitor unit.
Only use a screened USB cable to make a connection between ROCAM
4 Plus and a computer!
LED Indicator (1 – 10)
Cable measurement (Ft. / Meter)
open damage catalog
Up to 100%, up to 20% battery capacity,
ENGLISH
Zoom Indicator (1.0 – 2.0)
Wi-Fi Indicator (on/off)
. This will be shown in the left
Add a new damage
Delete damage
switch off damage
back
confirm
mains network opera-
Battery Indicator
