Commissioning And Test Run; Motorcontroller Fully Installed, Without Operating Power - Window Master Wcc 106Bt Installationsanleitung

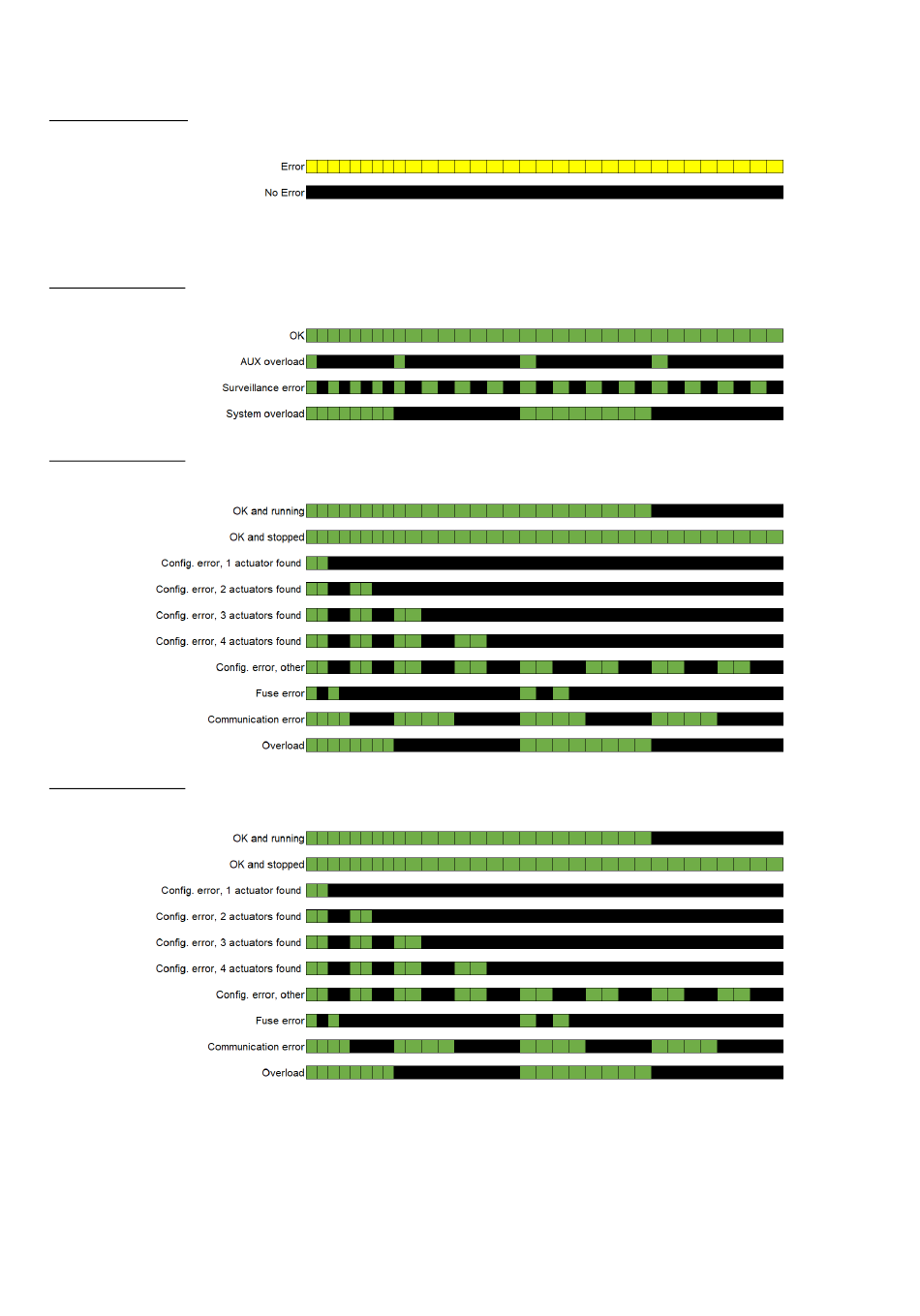

Yellow diode – LED 1
If the yellow diode lights, this indicates an error on the MotorController.
Black = diode off
Error indicator on the yellow diode is a total errors indicator. Detailed information on the error type can be decoded on the green
diode.
Green diode – LED 2
If the green diode LED 2 (closest to X10) blinks, this indicates the error on the MotorController.
Black = diode off
Green diode – LED 3
The green diode LED 3 (furthest away from X8) indicates status of or error on the motor line #2.
Black = diode off
Green diode – LED 4
The green diode LED 4 (closest to X8) indicates status of or error on the motor line #1.
Black = diode off

Commissioning and test run

13
In the event of error messages, refer to chapter "Status and troubleshooting via LED on the MotorController".
13.1

MotorController fully installed, without operating power

1. Check all mechanical and electrical components for damage.
2. Check all screw and plug connections for tightness and/or firm seating.
3. Check that all external components are installed; check polarity for the ±24V actuators
16
