DIP Description on the
switch MotorControlleren
8 ML 2, motors run
independently

Remote control

11

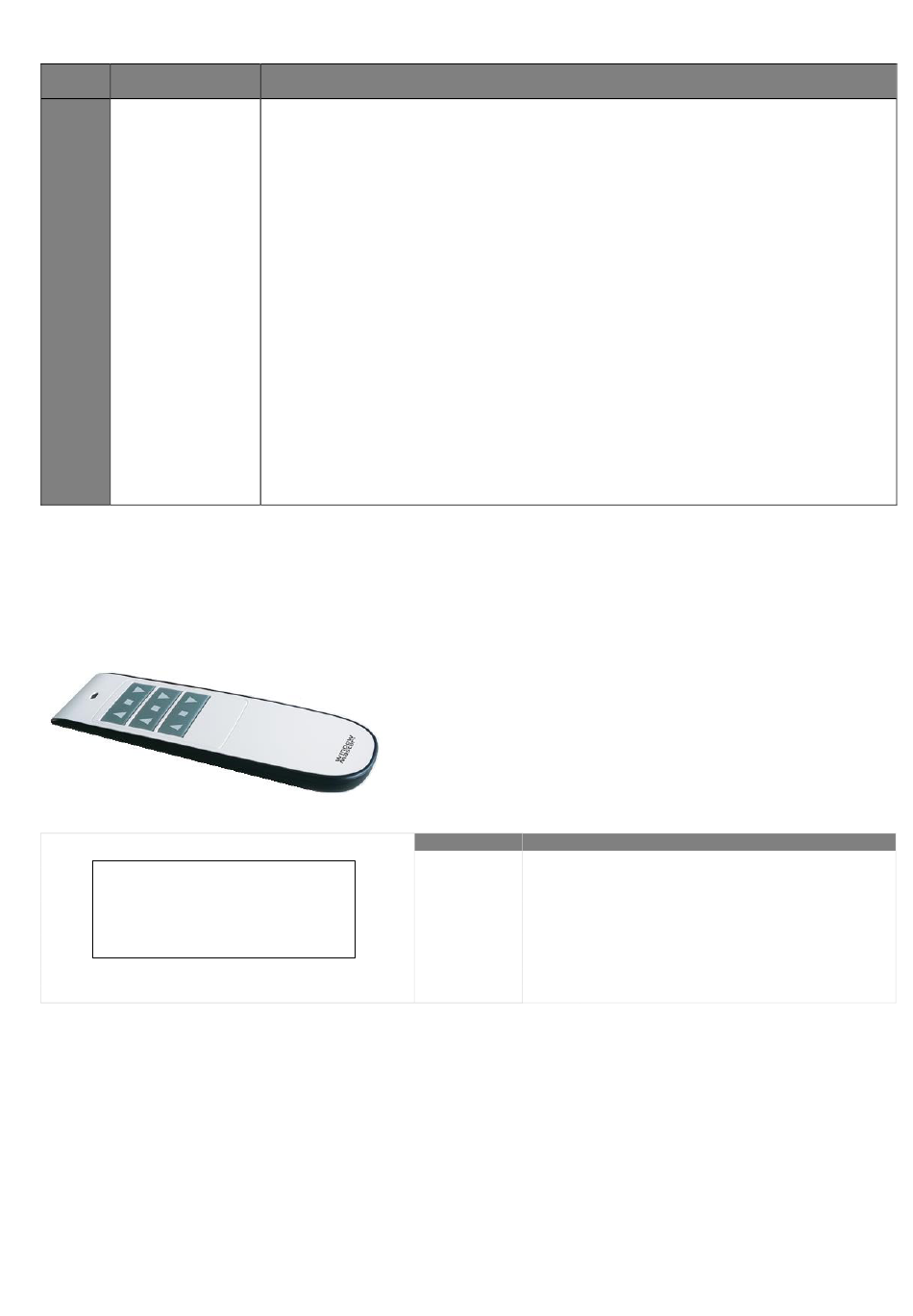

The WCC 106BT is supplied with a remote control for controlling (opening and closing) the window actuators, which are connected
to the MotorController.
The remote control has an operation range up too 50m outside and 10m inside.
Physical barriers such as walls, cabinets etc. will reduce the operation range.
Button and key functions on the remote control
#1 #2
#4 #5
#7 #8
Button and key function overview
A short blink on the remote control's green LED indicates that the command from the remote control to the MotorController has
been received by the MotorController.
A short blink on the remote control's red LED indicate that the command from the remote control to the MotorController has not
been received by the MotorController.
ON: the actuators on motor line 2 are controlled individually via input X2, X3, X4 and X5.
Up to 4 actuators can be connected to motor line 2 and all actuators must be single / -1
actuators.
The actuator's serial number determines, which input controls which actuator, the serial
number is automatically identified by the firmware in the MotorController.
X2 – controls the actuator with the highest serial number
X3 – controls the actuator with the second-highest serial number
X4 – controls the actuator with the second-lowest serial number
X5 – controls the actuator with the lowest serial number
The actuators can be identified by activating the different inputs.
The serial number can also be read on the product label on the actuator.
Actuators on motor line 1 are controlled together via input X10. Up to 4 actuators can be
connected to motor line 1. All actuators on motor line 1 must be of the same type, incl. team
size and chain length. The actuators must be either single /-1 or quad /-4.
All connected actuators on both motor lines must be MotorLink® actuators and DIP switch #5
must also be set to ON.
This DIP switch setting does not influence how the actuators on the two motor lines are
controlled via the remote control.
OFF: 2 Motor groups with a motor line each
The remote control has 3 buttons, each with 3 keys (functions) –
OPEN, STOP and CLOSE.
Key number
#3
#6
#9
DIP switch position
Function
#1 Open Actuators connected to motor line #1 open
#2 Stop Actuators connected to motor line #1 stop
#3 Close Actuators connected to motor line #1 close
#4 Open Actuators connected to motor line #2 open
#5 Stop Actuators connected to motor line #2 stop
#6 Close Actuators connected to motor line #2 close
#7 Open All actuators connected to WCC 106BT open
#8 Stop All actuators connected to WCC 106BT stop
#9 Close All actuators connected to WCC 106BT close
